Wago 279-620/281-408

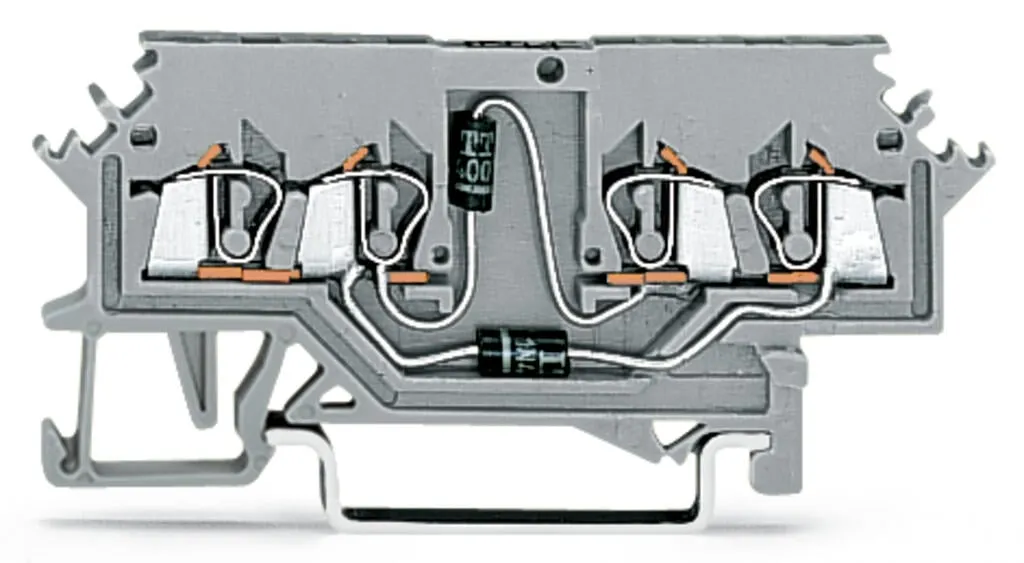

Component terminal block with diode, 279 Series, grayEasily, quickly and safely connect conductors with this component terminal block with diode (item number 279-620/281-408). Strip lengths must be be…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Component terminal block with diode, 279 Series, grayEasily, quickly and safely connect conductors with this component terminal block with diode (item number 279-620/281-408). Strip lengths must be between 8 and 9 mm when connecting conductors to this component terminal block with diode. This product incorporates conductor terminals and utilizes CAGE CLAMP®. Our highly-rated and maintenance-free CAGE CLAMP® connection makes it easy to connect all conductor types without having to prepare the conductor. For example, you don’t need to crimp ferrules. This component terminal block with diode is suitable for conductor cross sections ranging from 0.08 mm² to 1.5 mm².
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60947-7-1 |
|---|---|
| Rated current | 0.5 A |
| Ratings per | IEC/EN 60947-7-1 / IEC/EN 60947-7-1 / IEC/EN 60947-7-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
Electrical data - General information
| Nominal voltage | 60 V |
|---|---|
| Reverse voltage | 1,000 V |
| Number/type of diode/LED | with 2 1N4007 diodes |
| Wiring direction | Front-entry wiring |
Connection data
| Clamping units | 4 |
|---|---|
| Total number of potentials | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Fine-stranded conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Wiring direction | Front-entry wiring |
Physical data
| Width | 4 mm / 0.157 inches |
|---|---|
| Height | 68 mm / 2.677 inches |
| Depth from upper-edge of DIN-rail | 27 mm / 1.063 inches |
Mechanical data
| Design | horizontal type |
|---|---|
| Mounting type | DIN-35 rail |
| Marking level | Side marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.134 MJ |
| Weight | 6.1 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
|---|---|
| PU (SPU) | 100 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454193843 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-27 |
| eCl@ss 9.0 | 27-14-11-27 |
| ETIM 9.0 | EC000903 |
| ETIM 10.0 | EC000903 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(a) |
| SCIP notification number (Austria) | 34e5e18c-f73c-4b58-8ae8-afcd061fe65b |
| SCIP notification number (Belgium) | fcf3a6c3-3b38-489a-b57f-966aab6a5326 |
| SCIP notification number (Bulgaria) | 1ca5e3b6-cbbb-402d-9034-e0a50895ed6a |
| SCIP notification number (Czech Republic) | a8e81e6c-6868-49d3-b28e-882b62ed4182 |
| SCIP notification number (Denmark) | b3aa8942-1af0-4fe2-9110-3d019f0e2882 |
| SCIP notification number (Finland) | 6c47dc28-336e-44ab-86bf-eaebcf9d98ad |
| SCIP notification number (France) | acac9b2d-492f-47c3-ad90-f9d36f8c6fd6 |
| SCIP notification number (Germany) | 2d44d70a-82e2-43c1-ac13-6188051f1df4 |
| SCIP notification number (Hungary) | 68be0205-1a57-4523-99c1-eb7b3caee9ee |
| SCIP notification number (Italy) | 9b1b13e8-654d-4b7e-9b1f-74d64b4ce231 |
| SCIP notification number (Netherlands) | 683e30fa-0452-4c13-9fad-6a8efa0fa84c |
| SCIP notification number (Poland) | fff0c7dc-4a6a-474b-ae63-85c922ed899d |
| SCIP notification number (Romania) | d3721215-5ad9-4916-b105-8daddfcab0bc |
| SCIP notification number (Sweden) | d02b9f5d-e4c3-4043-8e39-f42eeba208e4 |
