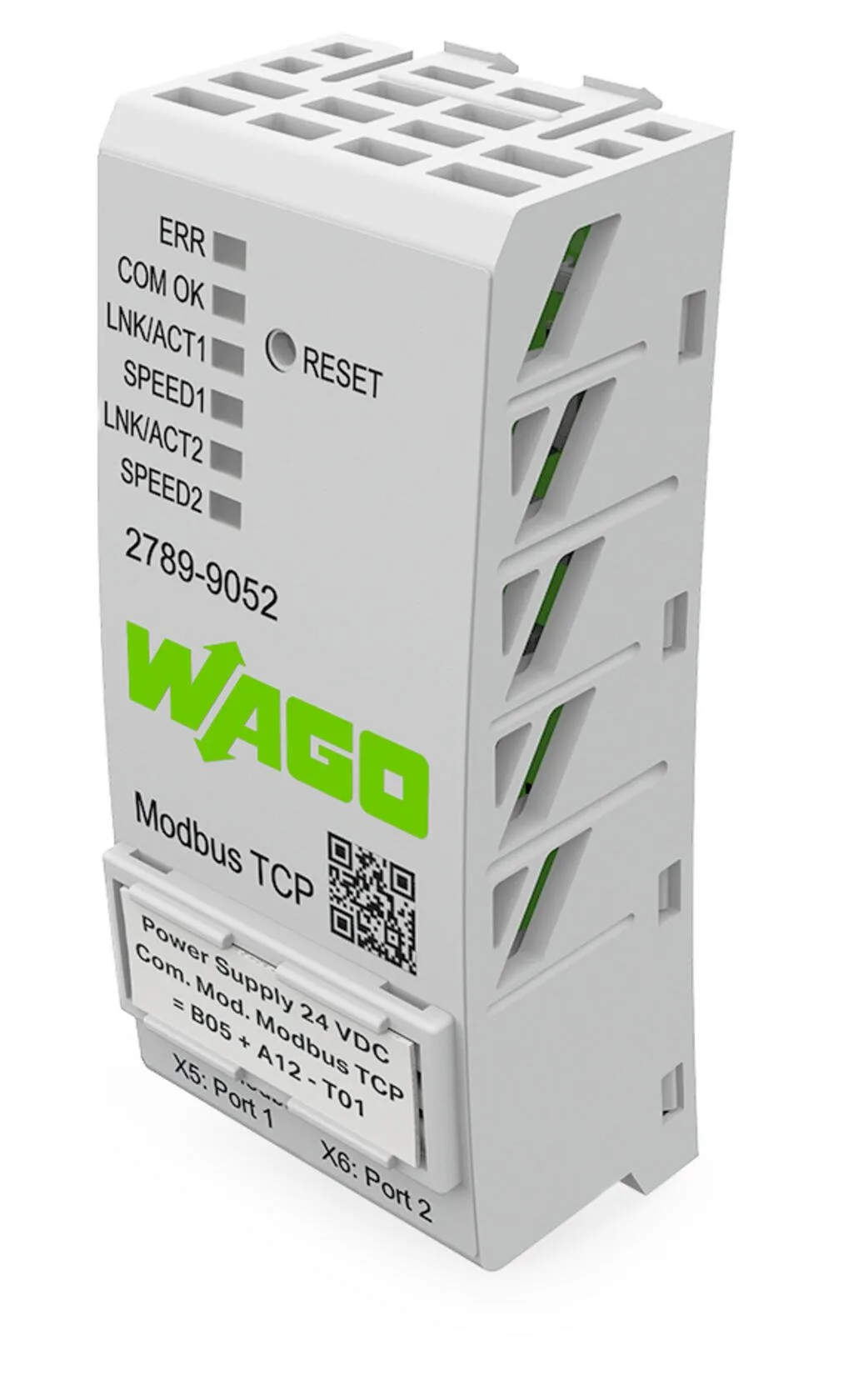

Wago 2789-9052
Features:WAGO’s communication module snaps onto a Pro 2 Power Supply’s communication interface.Modbus TCP/UDPSuitable for monitoring the subordinate power supplyFunction blocks for standard control sy…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Features:WAGO’s communication module snaps onto a Pro 2 Power Supply’s communication interface.Modbus TCP/UDPSuitable for monitoring the subordinate power supplyFunction blocks for standard control systems available upon requestIntegrated ETHERNET switch for convenient wiringMarker slot for WAGO marking cards (WMB) and WAGO marking strips
Specification
Technical data - Input
| Nominal input voltage U<sub>i nom</sub> | 5 VDC (SELV) |
|---|---|
| Nominal input current at U<sub>N</sub> | 250 mA (max.) |
Technical data - Signaling and communication
| Signaling | 1 x ERR LED (red), 1 x COM OK LED (green), 1 x LED LNK/ACTx (green), 1 x LED SPEEDx (orange) |
|---|---|
| Communications | Modbus (TCP, UDP) |
| ETHERNET protocols | HTTP(S), BootP, DHCP, SNTP |
| Configuration options | Web-Based Management |
| Visualization | Web-Visu |
| Transmission rate | 100 MBd (ETHERNET: 10/100 Mbit/s) |
| Transmission medium (communication/fieldbus) | ETHERNET: Twisted pair S-UTP; 100 Ω; Cat. 5 |
Safety and protection
| Test voltage (fieldbus) | 0.775 kVAC; 50 Hz; 1 min |
|---|---|
| Protection class | III |
| Insulation type | Functional insulation |
| Protection type | IP20; per EN 60529 |
| Overvoltage category | III |
| Pollution degree | 2 |
Connection data
| Cable length (max.) | 100 m |
|---|---|
| Transmission medium | ETHERNET: Twisted pair S-UTP; 100 Ω; Cat. 5 |
Connection data - Connection 1
| Connection type | Modbus TCP/UDP |
|---|---|
| Pluggable connector | 2 x RJ-45 |
Physical data
| Width | 35 mm / 1.378 inches |
|---|---|
| Height | 80 mm / 3.15 inches |
| Depth | 22 mm / 0.866 inches |
| Note (dimensions) | Depth in mounted state |
Mechanical data
| Mounting type | Snaps onto the communication interface (X4) of a Pro 2 Power Supply |
|---|
Material data
| Weight | 45 g |
|---|
Environmental requirements
| Ambient temperature (operation) | -40 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Relative humidity | 5 … 95 % (no condensation permissible) |
| Operating altitude (max.) | 5000 m |
Standards and specifications
| Conformity marking | CE |
|---|---|
| Standards/specifications | EN 61010-1, EN 61010-2-201, EN 61204-3, UL 61010-1, UL 61010-2-201 |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| Customs tariff number | 85176200000 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| ETIM 9.0 | EC002498 |
| ETIM 10.0 | EC002498 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 7(c)-I |
| SCIP notification number (Austria) | acbc0842-2ce0-4cb5-8937-58ec4dcf0201 |
| SCIP notification number (Belgium) | 323751ce-369b-4540-9255-6391886239f1 |
| SCIP notification number (Bulgaria) | 55cae6ed-f4d9-473c-81f5-d84e5f9d8cbe |
| SCIP notification number (Czech Republic) | ac32af1c-e59c-44f7-95b1-3069a891362b |
| SCIP notification number (Denmark) | 05d8d292-9bdc-4f63-8ed6-340a570c96f5 |
| SCIP notification number (Finland) | c23f4e18-e1f6-4b32-b790-f1329545fbd2 |
| SCIP notification number (France) | 8786d695-c1bb-48c0-8db9-ae73a81863dc |
| SCIP notification number (Germany) | 951e6b14-80f4-413e-be75-86b589d7ef70 |
| SCIP notification number (Hungary) | 6ac748de-366b-4fde-ae16-b4ec1a9dae6f |
| SCIP notification number (Italy) | 69f1b12f-a721-4305-96a8-be7453ae705d |
| SCIP notification number (Netherlands) | 9156a981-d436-406b-94e7-77018ef57636 |
| SCIP notification number (Poland) | 0b277272-cc14-414d-87c1-07780443d0f0 |
| SCIP notification number (Romania) | d016d543-b96c-4cf9-83f3-0342cff692fb |
| SCIP notification number (Sweden) | 6f81c7fa-cbd1-4438-abc6-d0a2a8c69ba8 |
