Wago 2773-2401

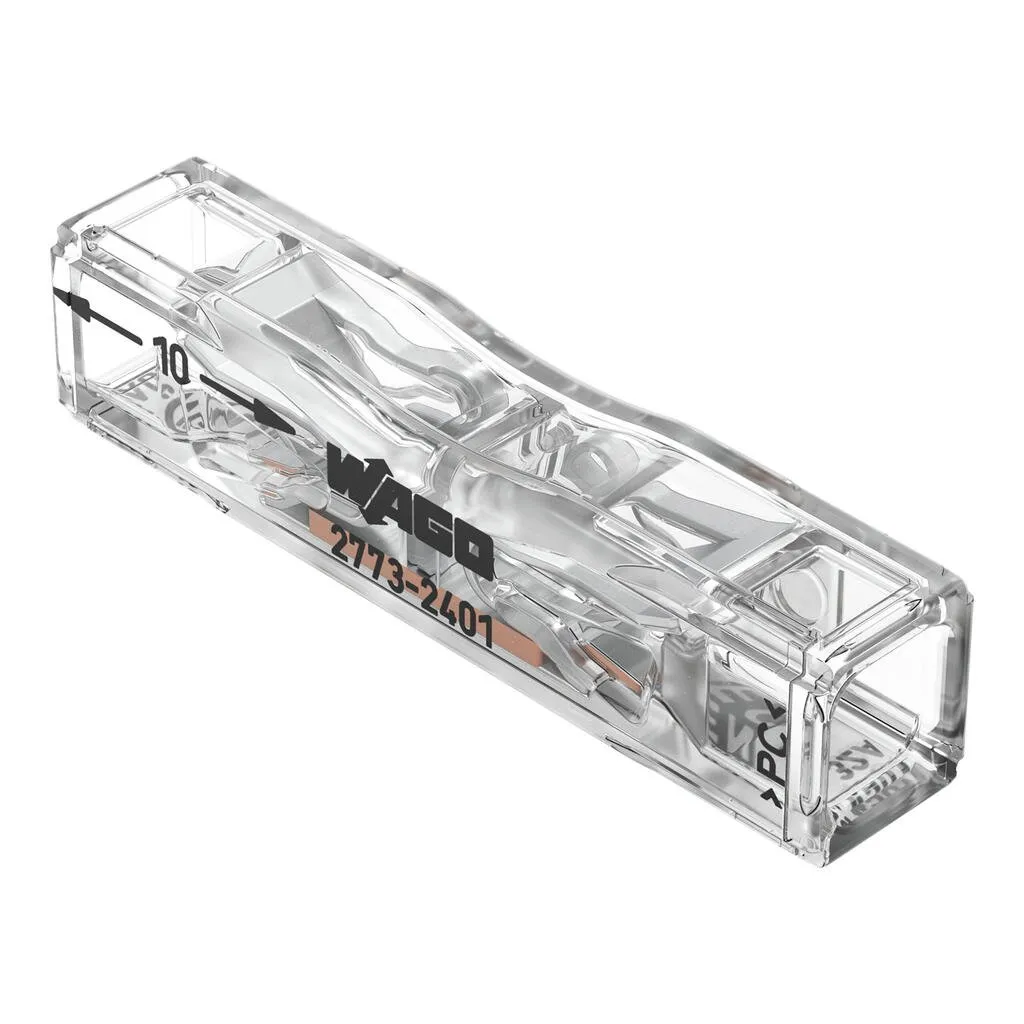

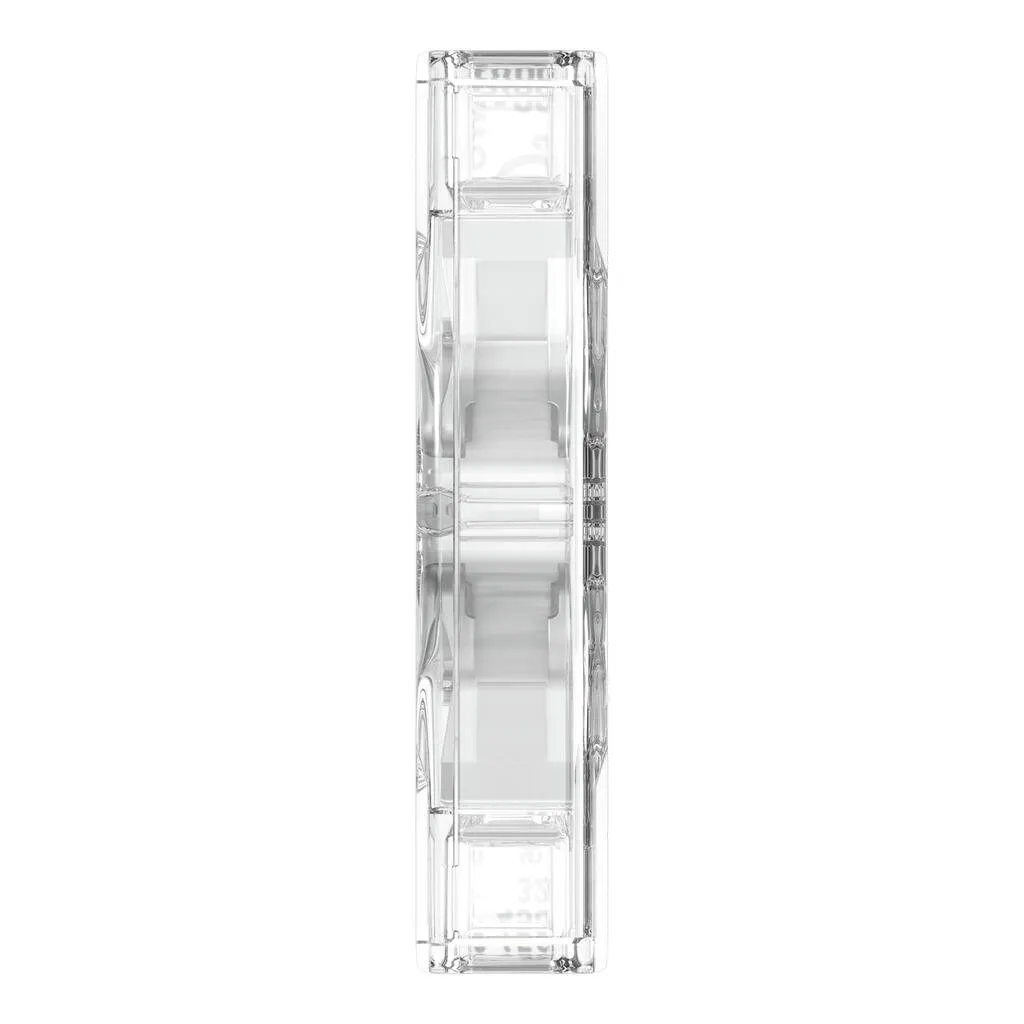

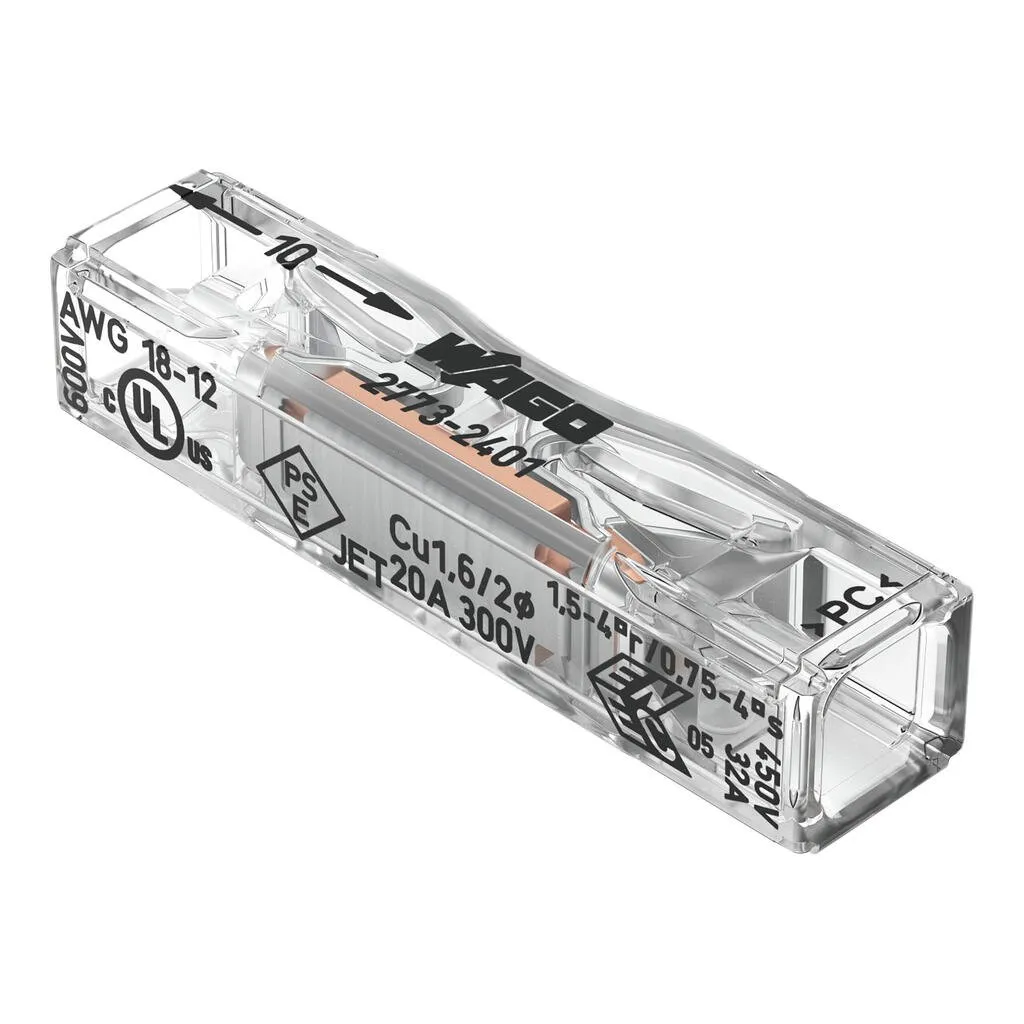

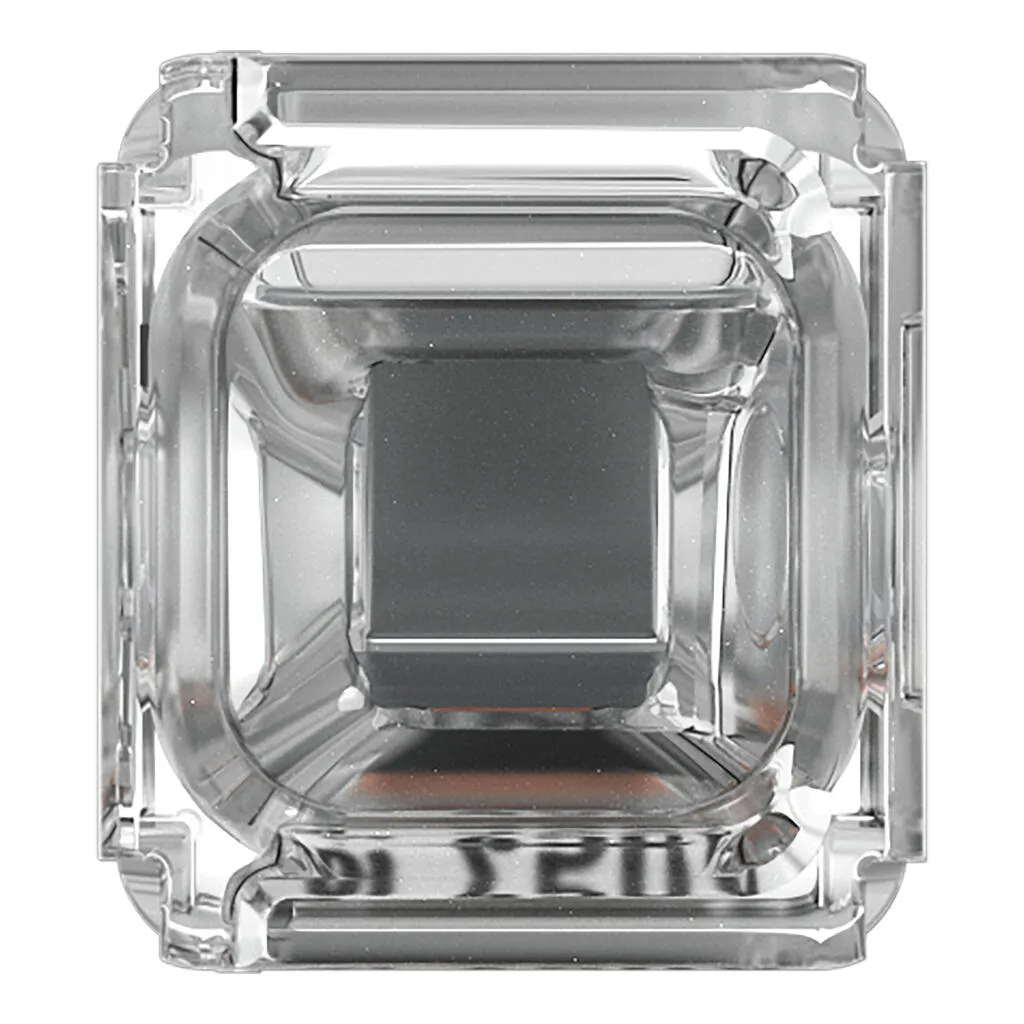

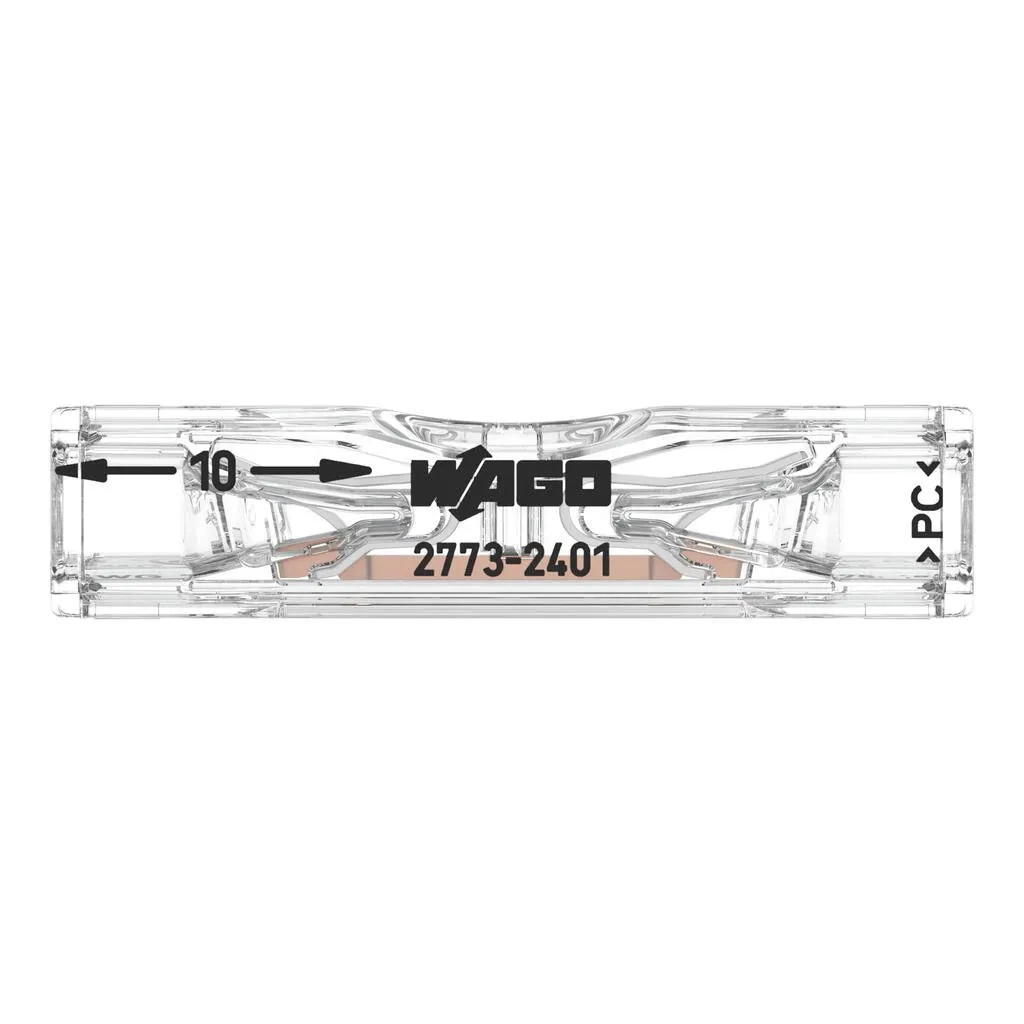

Push wire® inline splicing connector, 2773 Series, transparentSeamless electrical installations are guaranteed with push wire® inline splicing connector (item number 2773-2401). This series of PUSH WI…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Push wire® inline splicing connector, 2773 Series, transparentSeamless electrical installations are guaranteed with push wire® inline splicing connector (item number 2773-2401). This series of PUSH WIRE® connectors ensures safe and quick connections in both surface-mounted and flush-mounted junction boxes in any building, regardless of installation complexity. Conductors should only be connected to push wire® inline splicing connector if their strip length is between 10 and 11 mm . Our splicing connector is rated for 450 V and is designed for use with a rated current of up to 32 A. It is therefore suitable for high-load applications. This product features conductor terminals and utilizes PUSH WIRE®. Our PUSH WIRE® connection is the quick and easy method for connecting solid conductors. The dimensions are (6.15 x 6.8 x 29.5) mm (width x height x depth). Depending on the conductor type, push wire® inline splicing connector is designed for conductor cross sections ranging from 0.75 mm² to 4 mm².The contact surface is coated with tin.
Specification
Notes
| General safety information | NOTICE: Observe installation and safety instructions!Only to be used by electricians!Do not work under voltage/load!Use only for proper use!Observe national regulations/standards/guidelines!Observe technical specifications for the products!Observe the number of permissible potentials!Do not use damaged/dirty components!Observe conductor types, cross-sections and strip lengths!Insert conductor until it hits the product‘s backstop!Use original accessories!Only reusable with solid conductors!To be sold only with installation instructions! |
|---|
Electrical data - Ratings per IEC/EN
| Ratings per | EN 60664 |
|---|---|
| Nominal voltage (II/2) | 450 V |
| Rated impulse withstand voltage (II/2) | 4 kV |
| Rated current | 32 A |
| Legend (ratings) | (II / 2) ≙ Overvoltage category II / Pollution degree 2 |
| Ratings per | EN 60664 / EN 60664 / EN 60664 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 450 V |
| Rated impulse withstand voltage | 4 kV |
| Rated current | 32 A |
Electrical data - Ratings per UL
| Approvals per | UL 486C |
|---|---|
| Rated voltage UL (Use Group C) | 600 V |
| Rated current UL (Use Group C) | 20 A |
| Approvals per | UL 486C / UL 486C / UL 486C |
| Use group | B / C / D |
| Rated voltage | 600 V |
| Rated current | 20 A |
Electrical data - General information
| Wiring direction | Side-entry wiring |
|---|
Connection data
| Clamping units | 2 |
|---|---|
| Total number of potentials | 1 |
Connection data - Connection 1
| Connection technology | PUSH WIRE® |
|---|---|
| Actuation type | Push-in |
| Solid conductor | 0.75 … 4 mm² / 18 … 12 AWG |
| Stranded conductor | 1.5 … 4 mm² |
| Fine-stranded conductor; with insulated ferrule | 0.75 … 1.5 mm² / 18 … 16 AWG |
| Fine-stranded conductor; with uninsulated ferrule | 1 … 1.5 mm² / 16 AWG |
| Conductor diameter | 1.6 … 2 mm / 18 … 12 AWG |
| Strip length | 10 … 11 mm / 0.39 … 0.43 inches |
| Wiring direction | Side-entry wiring |
Physical data
| Width | 6.15 mm / 0.242 inches |
|---|---|
| Height | 6.8 mm / 0.268 inches |

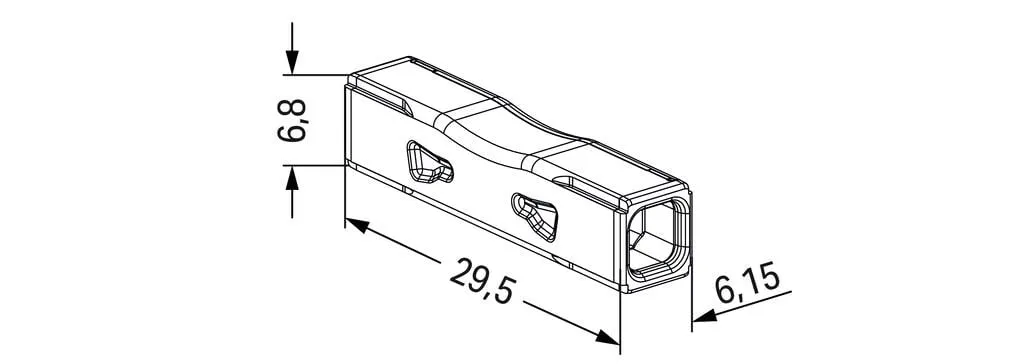

| Depth | 29.5 mm / 1.161 inches |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | transparent |
| Cover color | transparent |
| Material group | IIIa |
| Insulation material (main housing) | Polycarbonate (PC) |
| Flammability class per UL94 | V2 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin |
| Fire load | 0.038 MJ |
| Weight of insulation material | 0.8 g |
| Weight | 1.4 g |
Environmental requirements
| Ambient temperature (operation) | +85 °C |
|---|---|
| Processing temperature | -35 … +60 °C |
| Continuous operating temperature | 105 °C |
Commercial data
| PU (SPU) | 1000 (100) pcs |
|---|---|
| Packaging type | Box |
| Country of origin | CH |
| GTIN | 4066966321630 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121409 |
|---|---|
| ETIM 9.0 | EC000446 |
| ETIM 10.0 | EC000446 |
| ECCN | NO US CLASSIFICATION |
