Wago 2734-533

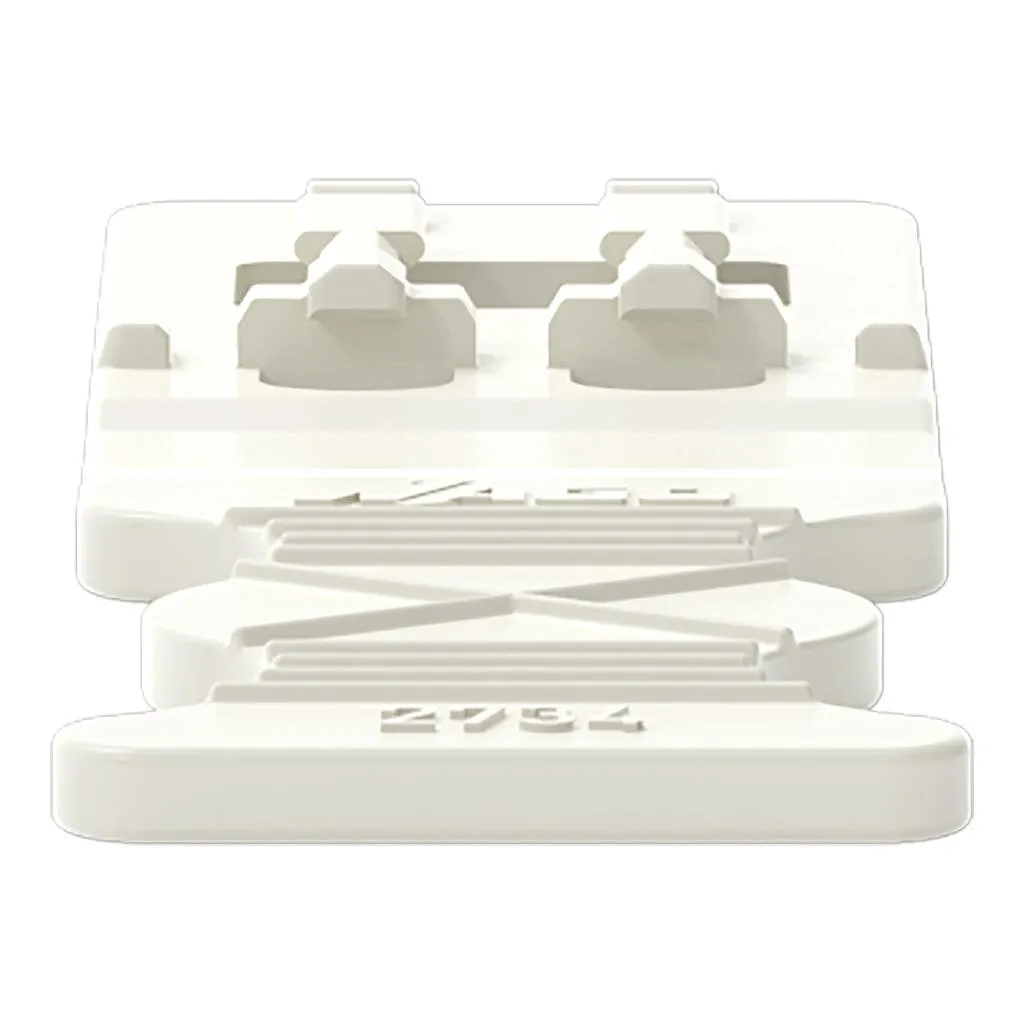

Strain relief plate; for female connectors; 9.5 mm wide; 1 part; lever; Pin spacing 3.5 mm; light gray 2734-533
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Strain relief plate; for female connectors; 9.5 mm wide; 1 part; lever; Pin spacing 3.5 mm; light gray 2734-533
Specification

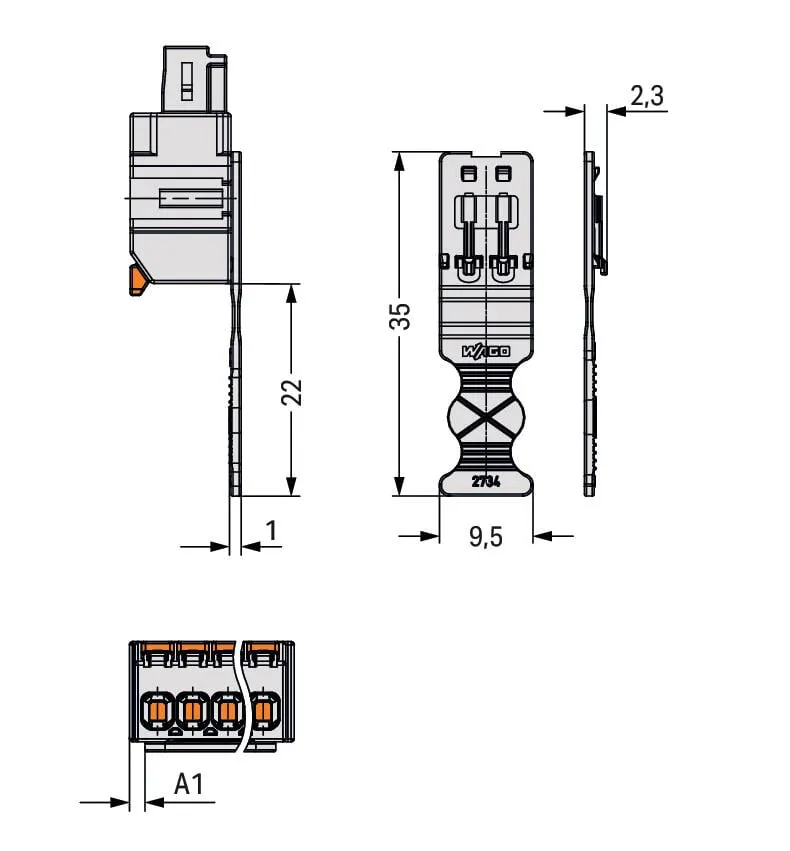

Physical data
| Width | 9.5 mm / 0.374 inches |
|---|---|
| Height | 2.3 mm / 0.091 inches |
| Depth | 35 mm / 1.378 inches |
Mechanical data
| Mounting type | Snap-on |
|---|---|
| Suitable | for 3-pole female connectors with conductor connection and levers |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | light gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.009 MJ |
| Weight | 0.3 g |
Commercial data
| PU (SPU) | 25 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4066966311921 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
