Wago 2724-3824

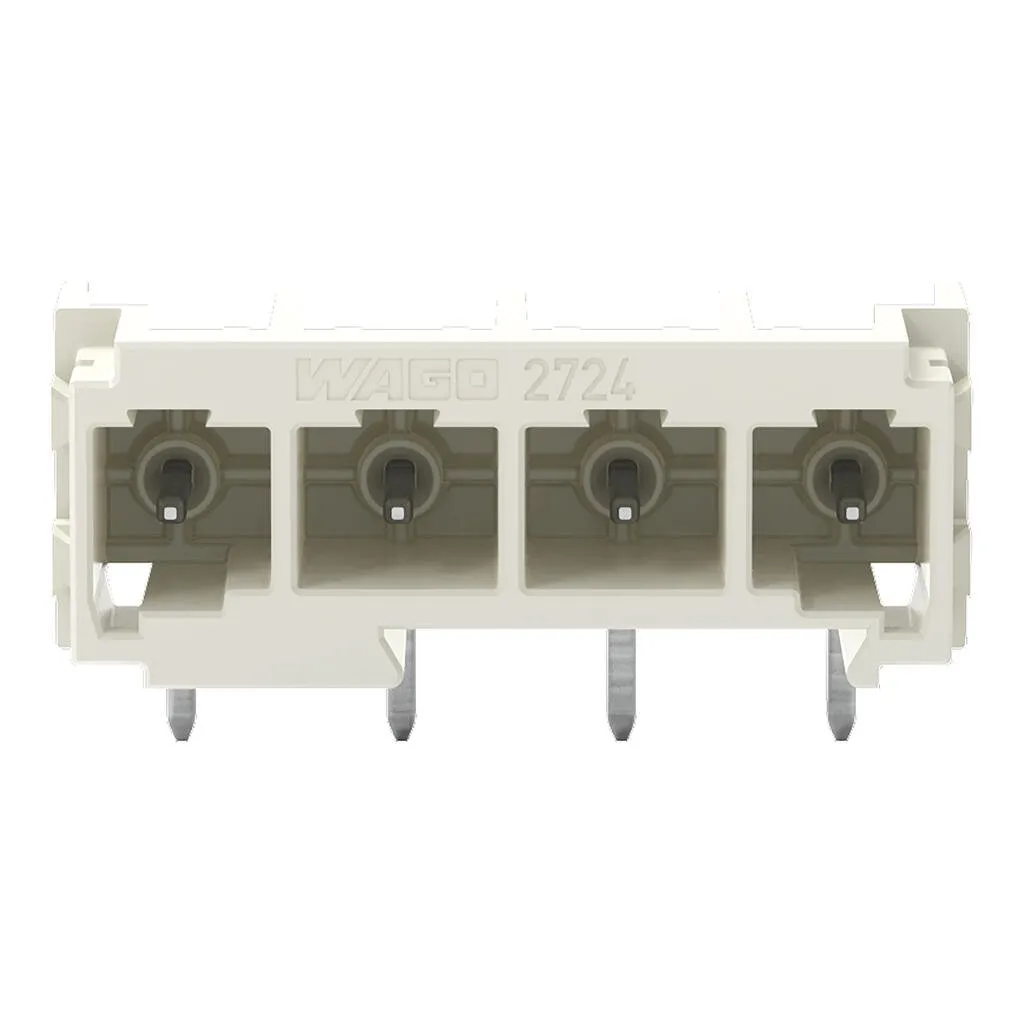

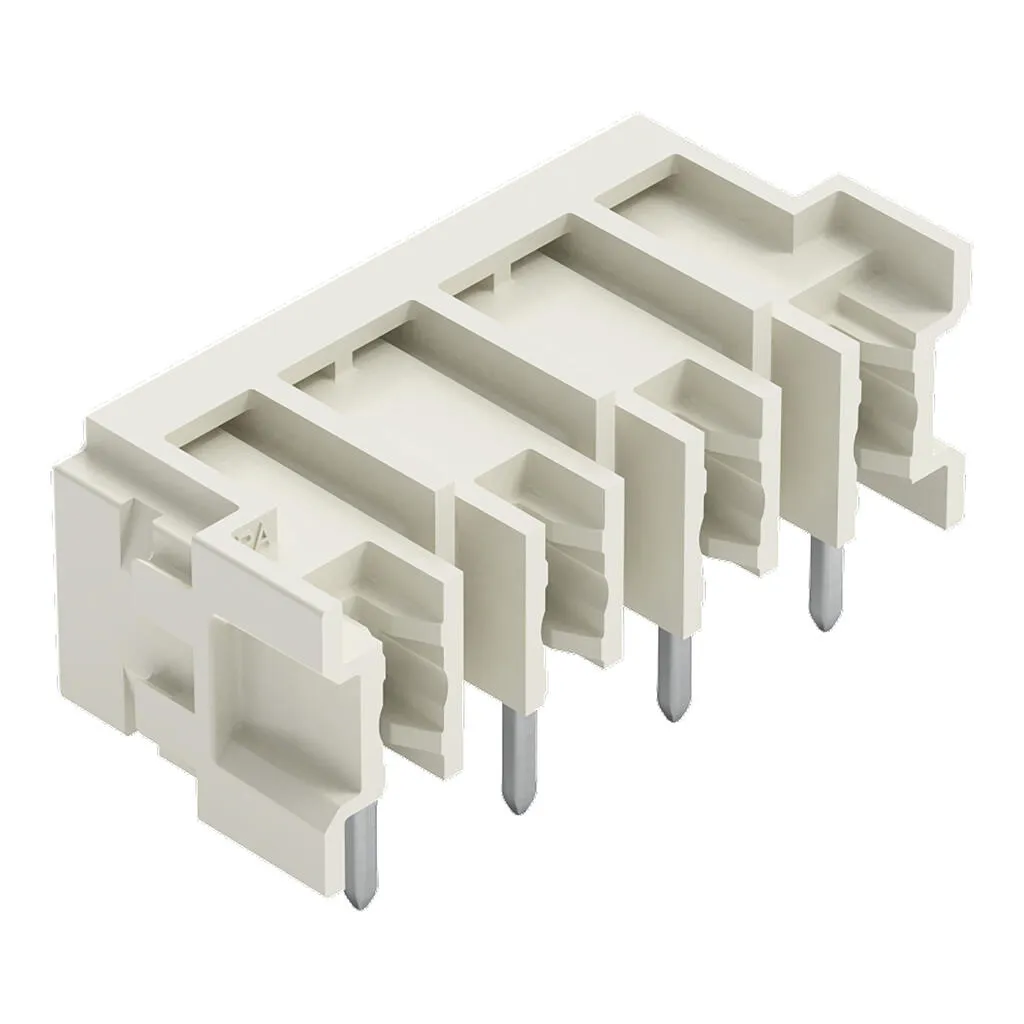

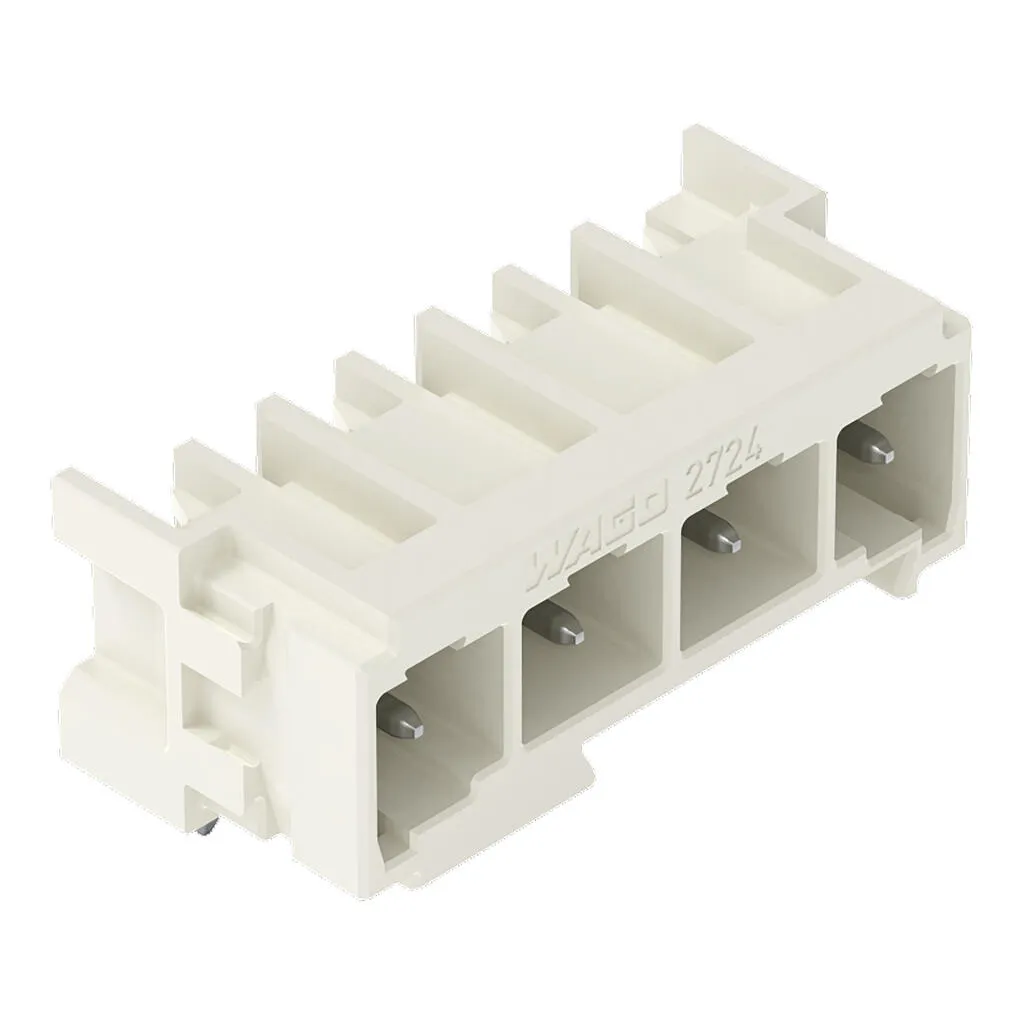

Male connector, 2724 Series, solder pin dimensions 1 x 1 mmOur male connector (item number 2724-3824) simplifies electrical installations. The item’s dimensions are (30.7 x 15.4 x 13.9) mm (width x he…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Male connector, 2724 Series, solder pin dimensions 1 x 1 mmOur male connector (item number 2724-3824) simplifies electrical installations. The item’s dimensions are (30.7 x 15.4 x 13.9) mm (width x height x depth).Tin is used for coating the contact surfaces. THT is used to assemble the pcb connector.
Specification
Notes
| Safety Information | The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. |
|---|---|
| Variants: | Gold-plated or partially gold-plated contact surfaces, Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/. |
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 500 V |
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated voltage (III/2) | 630 V |
| Rated impulse withstand voltage (III/2) | 6 kV |
| Nominal voltage (II/2) | 1000 V |
| Rated impulse withstand voltage (II/2) | 6 kV |
| Rated current | 21 A |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 500 V / 630 V / 1000 V |
| Rated impulse withstand voltage | 6 kV / 6 kV / 6 kV |
| Rated current | 21 A / 21 A / 21 A |
Connection data
| Total number of potentials | 4 |
|---|---|
| Number of connection types | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Pole number | 4 |
|---|

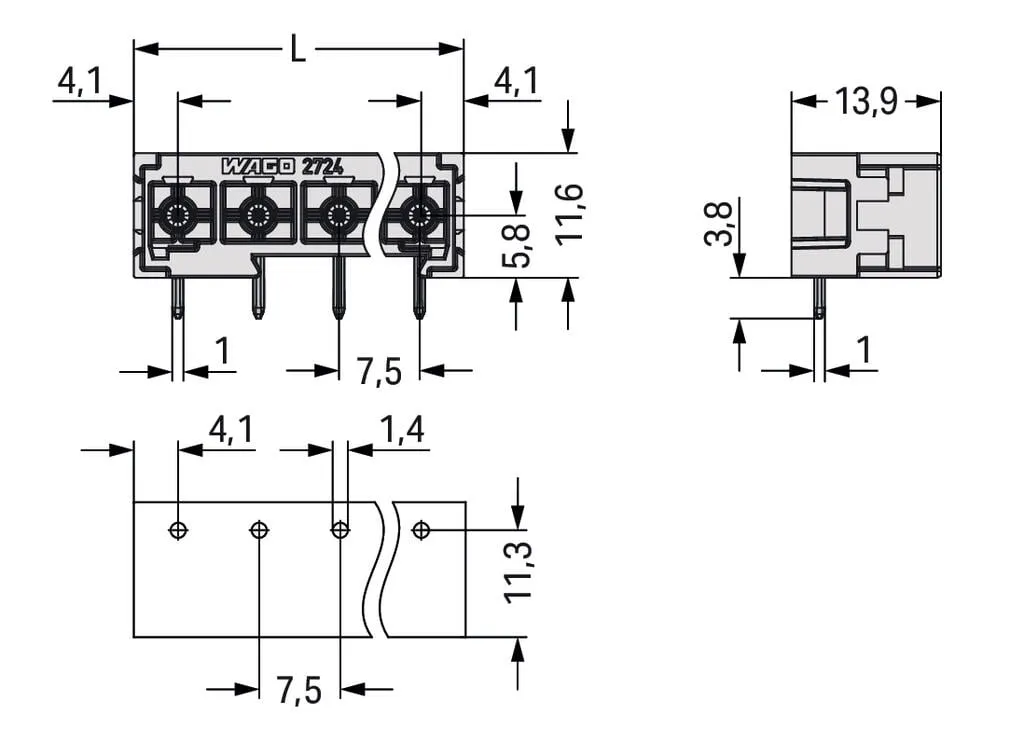

Physical data
| Pin spacing | 7.5 mm / 0.295 inches |
|---|---|
| Width | 30.7 mm / 1.209 inches |
| Height | 15.4 mm / 0.606 inches |
| Height from the surface | 11.6 mm / 0.457 inches |
| Depth | 13.9 mm / 0.547 inches |
| Solder pin length | 3.8 mm |
| Solder pin dimensions | 1 x 1 mm |
| Drilled hole diameter with tolerance | 1.4 (+0.1) mm |
Mechanical data
| Variable coding | Yes |
|---|---|
| Anti-rotation protection | Yes |
Plug-in connection
| Contact type (pluggable connector) | Male connector/plug |
|---|---|
| Connector (connection type) | for PCB |
| Mismating protection | Yes |
| Plugging without loss of pin spacing | No |
| Mating direction to the PCB | 0 ° |
| Locking of plug-in connection | none |
PCB contact
| PCB contact | THT |
|---|---|
| Solder pin arrangement | over the entire male connector (in-line) |
| Number of solder pins per potential | 1 |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | light gray |
| Material group | I |
| Insulation material (main housing) | Polyphthalamide (PPA GF) |
| Flammability class per UL94 | V0 |
| Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin |
| Fire load | 0.069 MJ |
| Weight of insulation material | 2.3 g |
| Weight | 2.9 g |
| MSL per J-STD 020D | 1 |
Environmental requirements
| Limit temperature range | -60 … +100 °C |
|---|---|
| Processing temperature | -35 … +60 °C |
Commercial data
| PU (SPU) | 100 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | IN |
| GTIN | 4066966830736 |
| Customs tariff number | 85366930000 |
Product Classification
| UNSPSC | 39121409 |
|---|---|
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
