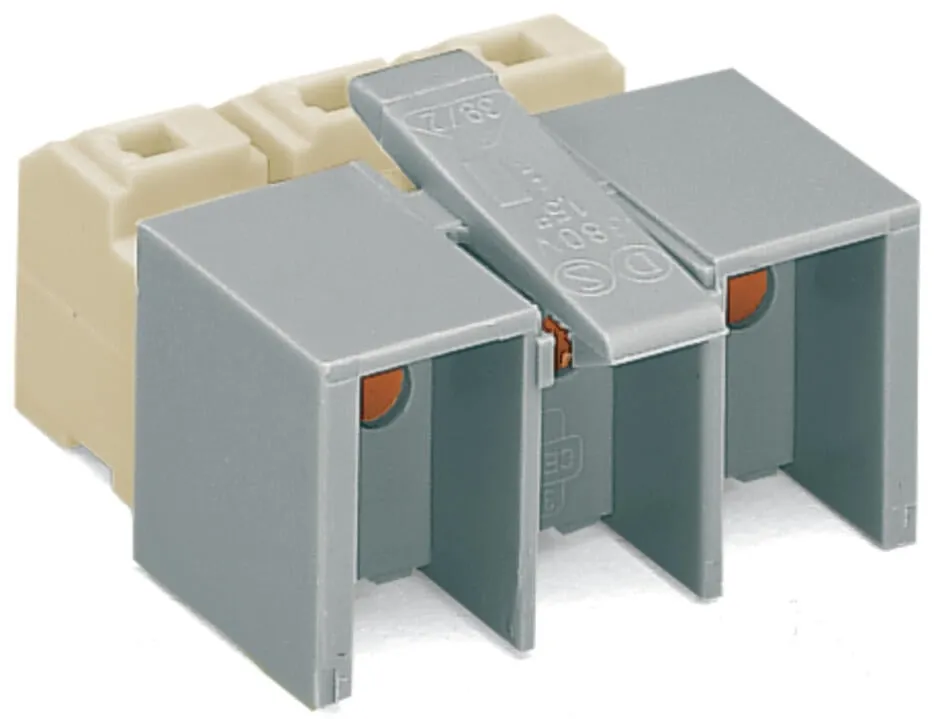

Wago 272-405/272-491
Female connector, 272 Series, PUSH WIRE®Enjoy convenient electrical installations with this female connector (item number 272-405/272-491). Ensure that the strip lengths are between 8 and 9 mm when c…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Female connector, 272 Series, PUSH WIRE®Enjoy convenient electrical installations with this female connector (item number 272-405/272-491). Ensure that the strip lengths are between 8 and 9 mm when connecting conductors to this female connector. Featuring one conductor terminal along with PUSH WIRE®, this connector is highly versatile. Our tried-and-tested PUSH WIRE® connection offers the fastest method for clamping conductors. It utilizes the conductor’s stiffness to overcome the clamping spring’s contact force. The item’s dimensions are (53 x 15.3 x 35.95) mm (width x height x depth).
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Rated voltage (III/2) | 200 V |
| Rated impulse withstand voltage (III/2) | 4 kV |
| Nominal voltage (II/2) | 400 V |
| Rated impulse withstand voltage (II/2) | 4 kV |
| Rated current | 16 A |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 200 V / 400 V |
| Rated impulse withstand voltage | 4 kV / 4 kV |
| Rated current | 16 A / 16 A |
Connection data
| Clamping units | 10 |
|---|---|
| Total number of potentials | 5 |
| Number of connection types | 1 |
Connection data - Connection 1
| Connection technology | PUSH WIRE® |
|---|---|
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Pole number | 5 |
Physical data
| Width | 53 mm / 2.087 inches |
|---|---|
| Height | 15.3 mm / 0.602 inches |
| Depth | 35.95 mm / 1.415 inches |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | white/gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V2 |
| Fire load | 0.417 MJ |
| Weight | 19.6 g |
Commercial data
| Product Group | 8 (Misc. Chassis Mount Blocks) |
|---|---|
| PU (SPU) | 250 (1) pcs |
| Packaging type | bag |
| Country of origin | DE |
| GTIN | 4044918406789 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-44-03-14 |
| eCl@ss 9.0 | 27-44-03-14 |
| ETIM 9.0 | EC002560 |
| ETIM 10.0 | EC002560 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
