Wago 272-403/272-486

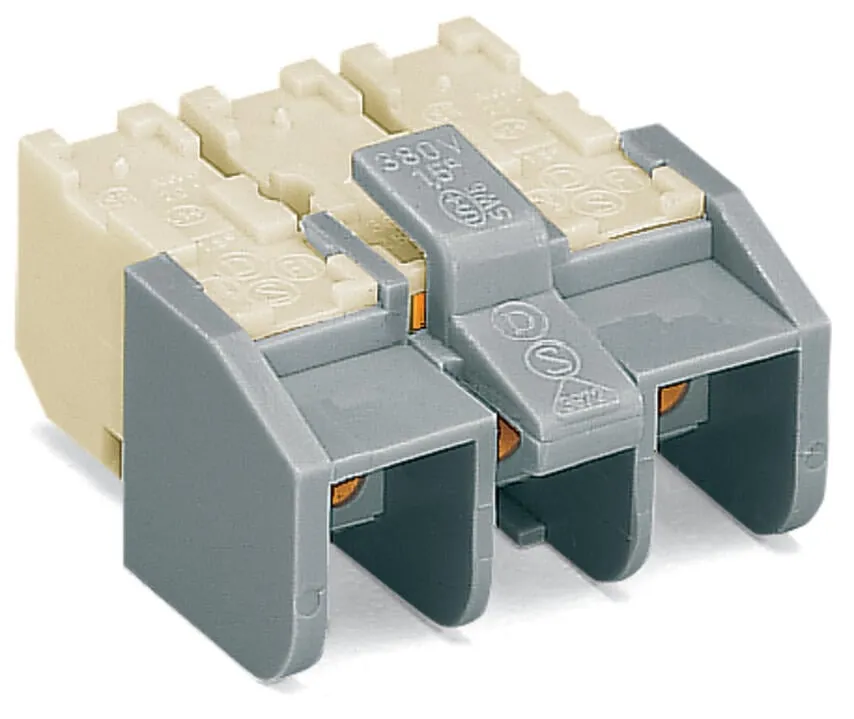

Female connector, 272 Series, white/grayEnjoy error-free electrical installations with this female connector (item number 272-403/272-486). Conductors should only be connected to this female connector…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Female connector, 272 Series, white/grayEnjoy error-free electrical installations with this female connector (item number 272-403/272-486). Conductors should only be connected to this female connector if their strip length is between 8 and 9 mm . This product features one conductor terminal and utilizes PUSH WIRE®. Our PUSH WIRE® connection uses the stiffness of the conductor to overcome the clamping spring’s contact force, allowing you to clamp the conductor in place more quickly and easily. The item’s dimensions are (33 x 15.3 x 35.95) mm (width x height x depth).
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Rated voltage (III/2) | 200 V |
| Rated impulse withstand voltage (III/2) | 4 kV |
| Nominal voltage (II/2) | 400 V |
| Rated impulse withstand voltage (II/2) | 4 kV |
| Rated current | 16 A |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 200 V / 400 V |
| Rated impulse withstand voltage | 4 kV / 4 kV |
| Rated current | 16 A / 16 A |
Connection data
| Clamping units | 6 |
|---|---|
| Total number of potentials | 3 |
| Number of connection types | 1 |
Connection data - Connection 1
| Connection technology | PUSH WIRE® |
|---|---|
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Pole number | 3 |
Physical data
| Width | 33 mm / 1.299 inches |
|---|---|
| Height | 15.3 mm / 0.602 inches |
| Depth | 35.95 mm / 1.415 inches |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | white/gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V2 |
| Fire load | 0.23 MJ |
| Weight | 12 g |
Commercial data
| Product Group | 8 (Misc. Chassis Mount Blocks) |
|---|---|
| PU (SPU) | 500 pcs |
| Packaging type | bag |
| Country of origin | DE |
| GTIN | 4044918406161 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-44-03-14 |
| eCl@ss 9.0 | 27-44-03-14 |
| ETIM 9.0 | EC002560 |
| ETIM 10.0 | EC002560 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
