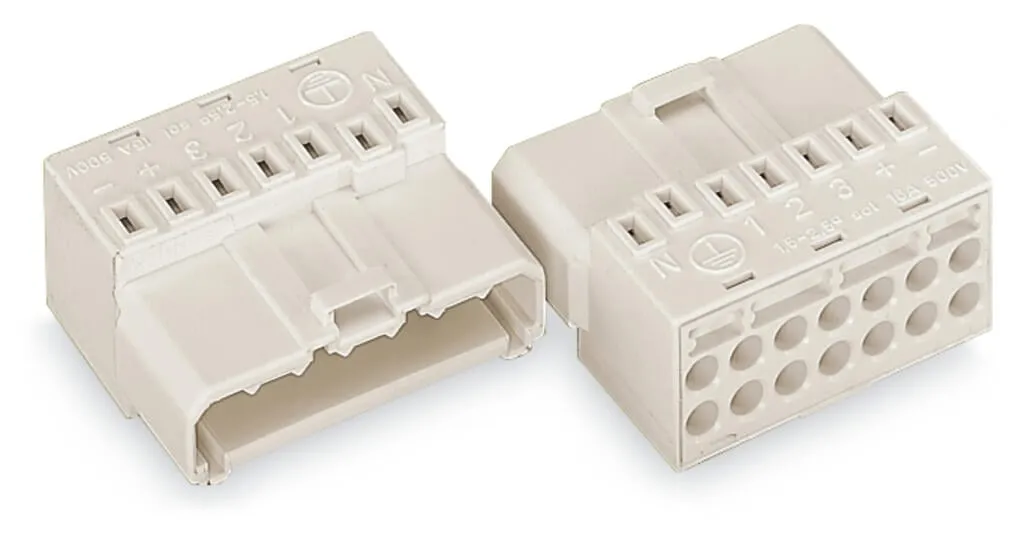

Wago 267-521
Male connector, 267 Series, whiteOur male connector (item number 267-521) is designed for seamless electrical installations. Ensure that the strip lengths are between 11 and 12 mm when connecting con…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

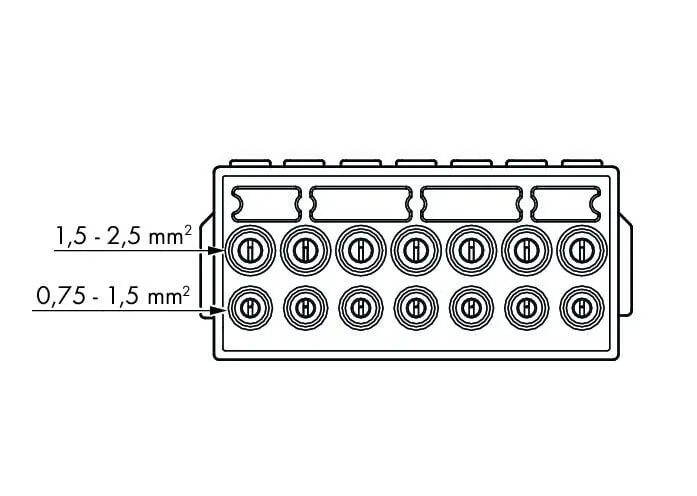

Male connector, 267 Series, whiteOur male connector (item number 267-521) is designed for seamless electrical installations. Ensure that the strip lengths are between 11 and 12 mm when connecting conductors to this male connector. This product features two conductor terminals and utilizes PUSH WIRE® and PUSH WIRE®. Our PUSH WIRE® connection is the quick and easy method for connecting solid conductors. Dimensions: (39 x 19 x 35) mm (width x height x depth). Depending on the type of conductor, this male connector is suitable for conductor cross sections ranging from 1.5 mm² to 2.5 mm² on one side and for conductor cross sections from 0.75 mm² to 1.5 mm² on the other side.The contact surface is coated with tin.
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 61984 |
|---|---|
| Rated voltage (III/2) | 500 V |
| Rated impulse withstand voltage (III/2) | 4 kV |
| Rated current | 16 A |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Ratings per | IEC/EN 61984 / IEC/EN 61984 / IEC/EN 61984 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 500 V |
| Rated impulse withstand voltage | 4 kV |
| Rated current | 16 A |
Connection data
| Number of connection types | 2 |
|---|---|
| Number of levels | 2 |
Connection data - Connection 1
| Connection type | PUSH WIRE® connection |
|---|---|
| Connection technology | PUSH WIRE® |
| Number of connection points | 1 |
| Solid conductor | 1.5 … 2.5 mm² / 16 … 14 AWG |
| Strip length | 11 … 12 mm / 0.43 … 0.47 inches |
Connection data - Connection 2
| Connection type | PUSH WIRE® connection |
|---|---|
| Connection technology | PUSH WIRE® |
| Number of connection points | 1 |
| Solid conductor | 0.75 … 1.5 mm² / 18 … 16 AWG |
| Strip length | 11 … 12 mm / 0.43 … 0.47 inches |

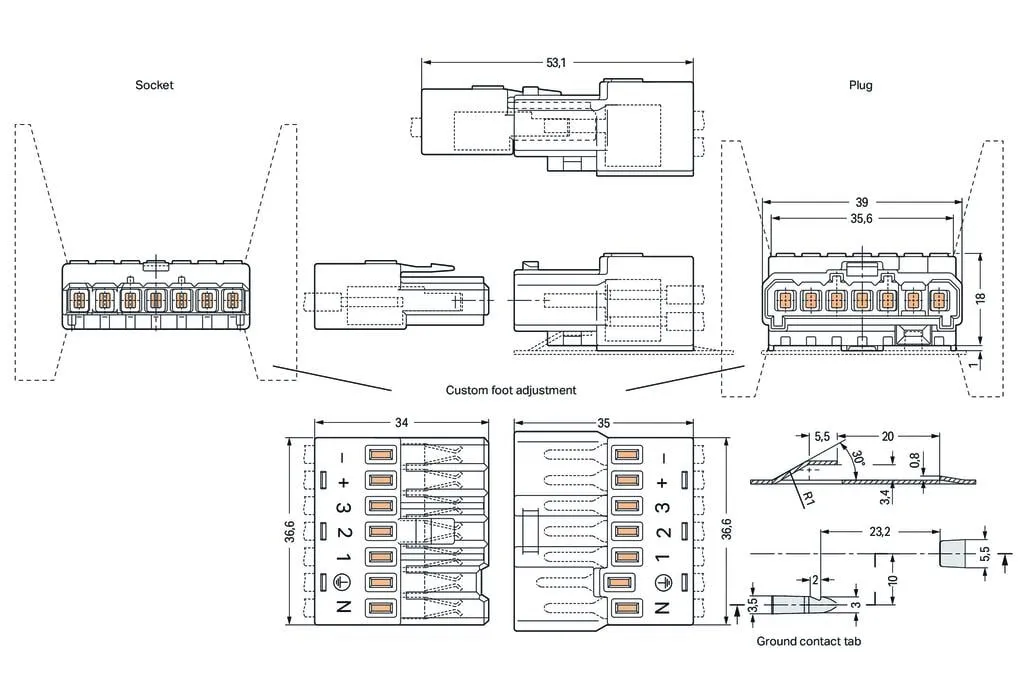

Physical data
| Width | 39 mm / 1.535 inches |
|---|---|
| Height | 19 mm / 0.748 inches |
| Height from the surface | 18 mm / 0.709 inches |
| Depth | 35 mm / 1.378 inches |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | white |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin |
| Fire load | 0.268 MJ |
| Weight | 19.6 g |
Environmental requirements
| Temperature stability | 105 °C |
|---|
Commercial data
| Product Group | 8 (Misc. Chassis Mount Blocks) |
|---|---|
| PU (SPU) | 50 pcs |
| Packaging type | box |
| Country of origin | PL |
| GTIN | 4050821307914 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121402 |
|---|---|
| eCl@ss 10.0 | 27-44-03-14 |
| eCl@ss 9.0 | 27-44-03-14 |
| ETIM 9.0 | EC002560 |
| ETIM 10.0 | EC002560 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
