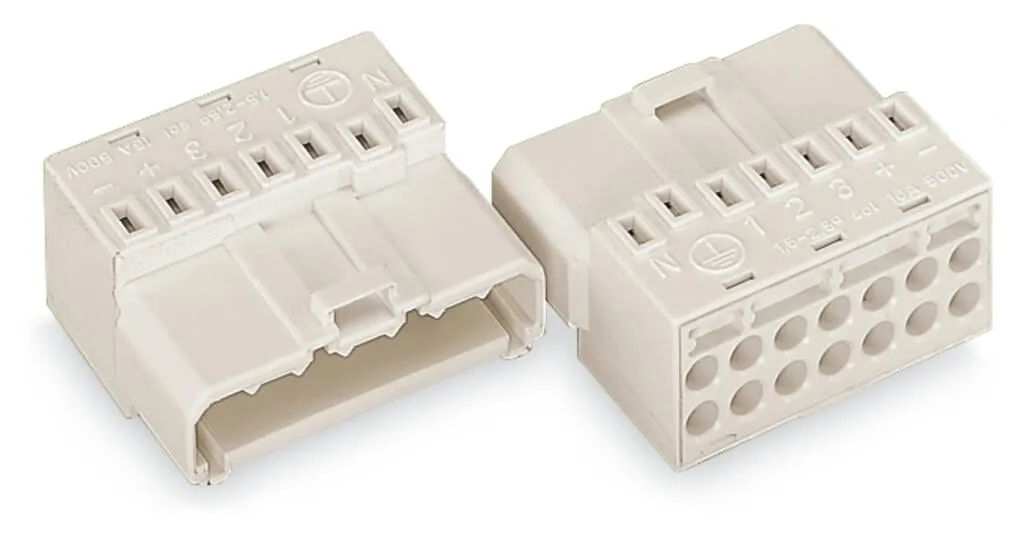

Wago 267-516
Male connector, 267 Series, whiteThis male connector (item number 267-516) provides seamless electrical installations.The contact surface is coated with tin.
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Male connector, 267 Series, whiteThis male connector (item number 267-516) provides seamless electrical installations.The contact surface is coated with tin.
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 61984 |
|---|---|
| Rated voltage (III/2) | 500 V |
| Rated impulse withstand voltage (III/2) | 4 kV |
| Rated current | 16 A |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Ratings per | IEC/EN 61984 / IEC/EN 61984 / IEC/EN 61984 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 500 V |
| Rated impulse withstand voltage | 4 kV |
| Rated current | 16 A |
Connection data
| Number of connection types | 1 |
|---|
Connection data - Connection 1
| Pole number | 7 |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | white |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin |
| Fire load | 0.26 MJ |
| Weight | 19.4 g |
Environmental requirements
| Temperature stability | 105 °C |
|---|
Commercial data
| Product Group | 8 (Misc. Chassis Mount Blocks) |
|---|---|
| PU (SPU) | 50 pcs |
| Packaging type | box |
| Country of origin | PL |
| GTIN | 4044918546898 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121402 |
|---|---|
| eCl@ss 10.0 | 27-44-03-14 |
| eCl@ss 9.0 | 27-44-03-14 |
| ETIM 9.0 | EC002560 |
| ETIM 10.0 | EC002560 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
