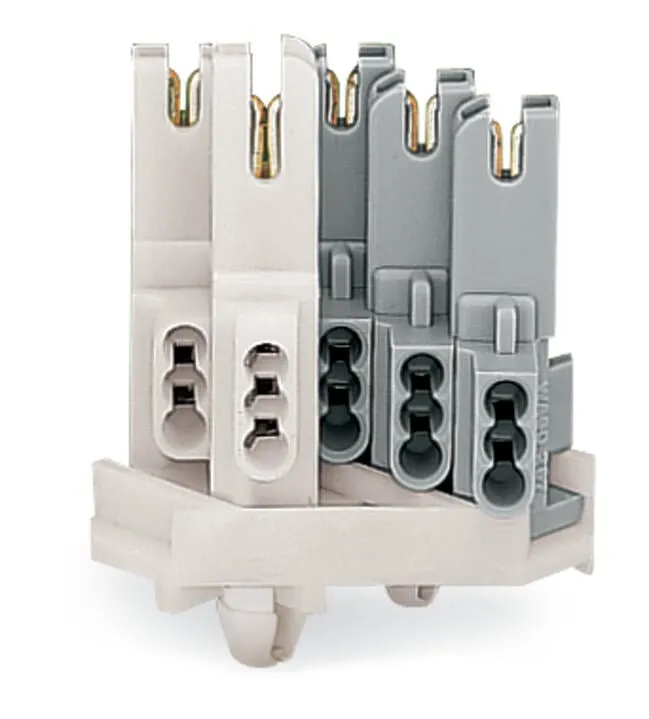

Wago 267-114
Female connector, 267 Series, whiteEffortless electrical installations are guaranteed with this female connector (item number 267-114). Conductors can only be connected to this female connector if the…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Female connector, 267 Series, whiteEffortless electrical installations are guaranteed with this female connector (item number 267-114). Conductors can only be connected to this female connector if their strip length is 8 mm . This female connector is suitable for conductor cross sections ranging from 0.5 mm² to 1 mm².Tin is used for coating the contact surfaces.
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Rated voltage (III/2) | 500 V |
| Rated impulse withstand voltage (III/2) | 4 kV |
| Rated current | 6 A |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 500 V |
| Rated impulse withstand voltage | 4 kV |
| Rated current | 6 A |
Connection data
| Number of connection types | 1 |
|---|
Connection data - Connection 1
| Solid conductor | 0.5 … 1 mm² |
|---|---|
| Strip length | 8 mm / 0.31 inches |
| Pole number | 4 |

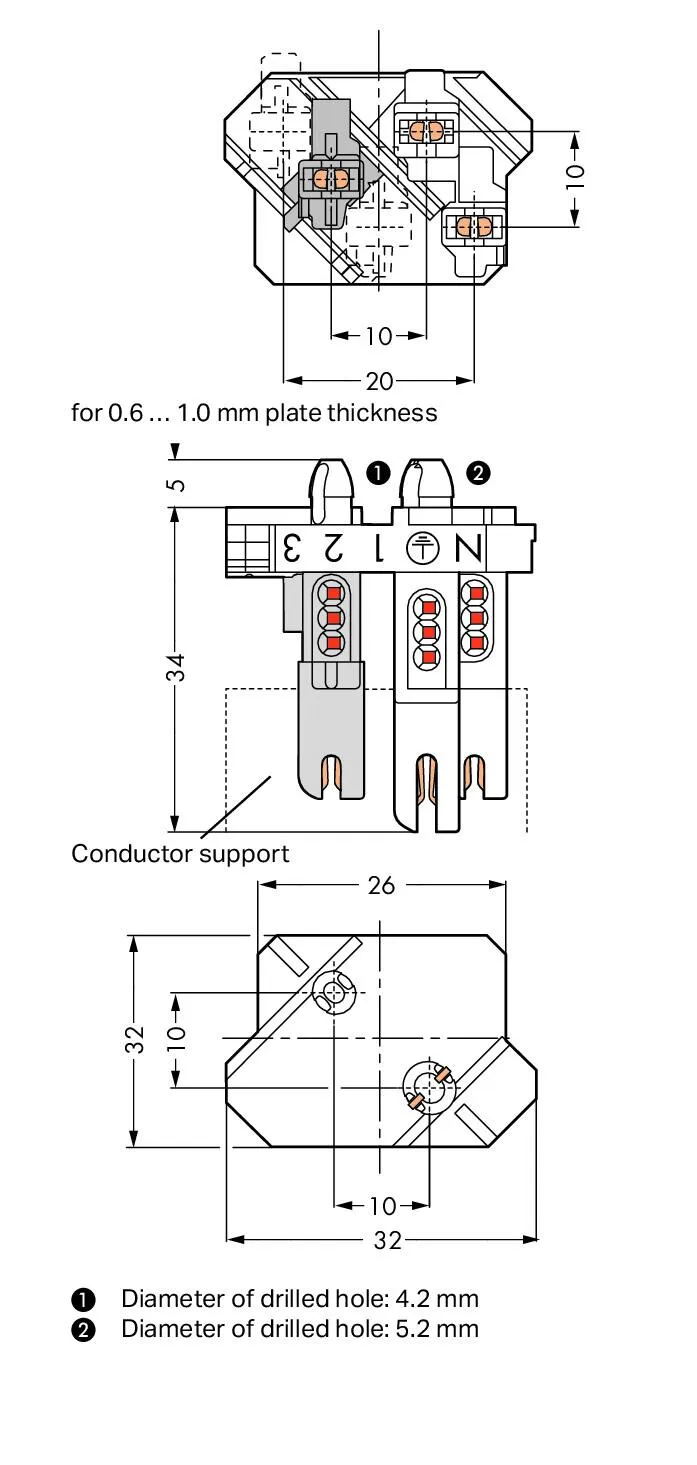

Physical data
| Width | 32 mm / 1.26 inches |
|---|---|
| Height from the surface | 34 mm / 1.339 inches |
| Depth | 32 mm / 1.26 inches |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | white |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin |
| Fire load | 0.142 MJ |
| Weight | 7.3 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
| Temperature stability | 105 °C |
Commercial data
| Product Group | 8 (Misc. Chassis Mount Blocks) |
|---|---|
| PU (SPU) | 500 pcs |
| Packaging type | bag |
| Country of origin | PL |
| GTIN | 4044918499507 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121409 |
|---|---|
| eCl@ss 10.0 | 27-44-03-14 |
| eCl@ss 9.0 | 27-44-03-14 |
| ETIM 9.0 | EC002560 |
| ETIM 10.0 | EC002560 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
