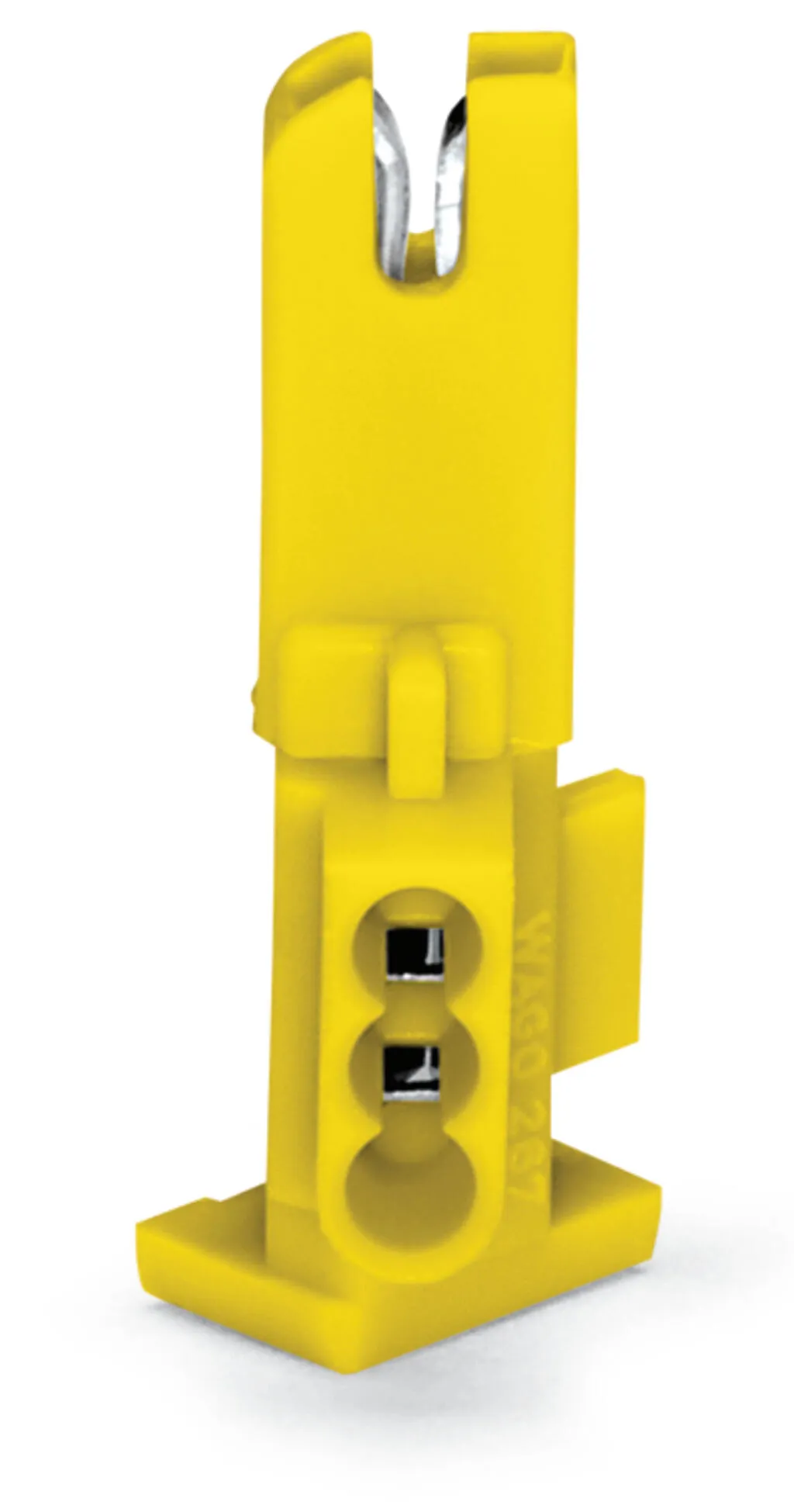

Wago 267-110
Female connector, 267 Series, yellowOur female connector (item number 267-110) is designed for seamless electrical installations. Conductors should only be connected to this female connector if their…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Female connector, 267 Series, yellowOur female connector (item number 267-110) is designed for seamless electrical installations. Conductors should only be connected to this female connector if their strip length is 8 mm . This product features one conductor terminal and utilizes PUSH WIRE®. Our tried-and-tested PUSH WIRE® connection offers the fastest method for clamping conductors. It utilizes the conductor’s stiffness to overcome the clamping spring’s contact force. This female connector is suitable for conductor cross sections ranging from 0.5 mm² to 1 mm².The contact surface is coated with tin.
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Rated voltage (III/2) | 500 V |
| Rated impulse withstand voltage (III/2) | 4 kV |
| Rated current | 6 A |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 500 V |
| Rated impulse withstand voltage | 4 kV |
| Rated current | 6 A |
Connection data
| Number of connection types | 1 |
|---|
Connection data - Connection 1
| Connection technology | PUSH WIRE® |
|---|---|
| Solid conductor | 0.5 … 1 mm² |
| Strip length | 8 mm / 0.31 inches |
| Pole number | 1 |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | yellow |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin |
| Fire load | 0.023 MJ |
| Weight | 1.4 g |
Environmental requirements
| Temperature stability | 105 °C |
|---|
Commercial data
| Product Group | 8 (Misc. Chassis Mount Blocks) |
|---|---|
| PU (SPU) | 500 pcs |
| Packaging type | bag |
| Country of origin | PL |
| GTIN | 4045454479343 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121402 |
|---|---|
| eCl@ss 10.0 | 27-44-03-14 |
| eCl@ss 9.0 | 27-44-03-14 |
| ETIM 9.0 | EC002560 |
| ETIM 10.0 | EC002560 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
