Wago 2624-3102/000-005

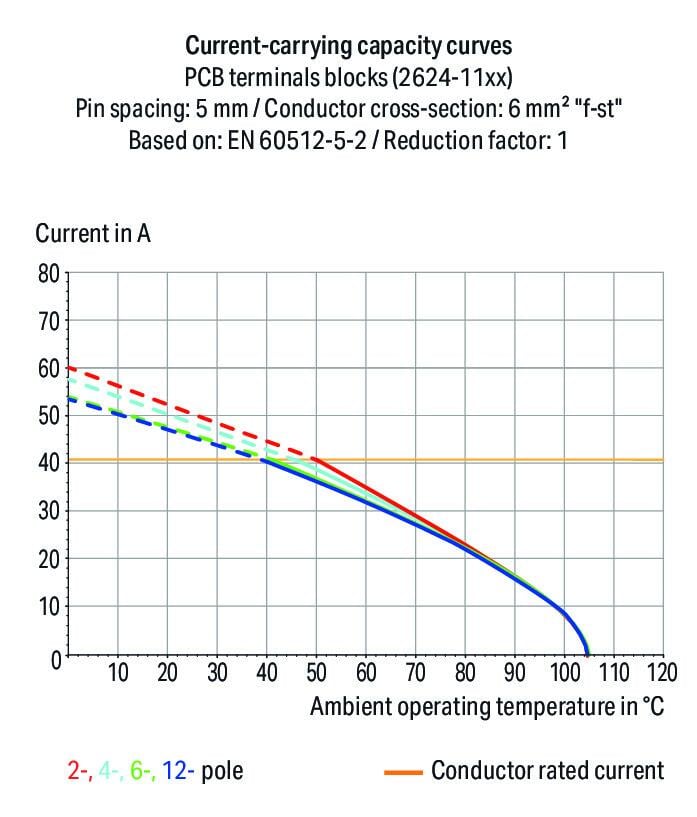

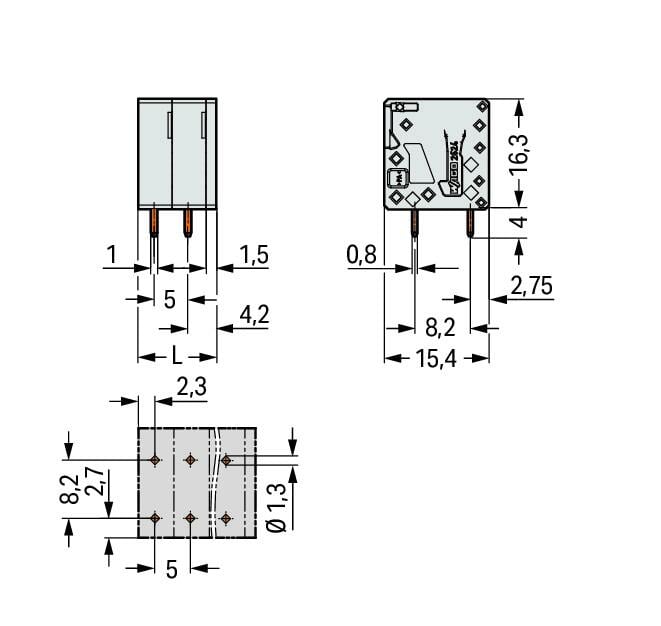

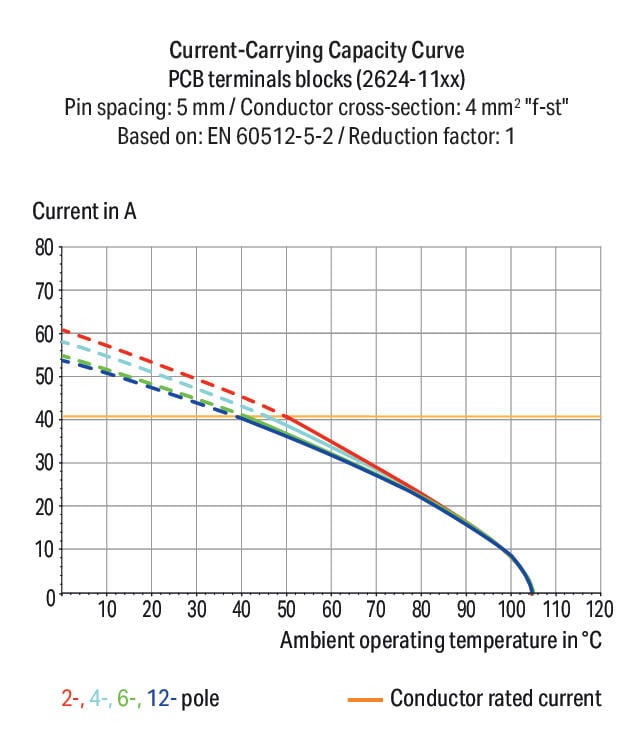

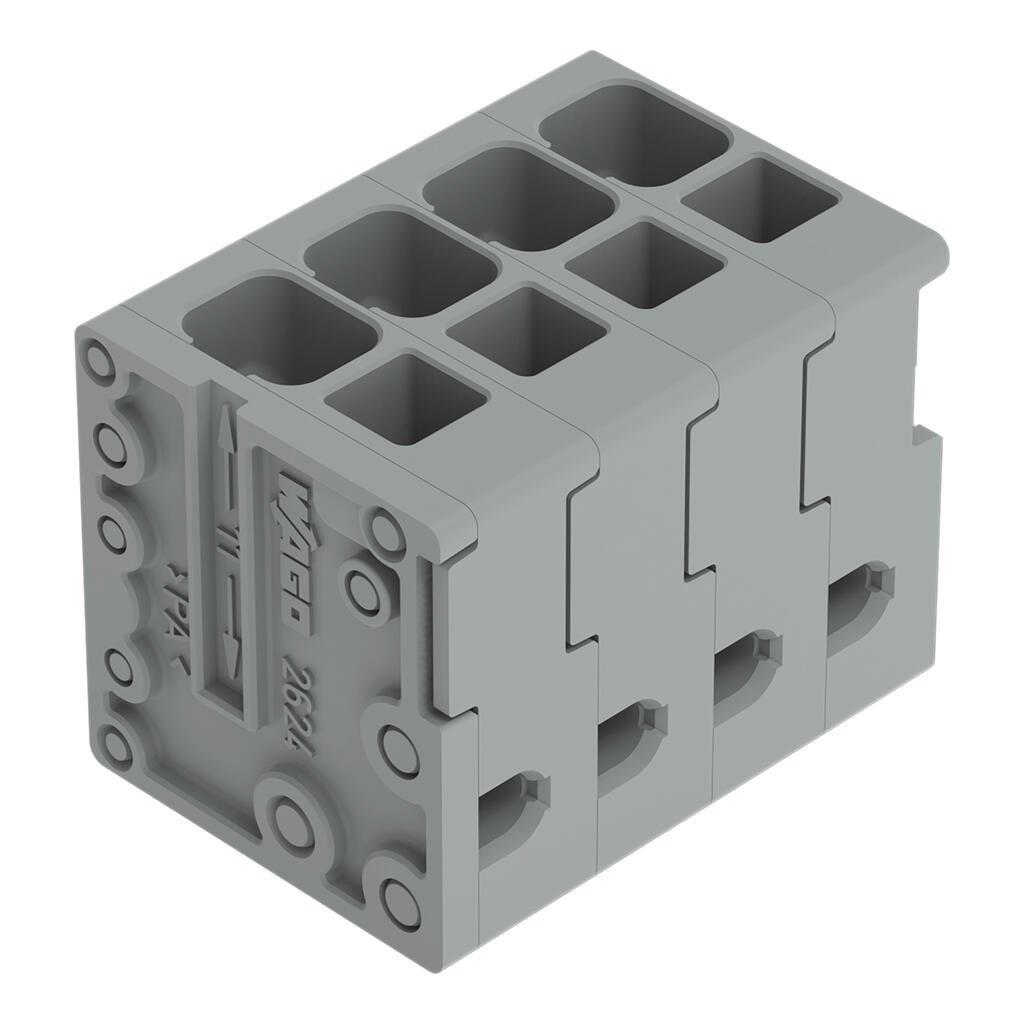

PCB terminal block, 2624 Series, operating toolConnecting conductors is quick and easy with this PCB terminal block (item number 2624-3102/000-005). You can count on tried and tested safety with these PCB terminal blocks, perfect for a wide variety of applications when designing your devices. Rated current and voltage are key factors to consider when choosing a PCB terminal block, as they determine the product’s suitability for different applications. This product has a rated voltage of 400 V and a rated current of 41 A, making it suitable for high-load applications. Strip lengths must be between 10 mm and 12 mm when connecting conductors to this PCB terminal block. This product features one conductor terminal and utilizes Push-in CAGE CLAMP®. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, featuring a winning design: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. The dimensions are 11.5 x 20.3 x 15.4 mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.2 mm² to 6 mm². Up to two potentials / two poles can be connected to this terminal strip using two clamping points on one level. The red housing is made of polyamide (PA66) for insulation, the contacts are made of electrolytic copper (ECu), and the clamping spring is made of chrome-nickel spring steel (CrNi). Tin is used for coating the contact surfaces. An operating tool is used to operate this PCB terminal block. The PCB terminal block is designed for THT soldering. These PCB terminal blocks are mounted using feed-through mounts.. Insert the conductor at an angle of 90°.. The solder pins are organized over the entire terminal strip (in-line) and are 0.8 x 1 mm and 4 mm in length. Each potential has two solder pins.
