Wago 2624-1508

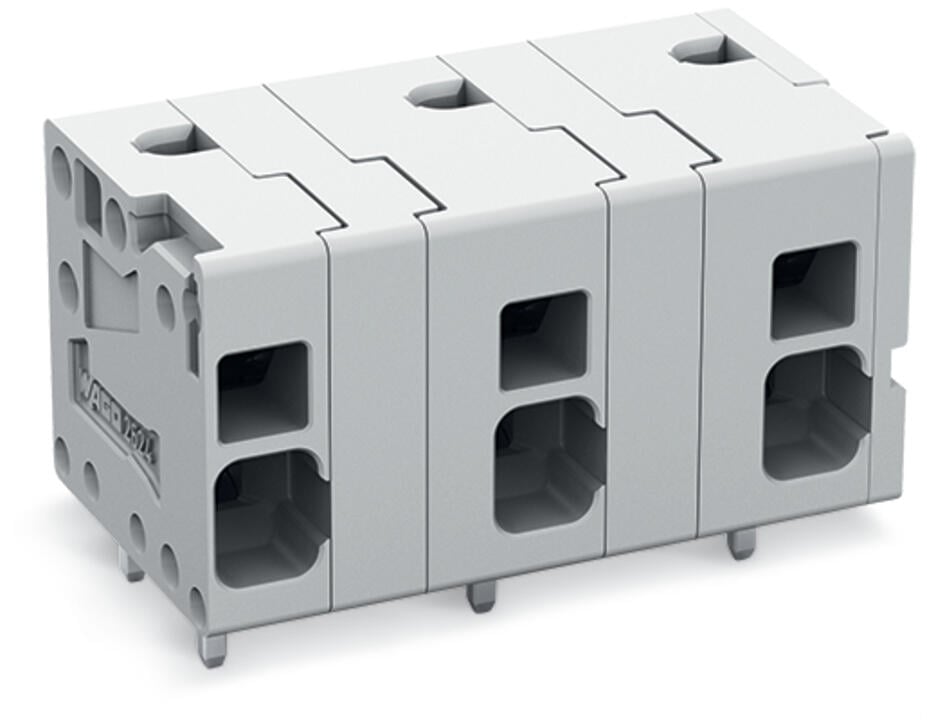

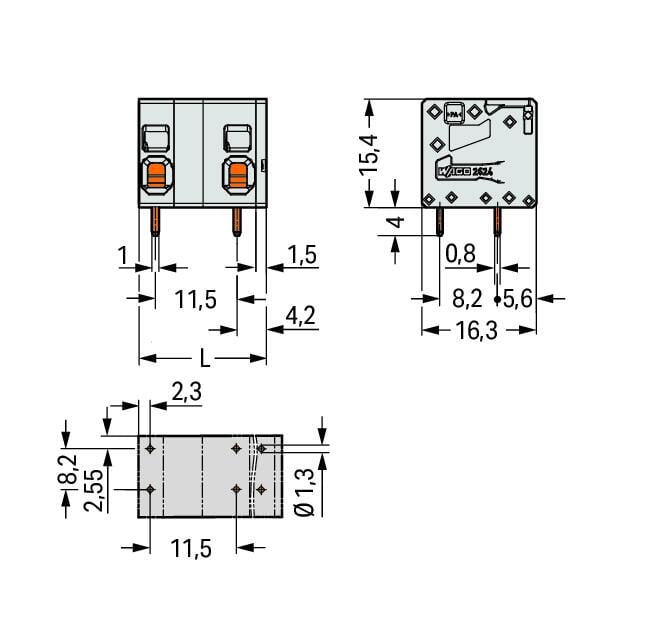

PCB terminal block, 2624 Series, grayThis PCB terminal block (item number 2624-1508) streamlines wire connections, making them both quick and easy. You can count on trusted safety with these PCB terminal blocks, perfect for a host of applications when designing your devices. This PCB terminal block has a rated voltage of 1000 V and can handle currents up to 41 A, making it ideal for high-load applications. Conductors should only be connected to this PCB terminal block if their strip length is between 10 mm and 12 mm. This product features one conductor terminal and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. Both solid and fine-stranded conductors with ferrules can be plugged in without the need for tools—all thanks to its pluggable design. The dimensions are 87 x 19.4 x 16.3 mm (width x height x depth). Depending on the conductor type, this PCB terminal block is designed for conductor cross sections ranging from 0.2 mm² to 6 mm². It has one level. You can connect eight potentials / eight poles using the eight clamping points. The clamping spring is made of chrome-nickel spring steel (CrNi), the contacts are made of electrolytic copper (ECu), and the gray housing is made of polyamide (PA66) for insulation. The contact surface is coated with tin. An operating tool is used to operate this PCB terminal block. THT is used to assemble the PCB terminal block. These PCB terminal blocks are mounted using feed-through mounts.. The conductor is designed to be inserted into the board at a 0° angle.. The solder pins are organized over the entire terminal strip (in-line) and are 0.8 x 1 mm and 4 mm in length. Each potential has two solder pins.
