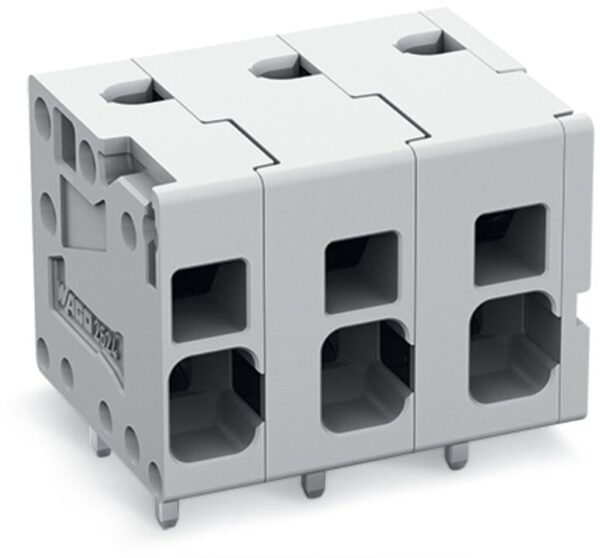

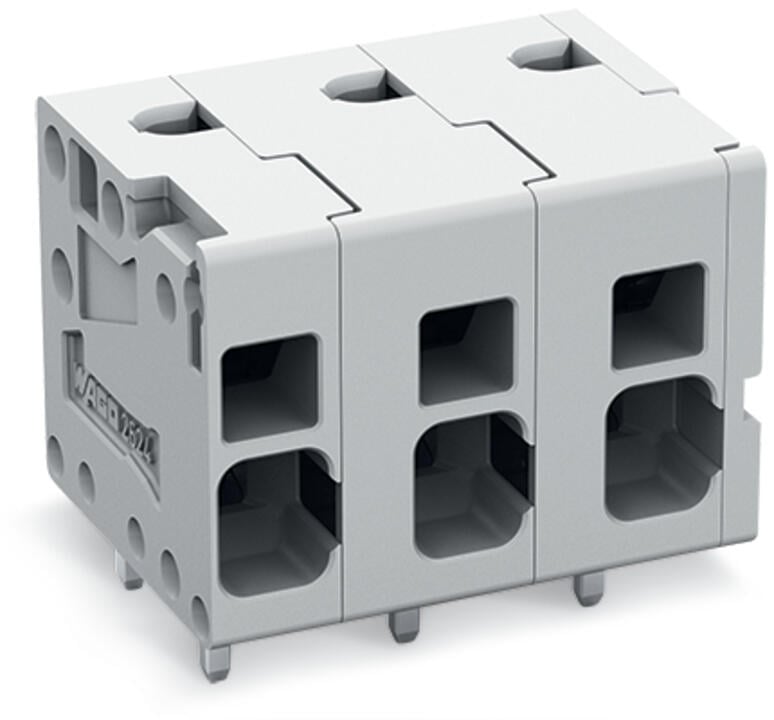

Wago 2624-1302

PCB terminal block, 2624 Series, 0 °conductor entry to boardThis PCB terminal block (item number 2624-1302) streamlines wire connections, making them both quick and easy. It is ideal for custom instal…

Request for Quote

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year
  • Free 30-Day returns

Description

PCB terminal block, 2624 Series, 0 °conductor entry to boardThis PCB terminal block (item number 2624-1302) streamlines wire connections, making them both quick and easy. It is ideal for custom installations with different mounting types. This PCB terminal block has a rated voltage of 1000 V and can handle currents up to 41 A, making it suitable for high-load applications. Conductors should only be connected to this PCB terminal block if their strip length is between 10 mm and 12 mm. Featuring one conductor terminal along with Push-in CAGE CLAMP®, this product outperforms the competition. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing to use any tools—all thanks to its pluggable design. The item’s dimensions are 14 x 19.4 x 16.3 mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.2 mm² to 6 mm². It has one level. You can connect two potentials / two poles using the two clamping points. The gray housing is made of polyamide (PA66) for insulation, the clamping spring is made of chrome-nickel spring steel (CrNi), and the contacts are made of electrolytic copper (ECu). Tin is used for coating the contact surfaces. An operating tool is used to operate this PCB terminal block. THT is used to solder the PCB terminal block. These PCB terminal blocks are mounted using feed-through mounts.. Insert the conductor into the board at an angle of 0°.. The solder pins measure 0.8 x 1 mm in cross-section and 4 mm in length and are organized over the entire terminal strip (in-line). There are two solder pins per potential.

Specification

Notes

Variants:Other pole numbers, Direct marking, Other colors, Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

Electrical data - Ratings per IEC/EN

Ratings perIEC/EN 60664-1
Nominal voltage (III/3)630 V
Rated impulse withstand voltage (III / 3)6 kV
Rated voltage (III/2)1000 V
Rated impulse withstand voltage (III/2)6 kV
Nominal voltage (II/2)1000 V
Rated impulse withstand voltage (II/2)6 kV

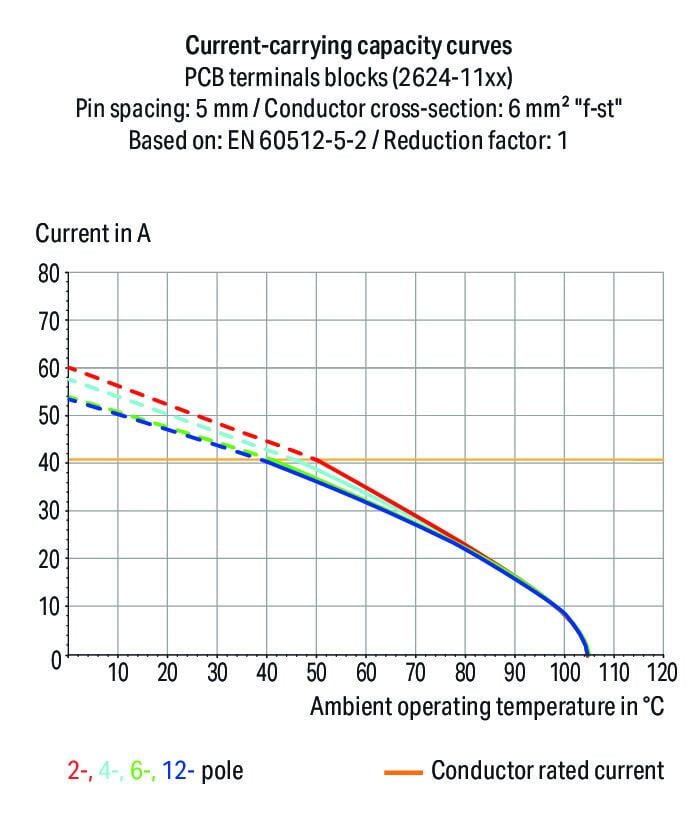

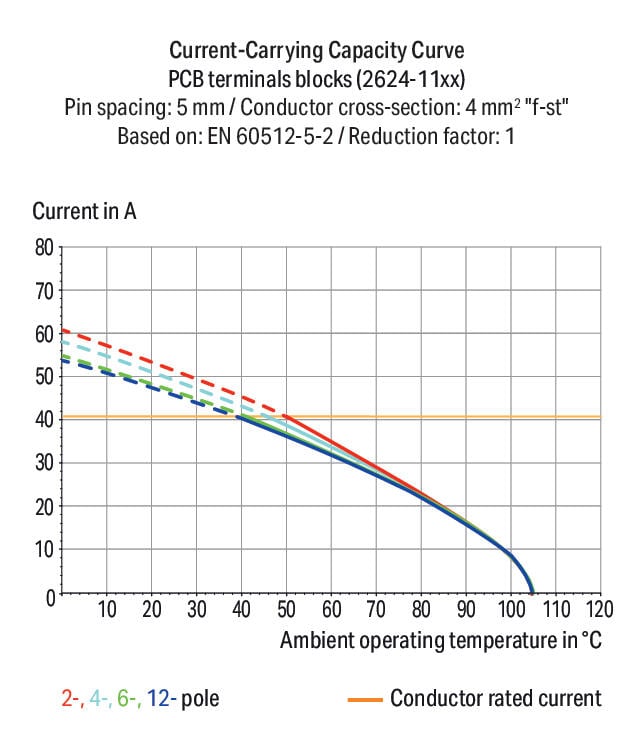

Rated current41 A
Legend (ratings)(III / 2) ≙ Overvoltage category III / Pollution degree 2
Ratings perIEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage630 V / 1000 V / 1000 V
Rated impulse withstand voltage6 kV / 6 kV / 6 kV
Rated current41 A / 41 A / 41 A

Electrical data - Ratings per UL

Approvals perUL 1059
Rated voltage UL (Use Group B)300 V
Rated current UL (Use Group B)26 A
Rated voltage UL (Use Group C)150 V
Rated current UL (Use Group C)26 A
Rated voltage UL (Use Group D)300 V
Rated current UL (Use Group D)10 A
Approvals perUL 1059 / UL 1059 / UL 1059
Use groupB / C / D
Rated voltage300 V / 150 V / 300 V
Rated current26 A / 26 A / 10 A

Electrical data - Ratings per CSA

Approvals perCSA
Rated voltage CSA (Use Group B)300 V
Rated current CSA (Use Group B)26 A
Rated voltage CSA (Use Group D)300 V
Rated current CSA (Use Group D)5 A
Approvals perCSA / CSA / CSA
Use groupB / C / D
Rated voltage300 V / 300 V
Rated current26 A / 5 A

Connection data

Clamping units2
Total number of potentials2
Number of connection types1
Number of levels1

Connection data - Connection 1

Connection technologyPush-in CAGE CLAMP®
Actuation typeOperating tool
Solid conductor0.2 … 6 mm² / 24 … 10 AWG
Fine-stranded conductor0.2 … 6 mm² / 24 … 10 AWG
Fine-stranded conductor; with insulated ferrule0.25 … 2.5 mm²
Fine-stranded conductor; with uninsulated ferrule0.25 … 2.5 mm²
Fine-stranded conductor; with twin ferrule0.25 … 1.5 mm²
Strip length10 … 12 mm / 0.39 … 0.47 inches
Conductor connection direction to PCB0 °
Pole number2

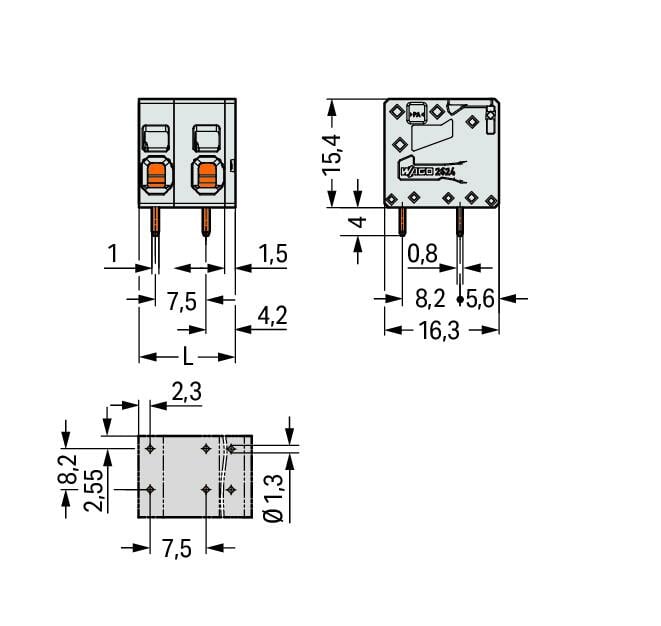

Physical data

Pin spacing7.5 mm / 0.295 inches
Width14 mm / 0.551 inches
Height19.4 mm / 0.764 inches
Height from the surface15.4 mm / 0.606 inches
Depth16.3 mm / 0.642 inches
Solder pin length4 mm
Solder pin dimensions0.8 x 1 mm
Drilled hole diameter with tolerance1.3 (+0.1) mm

Mechanical data

Mounting typeFeed-through mounting

PCB contact

PCB contactTHT
Solder pin arrangementover the entire terminal strip (in-line)
Number of solder pins per potential2

Material data

Note (material data)Information on material specifications can be found here
Colorgray
Material groupI
Insulation material (main housing)Polyamide (PA66)
Flammability class per UL94V0
Clamping spring materialChrome-nickel spring steel (CrNi)
Contact materialElectrolytic copper (ECu)
Contact platingTin
Fire load0.038 MJ
Weight3.6 g

Environmental requirements

Limit temperature range-60 … +105 °C
Processing temperature-35 … +60 °C
Continuous operating temperature-60 … +105 °C

Commercial data

PU (SPU)140 (1) pcs
Packaging typebox
Country of originPL
GTIN4066966485653
Customs tariff number85369010000

Product Classification

UNSPSC39121409
eCl@ss 10.027-44-04-01
eCl@ss 9.027-44-04-01
ETIM 9.0EC002643
ETIM 10.0EC002643
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,No Exemption
