Wago 2624-1109

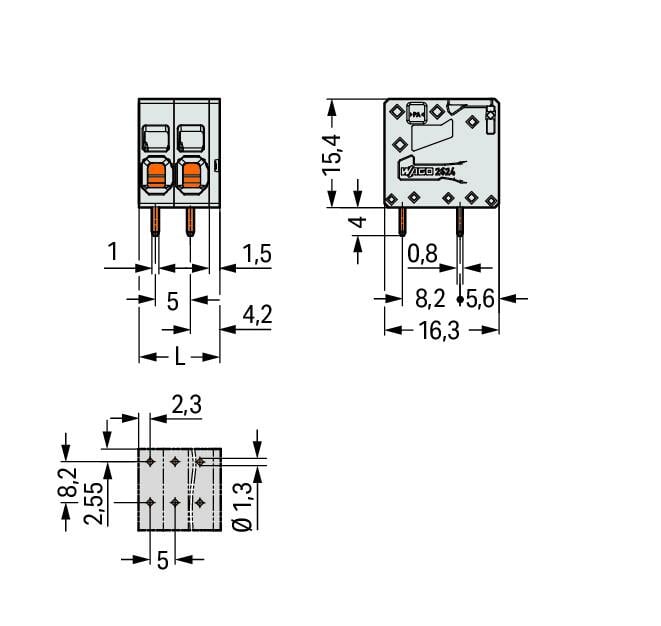

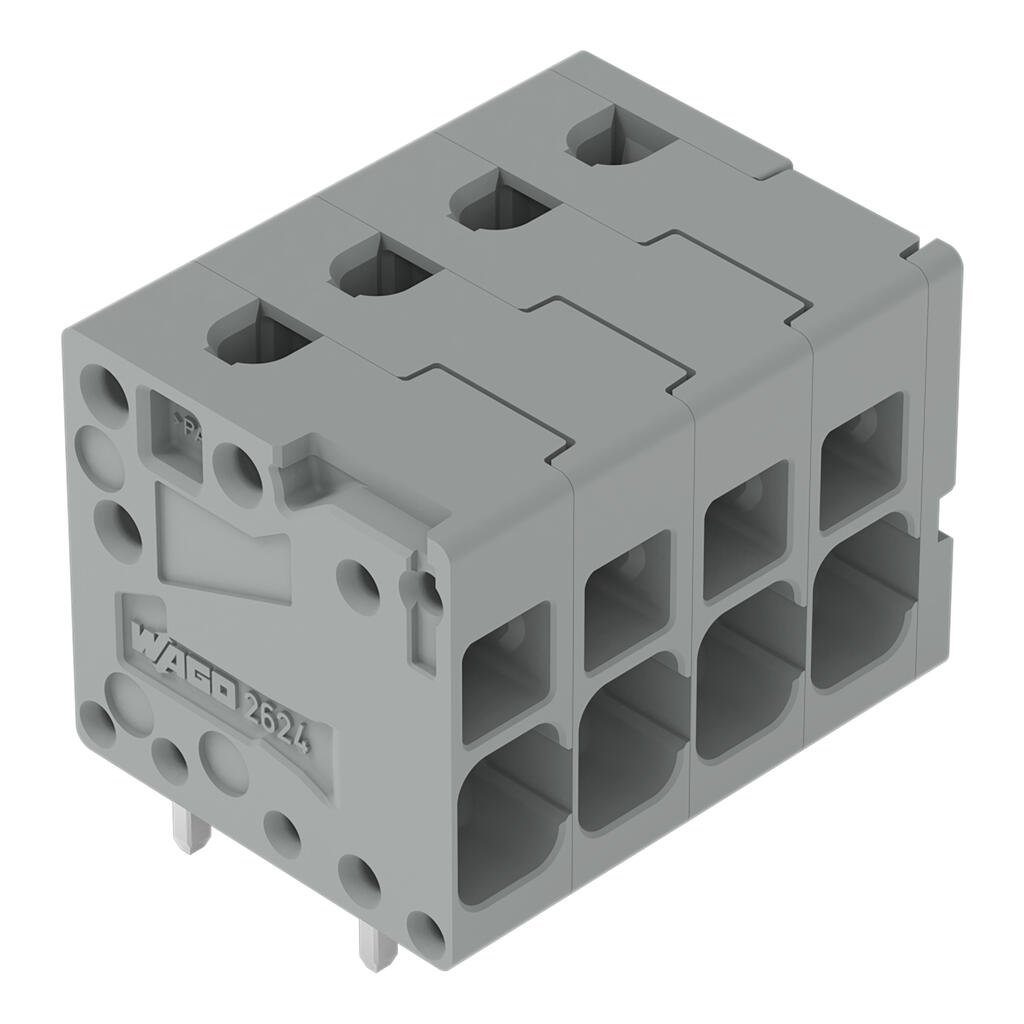

PCB terminal block, 2624 Series, operating toolThis PCB terminal block (item number 2624-1109) is designed for quick and easy connections. It offers the flexibility needed for different mounting types. Our PCB terminal block is rated for 400 V and is designed to handle a rated current of up to 41 A. It can therefore be used in high-load applications. Ensure that the strip lengths are between 10 mm and 12 mm when connecting conductors to this PCB terminal block. This product features one conductor terminal and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® technology provides a universal connection solution for any type of conductor. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. The item’s dimensions are 46.5 x 19.4 x 16.3 mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.2 mm² to 6 mm². Up to nine potentials / nine poles can be connected to this terminal strip using nine clamping points on one level. The contacts are made of electrolytic copper (ECu), the gray housing is made of polyamide (PA66) for insulation, and the clamping spring is made of chrome-nickel spring steel (CrNi). The contact surface is coated with tin. An operating tool is used to operate this PCB terminal block. The PCB terminal block is designed for THT soldering. These PCB terminal blocks are mounted using feed-through mounts.. The conductor is designed to be inserted at a 0° angle.. The solder pins are organized over the entire terminal strip (in-line). They are 0.8 x 1 mm cross-section and 4 mm in length. Each potential has two solder pins.
