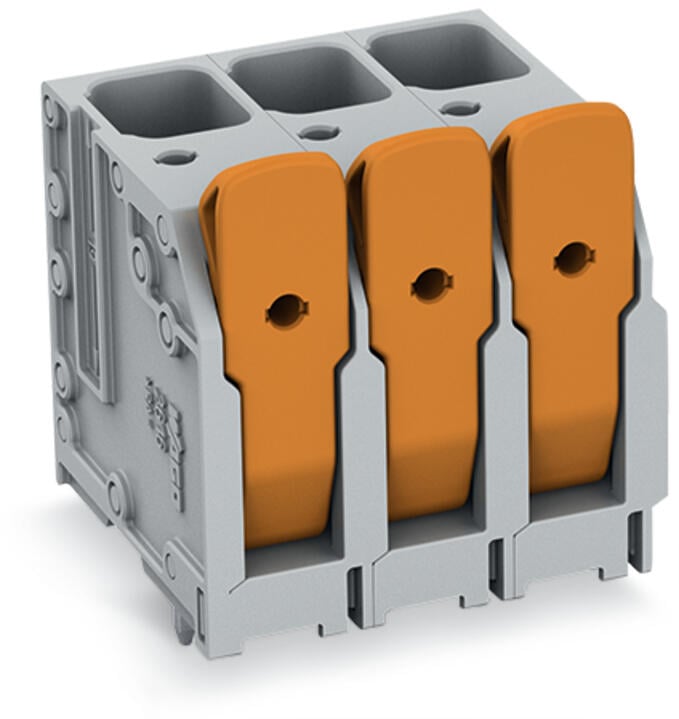

Wago 2616-3103

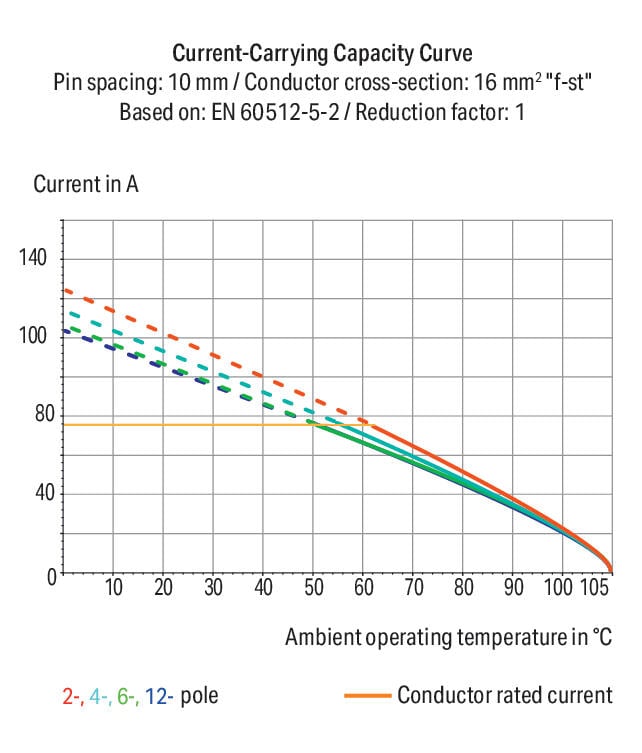

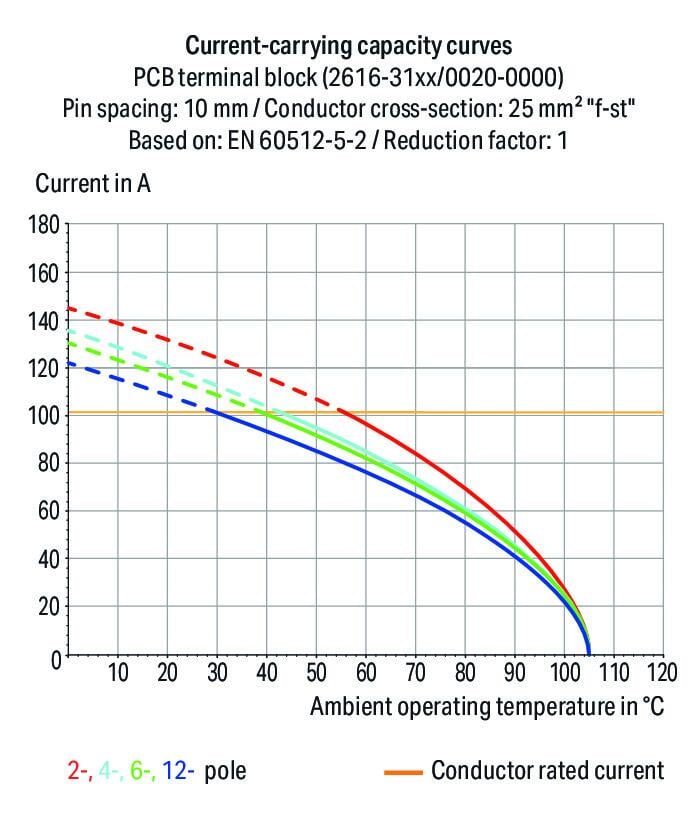

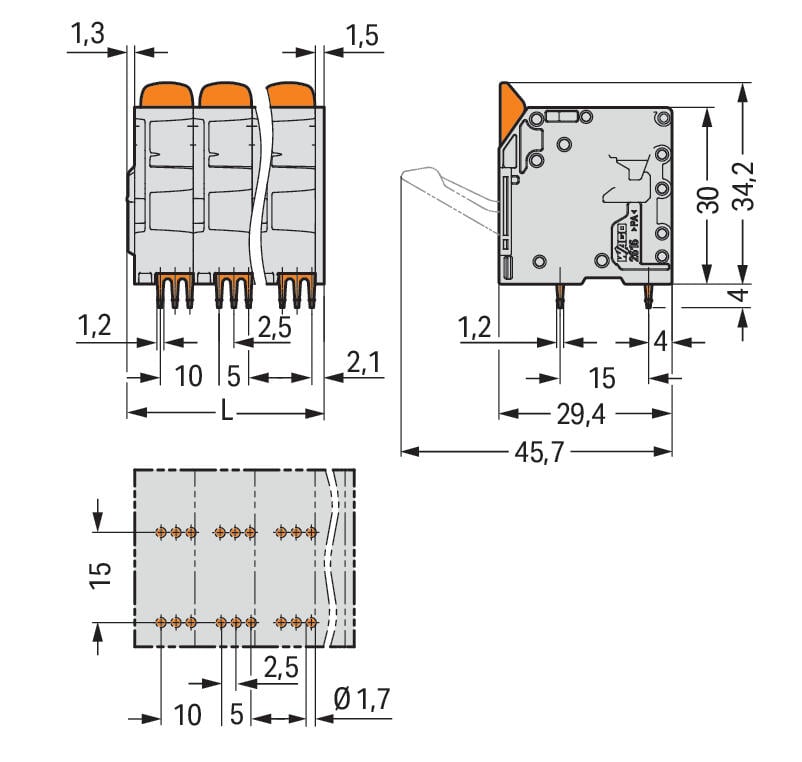

PCB terminal block, 2616 Series, Push-in CAGE CLAMP®Our PCB terminal block (item number 2616-3103) ensures effortless electrical installations. It is ideal for custom installations with different mounting types. Our PCB terminal block is rated for 320 V and is designed to handle a rated current of up to 76 A. As such, it is suitable for high-load applications. Strip lengths must be between 18 mm and 20 mm when connecting conductors to this PCB terminal block. Featuring one conductor terminal along with Push-in CAGE CLAMP®, this product outperforms the competition. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, offering a key advantage: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. Dimensions: 32.8 x 38.2 x 29.4 mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.75 mm² to 16 mm². Up to three potentials / three poles can be connected to this terminal strip using three clamping points on one level. The clamping spring is made of chrome-nickel spring steel (CrNi), the gray housing is made of polyamide (PA66) for insulation, and the contacts are made of electrolytic copper (ECu). The contact surface is coated with tin. A lever is used to operate this PCB terminal block. THT is used to solder the PCB terminal block. The conductor is designed to be inserted at an angle of 90°.. The solder pins, which are 1.2 x 1.2 mm in cross-section and 4 mm long, are laid out over the entire terminal strip (staggered). There are six solder pins per potential.
