Wago 2616-2107/020-000

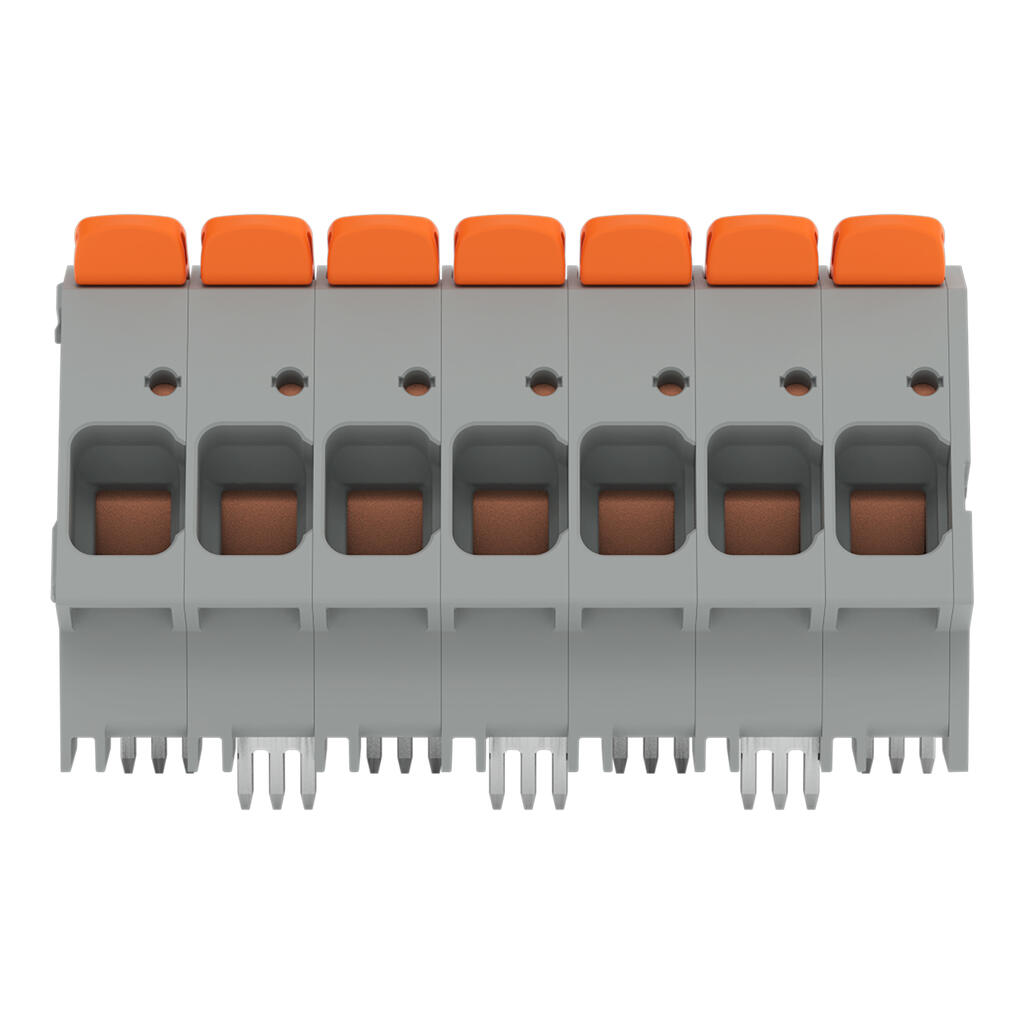

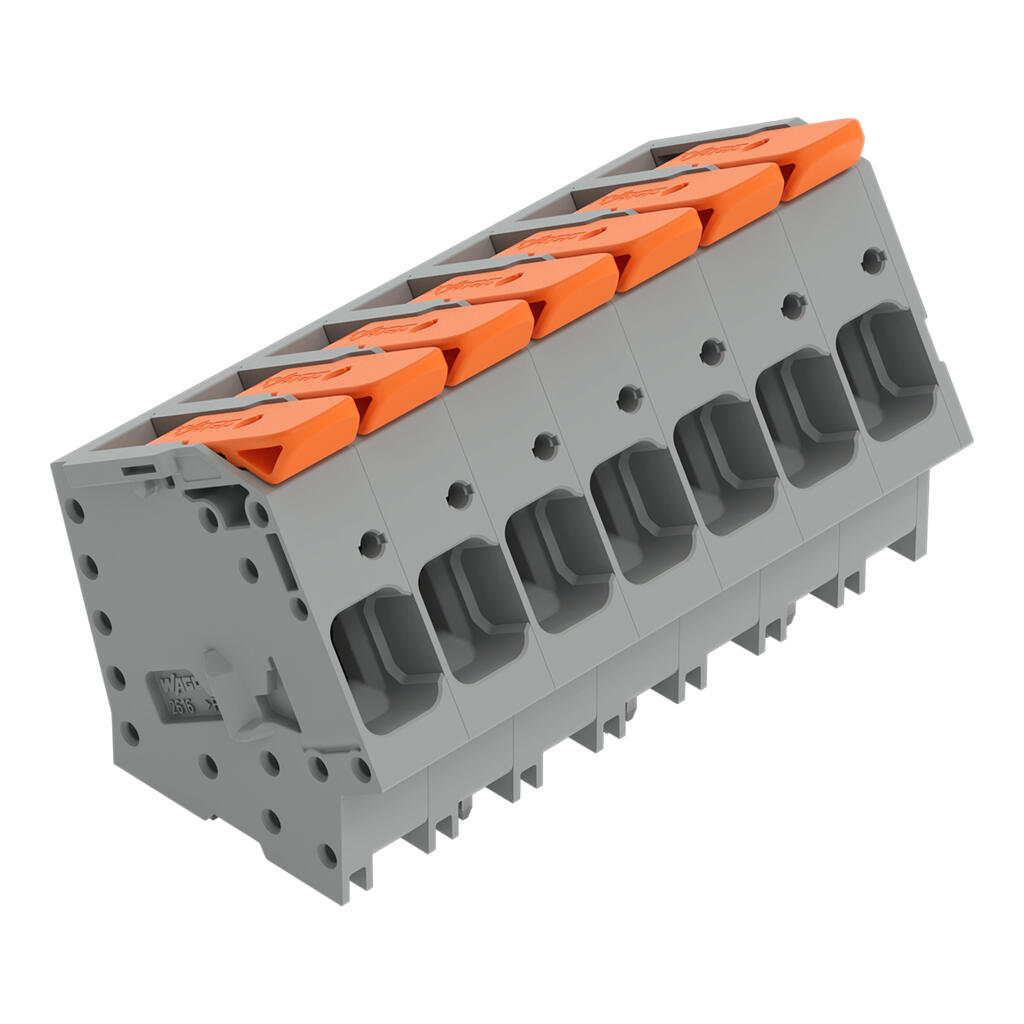

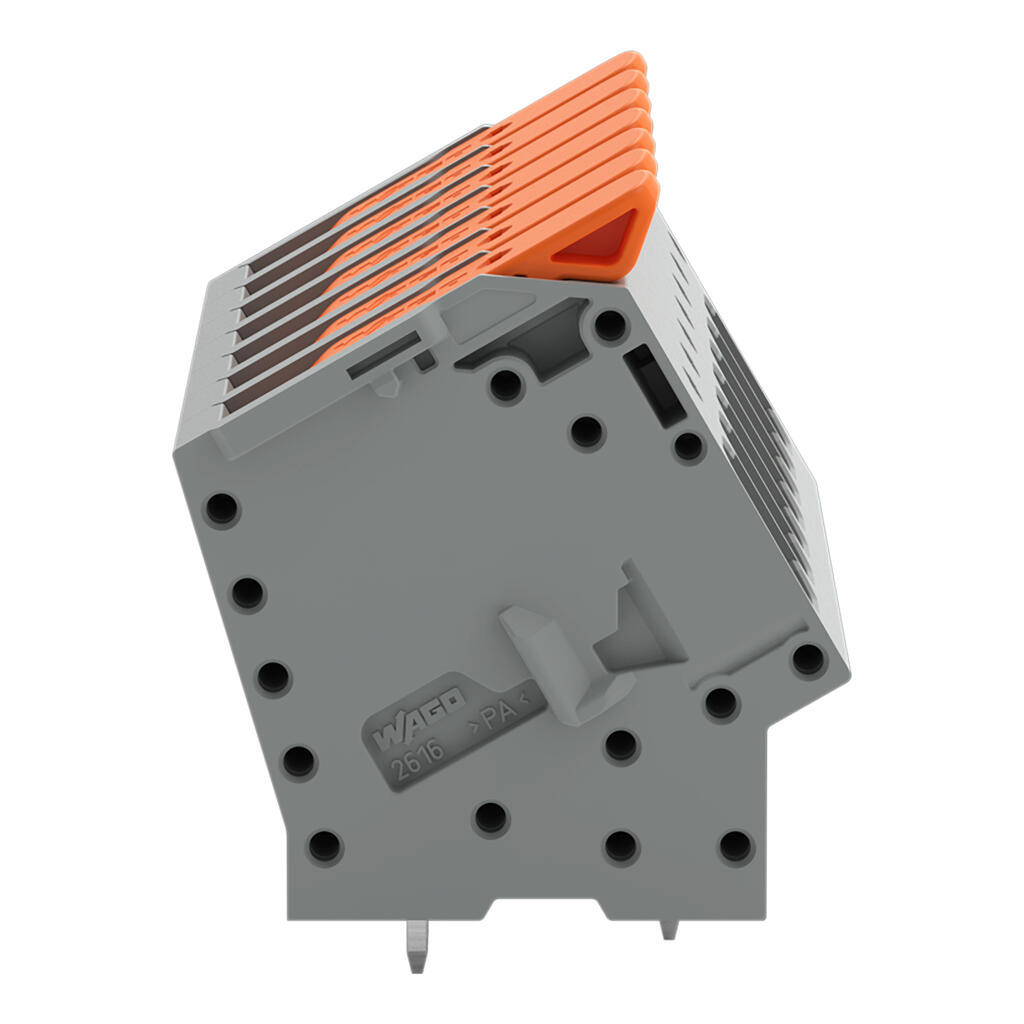

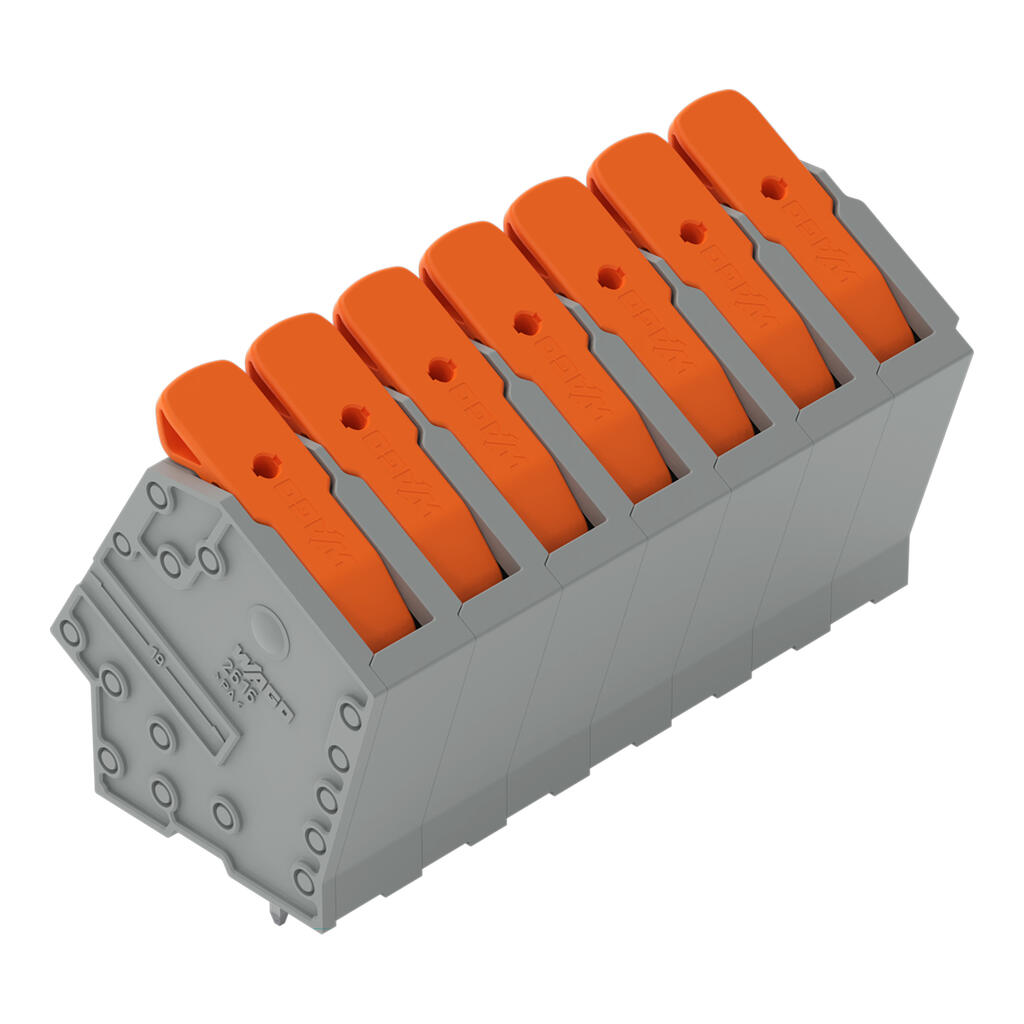

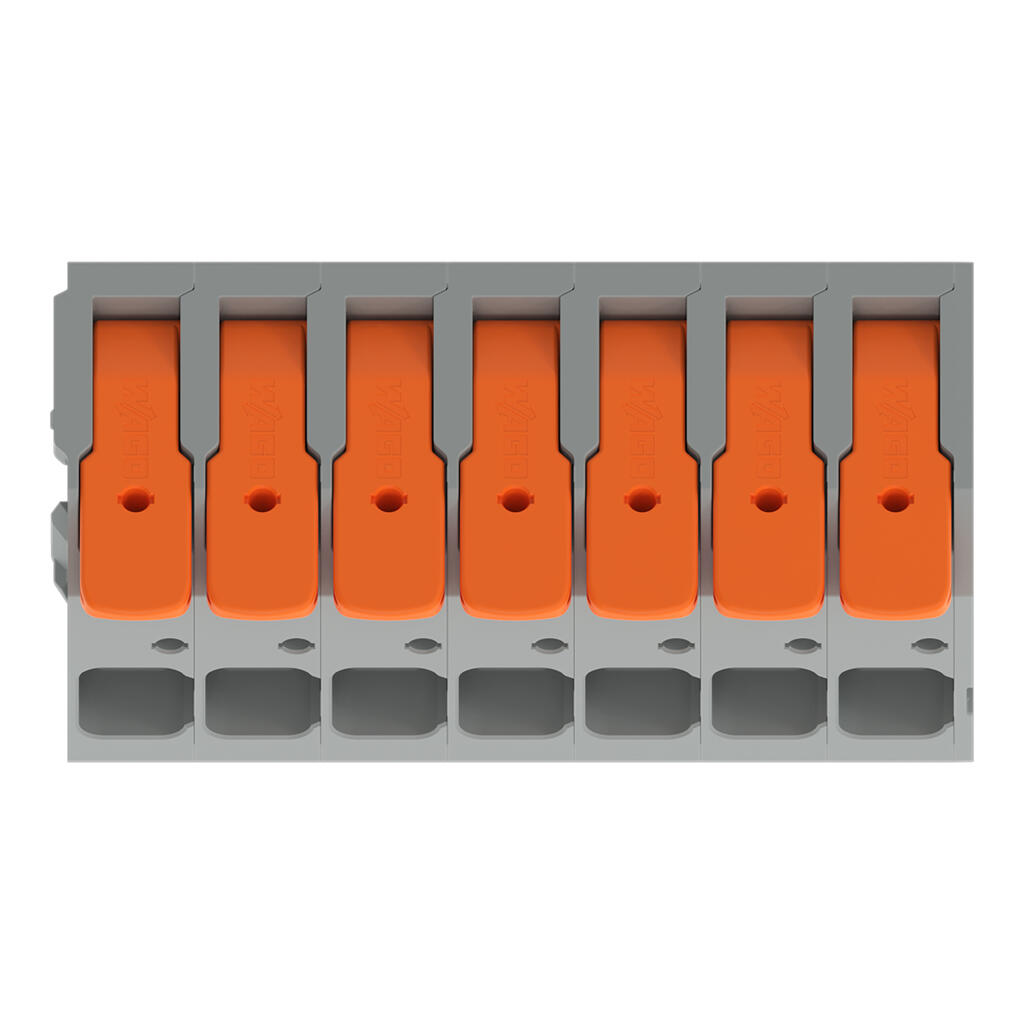

PCB terminal block, 2616 Series, with 10 mm pin spacingThis PCB terminal block (item number 2616-2107/020-000) is designed to connect conductors quickly and easily. It is ideal for custom installation…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
PCB terminal block, 2616 Series, with 10 mm pin spacingThis PCB terminal block (item number 2616-2107/020-000) is designed to connect conductors quickly and easily. It is ideal for custom installations with different mounting types. Strip lengths must be between 18 and 20 mm when connecting conductors to this PCB terminal block. This product features one conductor terminal and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. It allows direct insertion of both solid and fine-stranded conductors with ferrules without the need for tools—all thanks to its pluggable design. The dimensions are (72.85 x 47.4 x 39.5) mm (width x height x depth). Depending on the type of conductor, this PCB terminal block is ideal for conductor cross sections ranging from 0.75 mm² to 16 mm².Tin is used for coating the contact surfaces. This PCB terminal block is operated with a lever. THT is used to assemble the PCB terminal block. Insert the conductor into the board at a 30° angle..
Specification
Notes
| Variants: | Other pole numbers, Direct marking, Other colors, Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/. |
|---|
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 1000 V |
| Rated impulse withstand voltage (III / 3) | 8 kV |
| Rated voltage (III/2) | 1000 V |
| Rated impulse withstand voltage (III/2) | 8 kV |
| Nominal voltage (II/2) | 1000 V |
| Rated impulse withstand voltage (II/2) | 8 kV |

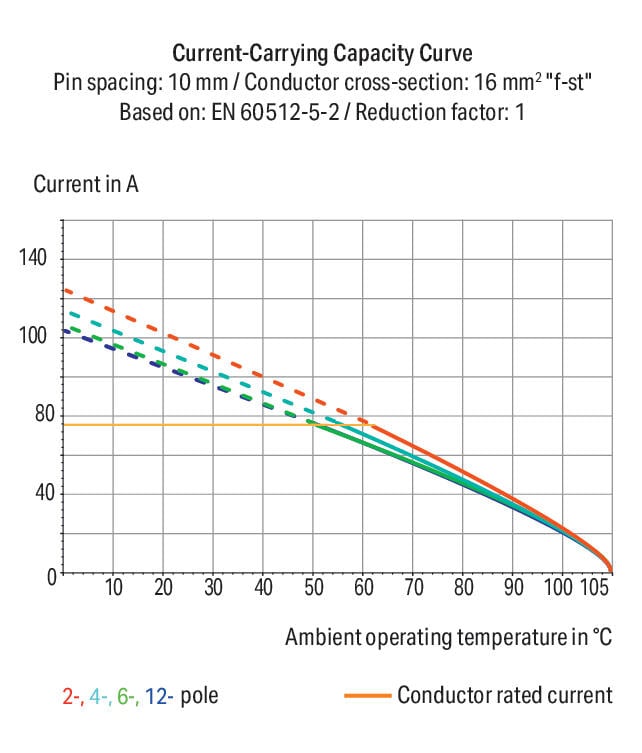

| Rated current | 76 A |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 1000 V / 1000 V / 1000 V |
| Rated impulse withstand voltage | 8 kV / 8 kV / 8 kV |
| Rated current | 76 A / 76 A / 76 A |
Electrical data - Ratings per UL
| Approvals per | UL 1059 |
|---|---|
| Rated voltage UL (Use Group B) | 600 V |
| Rated current UL (Use Group B) | 66 A |
| Rated voltage UL (Use Group C) | 600 V |
| Rated current UL (Use Group C) | 66 A |
| Approvals per | UL 1059 / UL 1059 / UL 1059 |
| Use group | B / C / D |
| Rated voltage | 600 V / 600 V |
| Rated current | 66 A / 66 A |
Electrical data - Ratings per CSA
| Approvals per | CSA |
|---|---|
| Rated voltage CSA (Use Group B) | 600 V |
| Rated current CSA (Use Group B) | 66 A |
| Rated voltage CSA (Use Group C) | 600 V |
| Rated current CSA (Use Group C) | 66 A |
| Approvals per | CSA / CSA / CSA |
| Use group | B / C / D |
| Rated voltage | 600 V / 600 V |
| Rated current | 66 A / 66 A |
Connection data
| Clamping units | 7 |
|---|---|
| Total number of potentials | 7 |
| Number of connection types | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Actuation type | Lever |
| Solid conductor | 0.75 … 16 mm² / 18 … 4 AWG |
| Fine-stranded conductor | 0.75 … 25 mm² / 18 … 4 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.75 … 16 mm² |
| Fine-stranded conductor; with uninsulated ferrule | 0.75 … 16 mm² |
| Fine-stranded conductor; with twin ferrule | 0.75 … 6 mm² |
| Strip length | 18 … 20 mm / 0.71 … 0.79 inches |
| Conductor connection direction to PCB | 30 ° |
| Pole number | 7 |

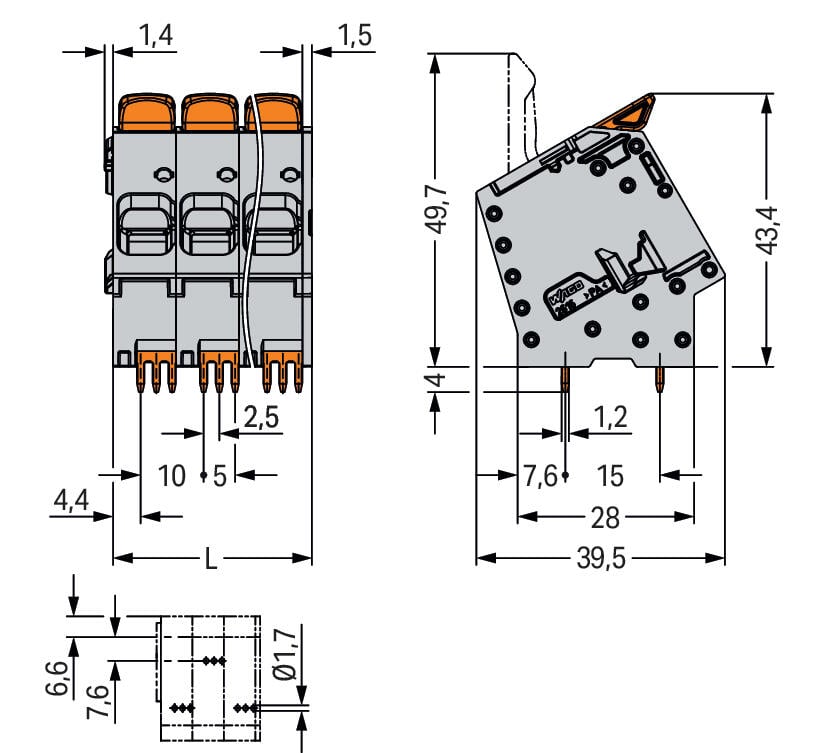

Physical data
| Pin spacing | 10 mm / 0.394 inches |
|---|---|
| Width | 72.85 mm / 2.868 inches |
| Height | 47.4 mm / 1.866 inches |
| Height from the surface | 43.4 mm / 1.709 inches |
| Depth | 39.5 mm / 1.555 inches |
| Solder pin length | 4 mm |
| Solder pin dimensions | 1.2 x 1.2 mm |
| Drilled hole diameter with tolerance | 1.7 (+0.1) mm |
PCB contact
| PCB contact | THT |
|---|---|
| Solder pin arrangement | over the entire terminal strip (staggered) |
| Number of solder pins per potential | 3 |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Copper alloy |
| Contact plating | Tin |
| Fire load | 1.331 MJ |
| Actuator color | orange |
| Weight | 75.6 g |
Environmental requirements
| Limit temperature range | -60 … +105 °C |
|---|---|
| Processing temperature | -35 … +60 °C |
Commercial data
| PU (SPU) | 14 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | CH |
| GTIN | 4066966732627 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121409 |
|---|---|
| ETIM 9.0 | EC002643 |
| ETIM 10.0 | EC002643 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
