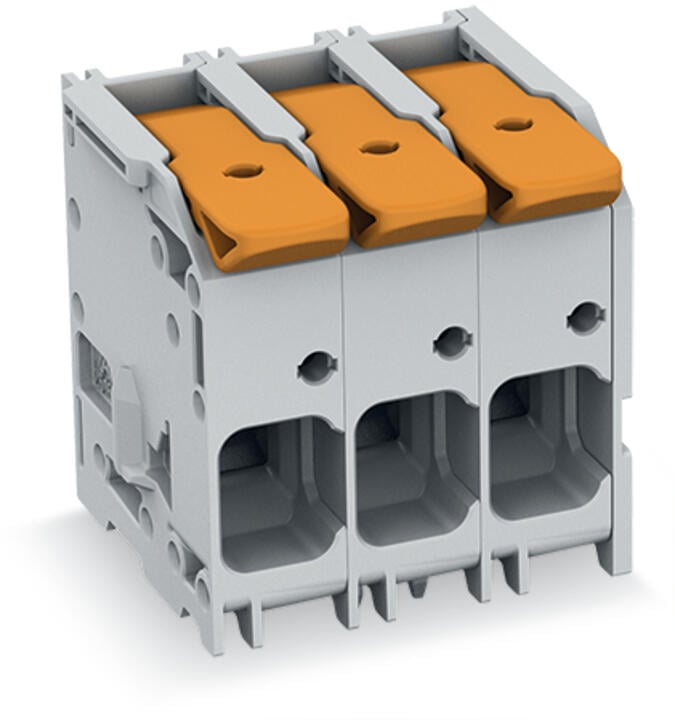

Wago 2616-1112/020-000

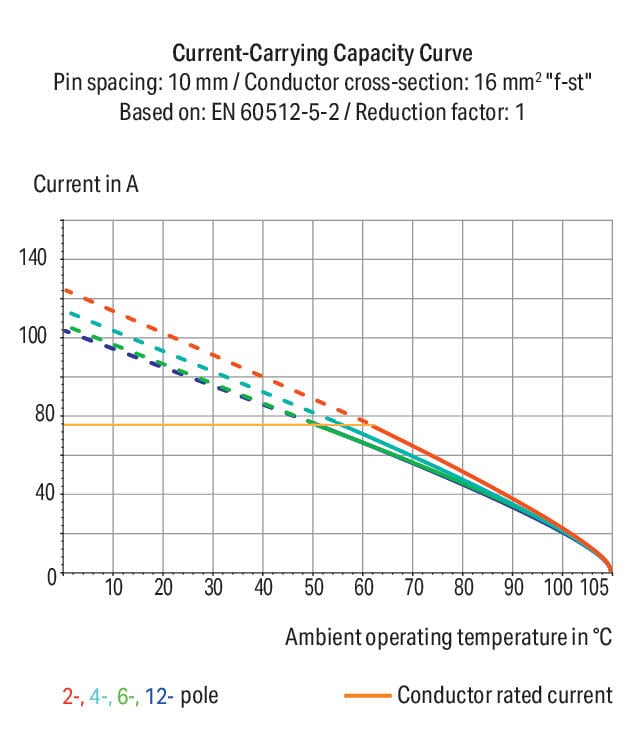

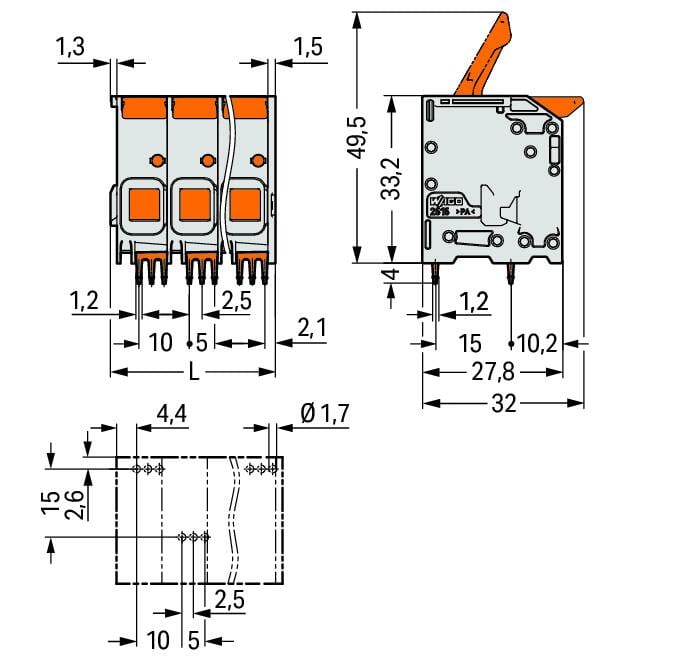

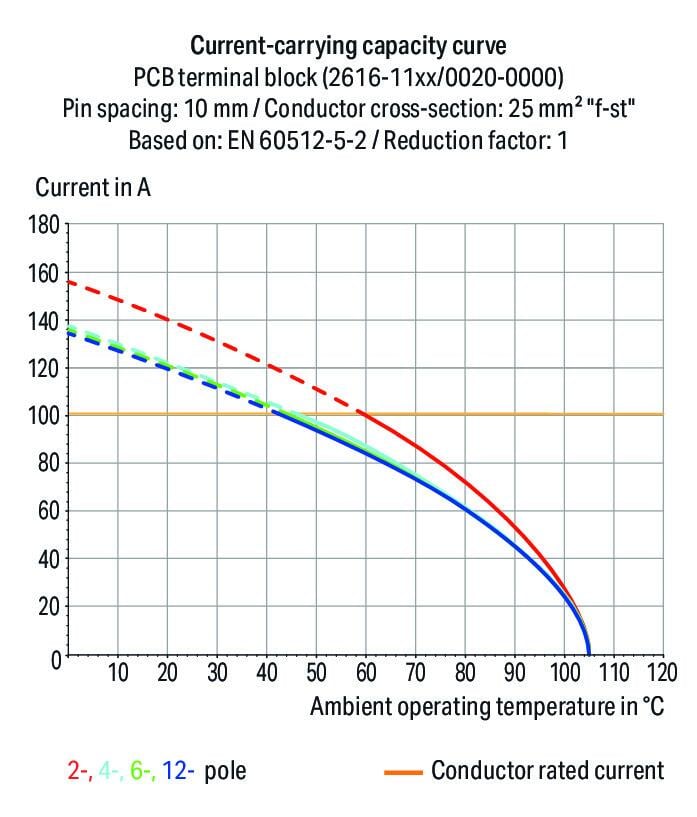

PCB terminal block, 2616 Series, leverOur PCB terminal block (item number 2616-1112/020-000) makes connections quick and easy. It is perfect for custom installations with different mounting types. Our PCB terminal block is rated for 1000 V and is designed to handle a rated current of up to 76 A. As such, it is suitable for high-load applications. Strip lengths must be between 18 mm and 20 mm when connecting conductors to this PCB terminal block. Featuring one conductor terminal along with Push-in CAGE CLAMP®, this connector delivers reliable performance. Push-in CAGE CLAMP® technology provides a universal connection solution for any type of conductor. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. The dimensions are 122.8 x 37.2 x 32 mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.75 mm² to 16 mm². Up to twelve potentials / twelve poles can be connected to this terminal strip using twelve clamping points on one level. The clamping spring is made of chrome-nickel spring steel (CrNi), the contacts are made of electrolytic copper (ECu), and the gray housing is made of polyamide (PA66) for insulation. Tin is used for coating the contact surfaces. A lever is used to operate this PCB terminal block. THT is used to assemble the PCB terminal block. The conductor is designed to be inserted at an angle of 0°.. The solder pins, which are 1.2 x 1.2 mm in cross-section and 4 mm long, are laid out over the entire terminal strip (staggered). There are three solder pins per potential.
