Wago 2616-1105/020-015

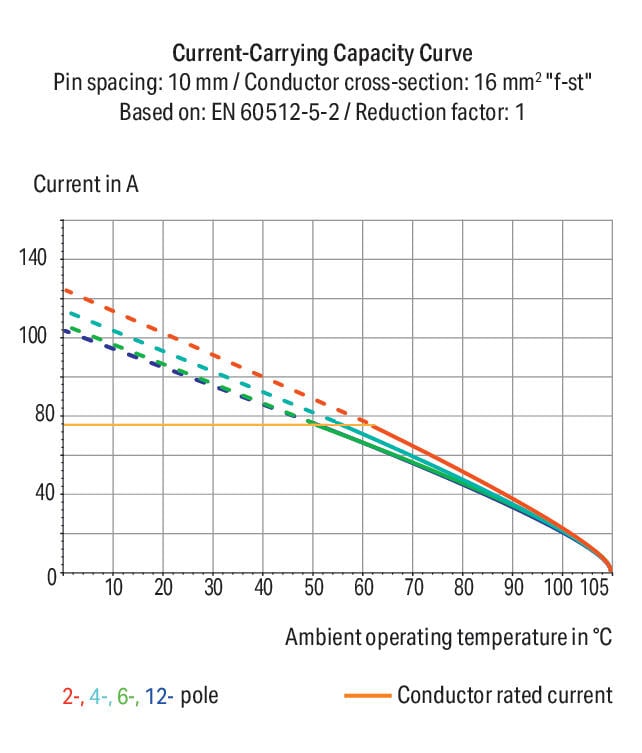

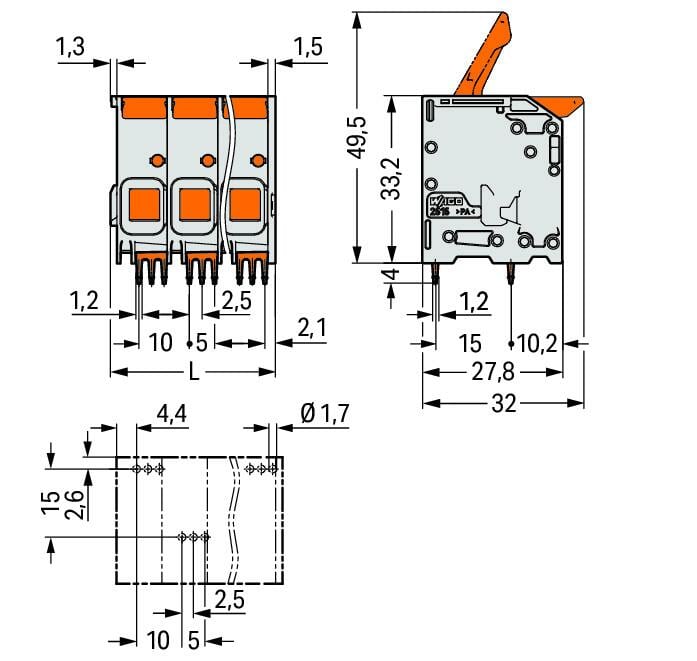

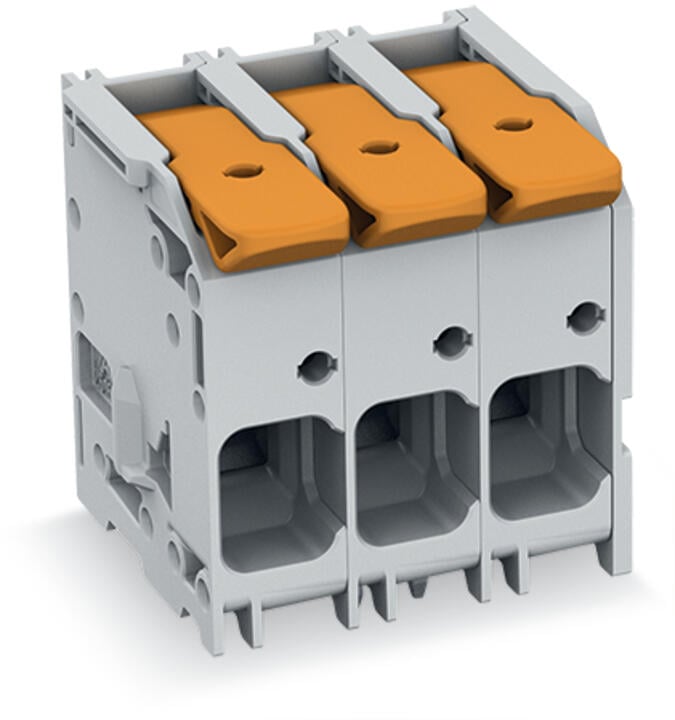

PCB terminal block, 2616 Series, with 10 mm pin spacingOur PCB terminal block (item number 2616-1105/020-015) is the ideal way to connect conductors quickly and securely. It offers the flexibility needed for different mounting types. Rated current and voltage are important parameters when choosing a PCB terminal block, as they indicate possible applications and uses. This product has a rated voltage of 1000 V and a rated current of 76 A, making it suitable for high-load applications. Ensure that the strip lengths are between 18 mm and 20 mm when connecting conductors to this PCB terminal block. This product features one conductor terminal and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® technology provides a universal connection solution for all conductor types. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. Dimensions: 52.8 x 37.2 x 32 mm (width x height x depth). Depending on the type of conductor, this PCB terminal block is designed for conductor cross sections ranging from 0.75 mm² to 16 mm². It has one level. You can connect five potentials / five poles using the five clamping points. The clamping spring is made of chrome-nickel spring steel (CrNi), the gentian blue housing is made of polyamide (PA66) for insulation, and the contacts are made of electrolytic copper (ECu). Tin is used for coating the contact surfaces. A lever is used to operate this PCB terminal block. THT is used to solder the PCB terminal block. Insert the conductor into the board at an angle of 0°.. The solder pins are organized over the entire terminal strip (staggered) and are 1.2 x 1.2 mm and 4 mm in length. Each potential has three solder pins.
