Wago 2616-1102/020-016

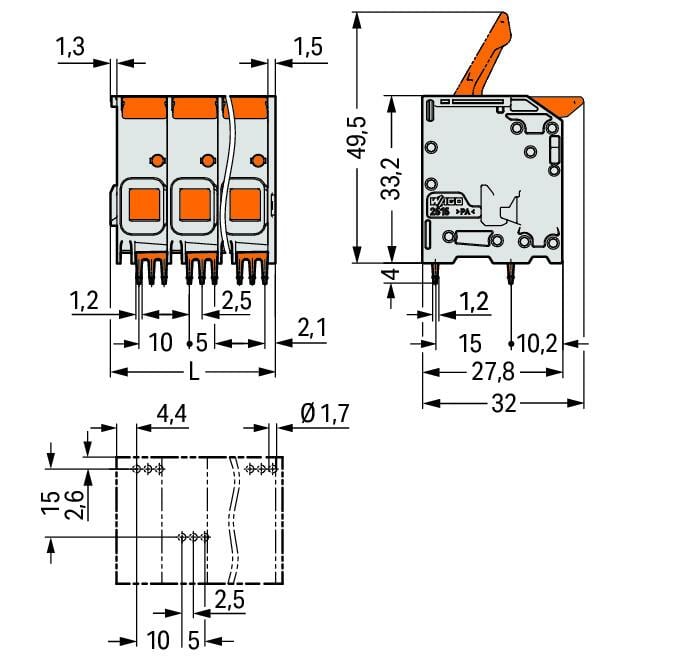

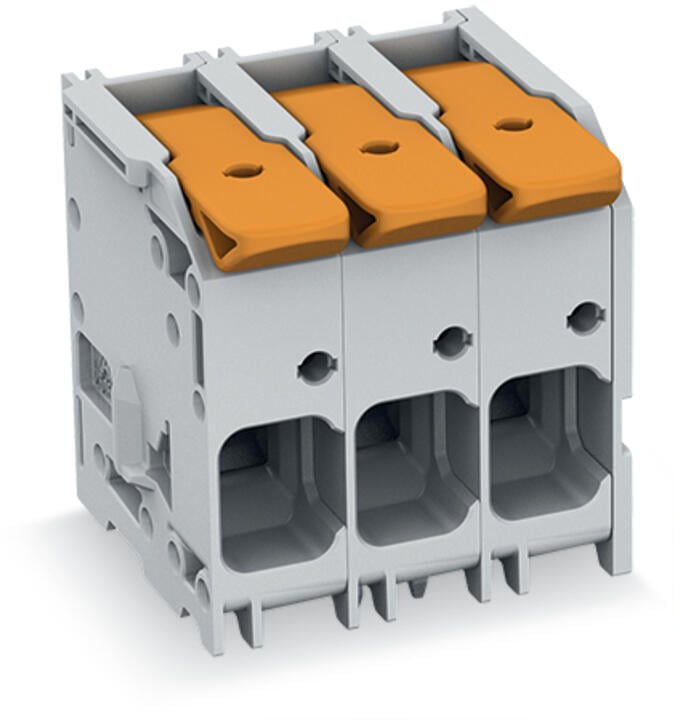

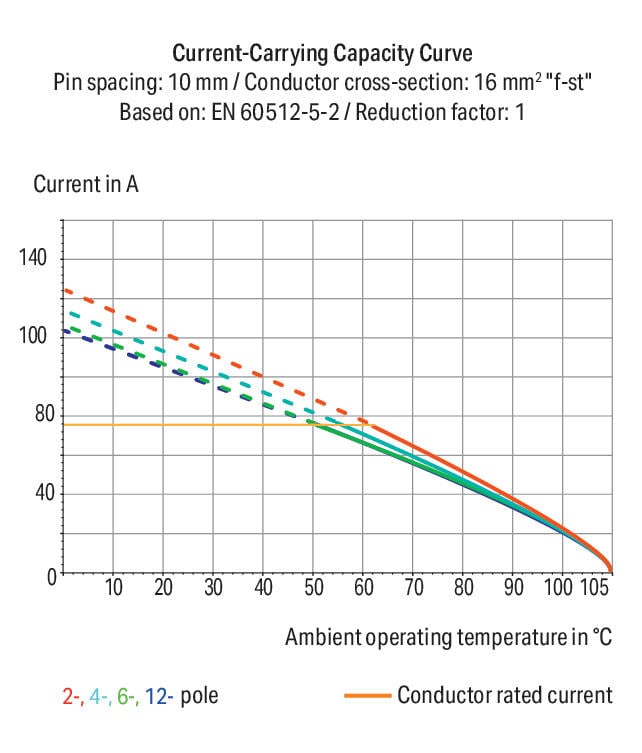

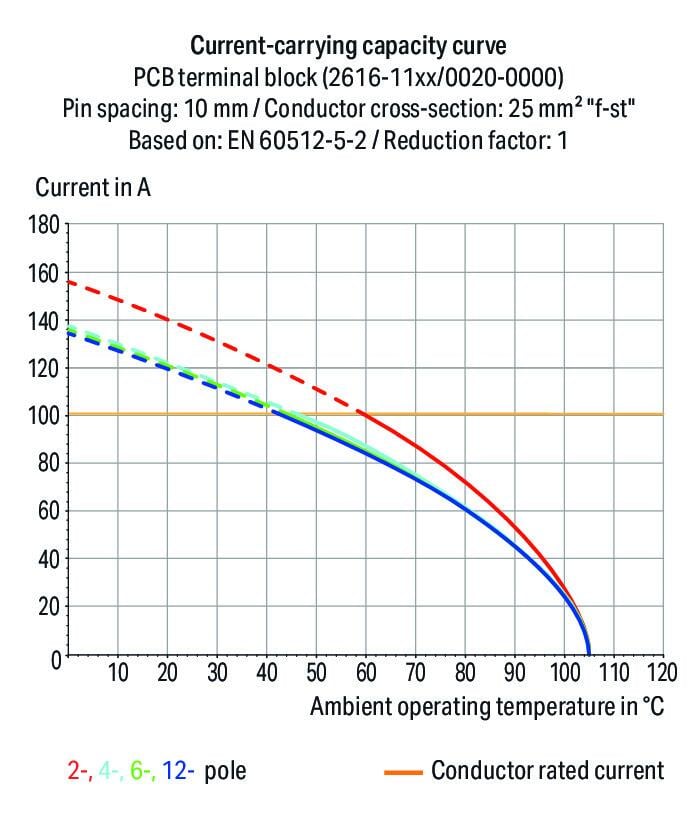

PCB terminal block, 2616 Series, leverConnecting conductors is quick and easy with this PCB terminal block (item number 2616-1102/020-016). You can count on proven safety with these PCB terminal blocks, perfect for a wide range of applications when designing your devices. Rated current and voltage are important parameters when selecting a PCB terminal block, as they indicate possible applications and uses. This product has a rated voltage of 1000 V and a rated current of 76 A, making it suitable for high-load applications. Strip lengths must be between 18 mm and 20 mm when connecting conductors to this PCB terminal block. Featuring one conductor terminal along with Push-in CAGE CLAMP®, this connector delivers reliable performance. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. Both solid and fine-stranded conductors with ferrules can be pushed in without the need for tools—all thanks to its pluggable design. Dimensions: 22.8 x 37.2 x 32 mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.75 mm² to 16 mm². It has one level. Two potentials can connect two poles using the two clamping points The contacts are made of electrolytic copper (ECu), the clamping spring is made of chrome-nickel spring steel (CrNi), and the green-yellow housing is made of polyamide (PA66) for insulation. The contact surface is coated with tin. This PCB terminal block is operated with a lever. The PCB terminal block is designed for THT soldering. The conductor is designed to be inserted at an angle of 0°.. The solder pins are organized over the entire terminal strip (staggered). They are 1.2 x 1.2 mm and 4 mm in length. Each potential has three solder pins.
