Wago 2604-1307

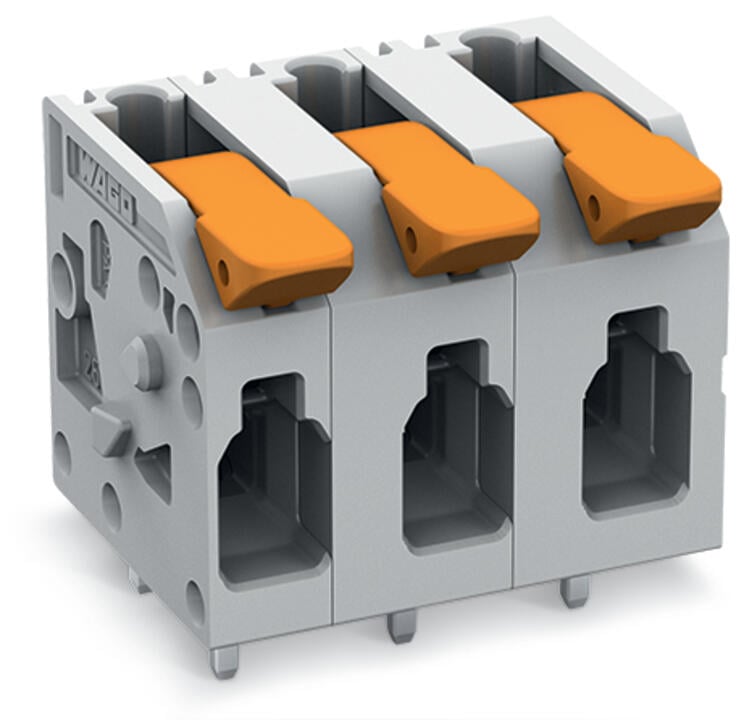

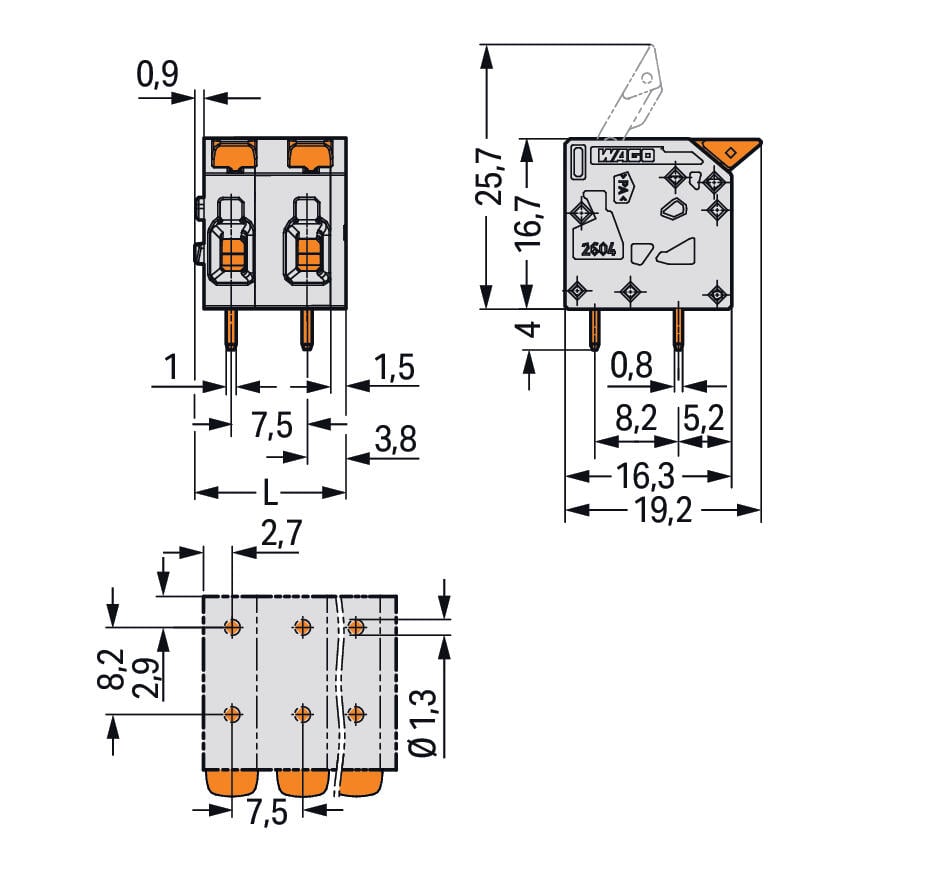

PCB terminal block, 2604 Series, leverQuick and easy connections are guaranteed with this PCB terminal block (item number 2604-1307). It offers the flexibility needed for different mounting types. Our PCB terminal block is rated for 1000 V and is designed to handle a rated current of up to 32 A. As such, it is suitable for high-load applications. Ensure that the strip lengths are between 9 mm and 11 mm when connecting conductors to this PCB terminal block. This product features one conductor terminal and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing to use any tools—all thanks to its pluggable design. Dimensions: 52.4 x 20.7 x 19.2 mm (width x height x depth). Depending on the type of conductor, this PCB terminal block is designed for conductor cross sections ranging from 0.2 mm² to 4 mm². Up to seven potentials / seven poles can be connected to this terminal strip using seven clamping points on one level. The gray housing is made of polyamide (PA66) for insulation, the contacts are made of electrolytic copper (ECu), and the clamping spring is made of chrome-nickel spring steel (CrNi). The contact surface is coated with tin. This PCB terminal block is operated with a lever. THT is used to assemble the PCB terminal block. Insert the conductor at a 0° angle.. The solder pins are organized over the entire terminal strip (in-line). They are 0.8 x 1 mm and 4 mm in length. Each potential has two solder pins.
