Wago 250-706/000-023

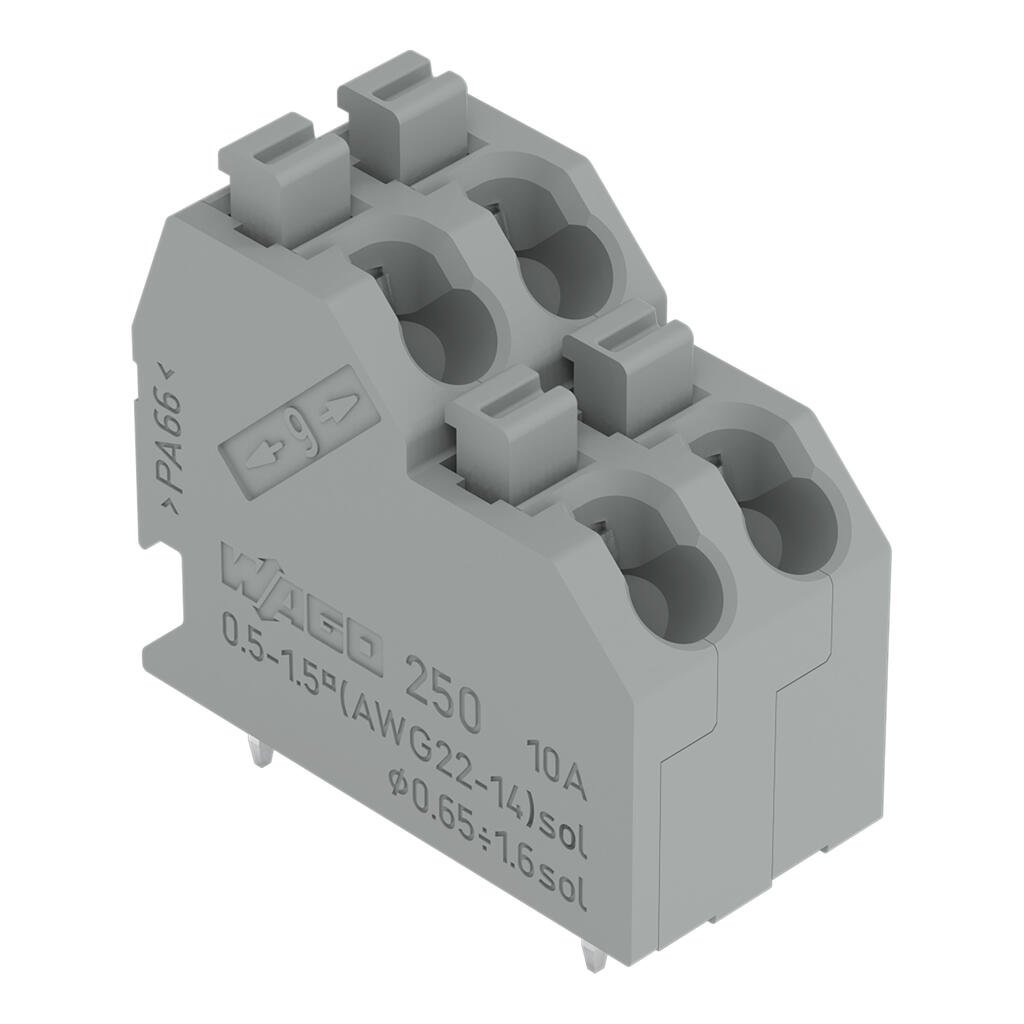

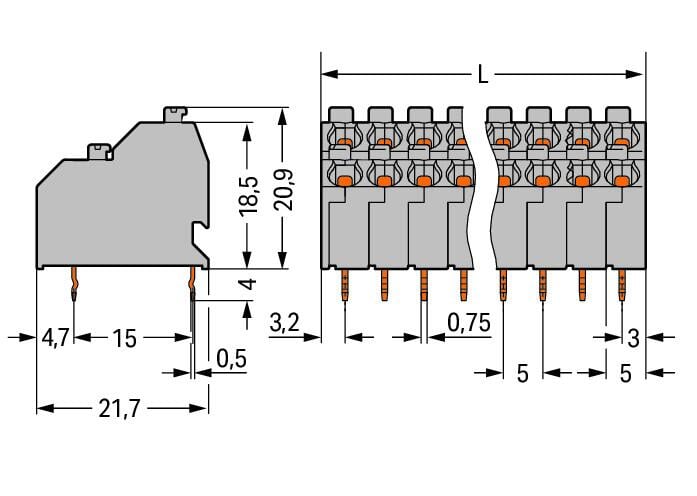

PCB terminal block, 250 Series, greenThis PCB terminal block (item number 250-706/000-023) is designed for easy and secure connections. You can count on tried and tested safety with these PCB terminal blocks, perfect for a host of applications when designing your devices. This PCB terminal block has a rated voltage of 320 V and can handle currents up to 10 A. Conductors can only be connected to this PCB terminal block if their strip length is between 9 mm and 10 mm. This product features one conductor terminal and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® technology provides a universal connection solution for any type of conductor. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. Dimensions: 31.2 x 24.9 x 21.7 mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.5 mm² to 1.5 mm². Up to twelve potentials / twelve poles can be connected to this terminal strip using twelve clamping points on two levels. The clamping spring is made of chrome-nickel spring steel (CrNi), the green housing is made of polyamide (PA66) for insulation, and the contacts are made of electrolytic copper (ECu). The contact surface is coated with tin. This PCB terminal block is operated with a push-button. The PCB terminal block is designed for THT soldering. The conductor is designed to be inserted at an angle of 45°.. The solder pins measure 0.5 x 0.75 mm in cross-section and 4 mm in length and are arranged over the entire terminal strip (in-line). There are one solder pin per potential.
