Wago 250-602/000-012

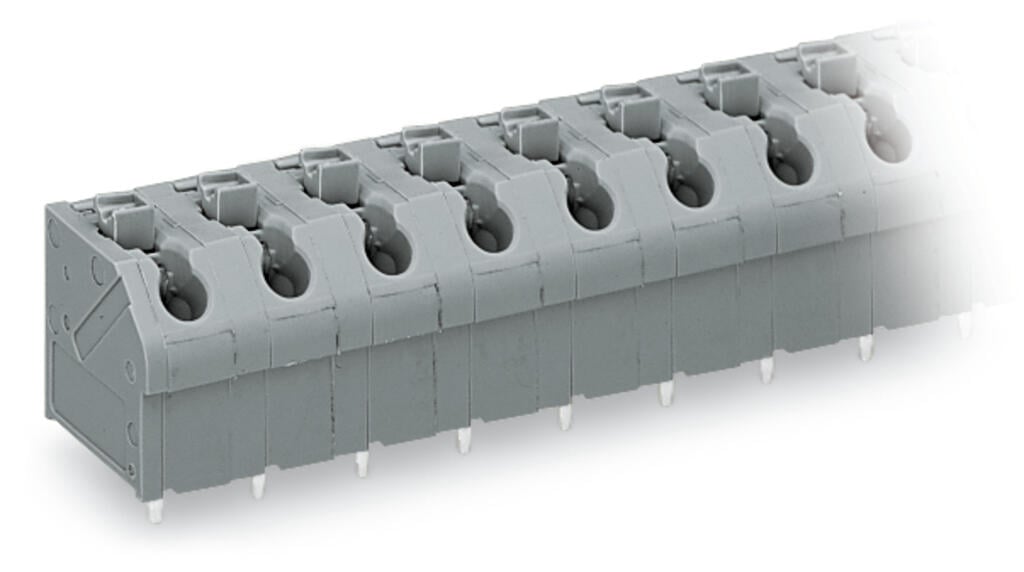

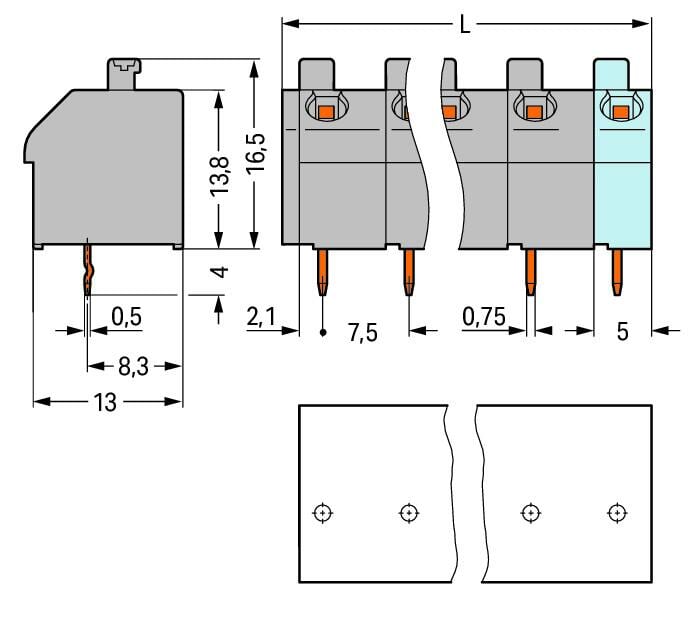

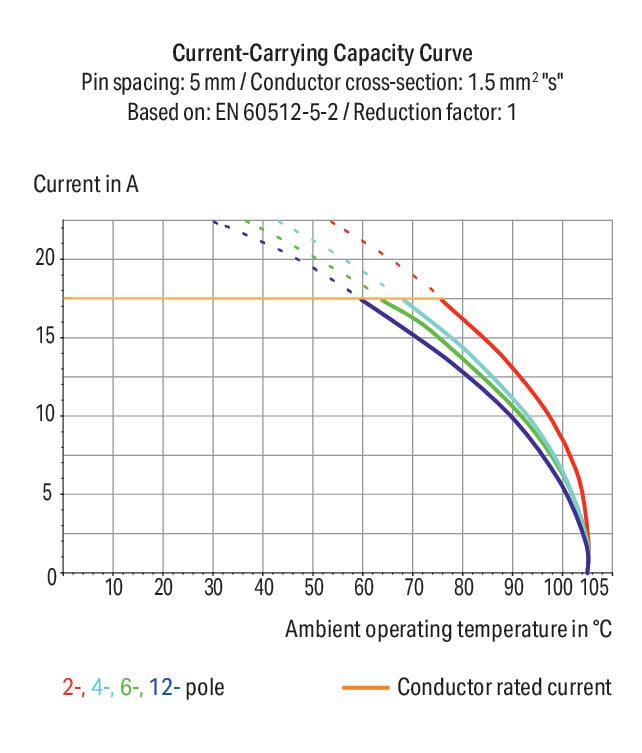

PCB terminal block, 250 Series, 45 °conductor entry to boardThis PCB terminal block (item number 250-602/000-012) is designed to connect conductors quickly and easily. It offers the flexibility needed for different mounting types. Rated current and voltage are important parameters when choosing a PCB terminal block, as they indicate how the product can be used. This product has a rated voltage of 630 V and a rated current of 17.5 A, making it suitable for high-load applications. Strip lengths must be between 9 mm and 10 mm when connecting conductors to this PCB terminal block. This product features one conductor terminal and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® technology provides a universal connection solution for all conductor types. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. The item’s dimensions are 14 x 20.5 x 13 mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.5 mm² to 1.5 mm². It features one level and two clamping points that you can use to connect two potentials / 2 poles. The contacts are made of electrolytic copper (ECu), the clamping spring is made of chrome-nickel spring steel (CrNi), and the orange housing is made of polyamide (PA66) for insulation. Tin is used for coating the contact surfaces. A push-button is used to operate this PCB terminal block. THT is used to assemble the PCB terminal block. Insert the conductor at an angle of 45°.. The solder pins measure 0.5 x 0.75 mm in cross-section and 4 mm in length and are organized over the entire terminal strip (in-line). There are one solder pin per potential.
