Wago 250-410/353-604

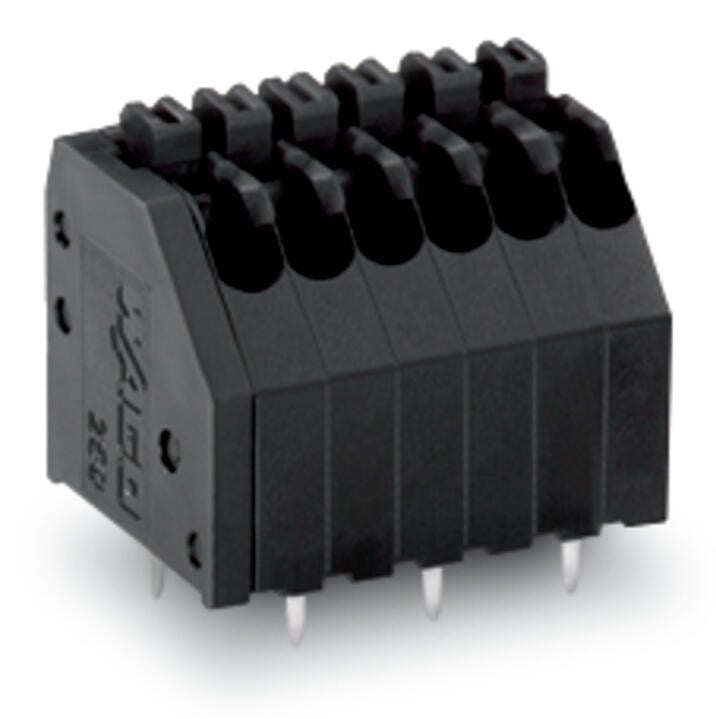

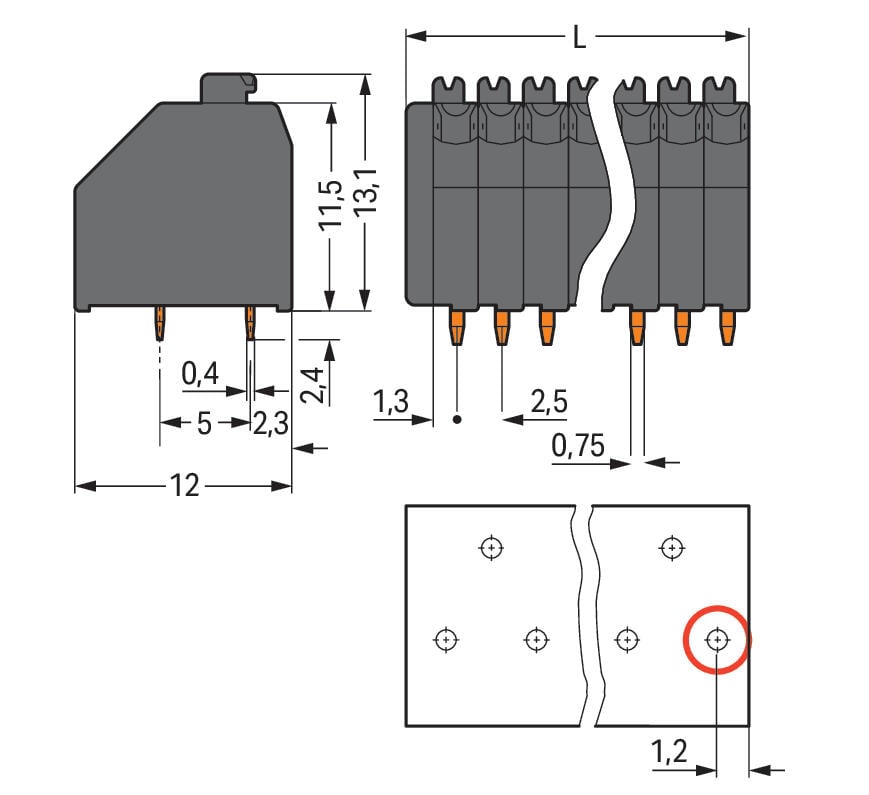

PCB terminal block, 250 Series, Push-in CAGE CLAMP®This PCB terminal block (item number 250-410/353-604) streamlines wire connections, making them both quick and easy. It is perfect for custom installations with different mounting types. Our PCB terminal block is rated for 160 V and is designed for use with a rated current of up to 4 A. Conductors can only be connected to this PCB terminal block if their strip length is between 8.5 mm and 9.5 mm. This product features one conductor terminal and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® technology provides a universal connection solution for any type of conductor. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. Dimensions: 26.5 x 16.7 x 12 mm (width x height x depth). Depending on the conductor type, this PCB terminal block is suitable for conductor cross sections ranging from 0.14 mm² to 0.5 mm². It comes with one level and ten clamping points that you can use to connect 10 poles. The black housing is made of polyamide (PA46) for insulation and the clamping spring is made of a Copper alloy. Tin is used for coating the contact surfaces. This PCB terminal block is operated with a push-button. The PCB terminal block is designed for THR soldering. The conductor is designed to be inserted into the board at an angle of 45°.. The solder pins, which are 0.4 x 0.75 mm in cross-section and 2.4 mm long, are arranged over the entire terminal strip (staggered). There are one solder pin per potential.
