Wago 250-407/353-604

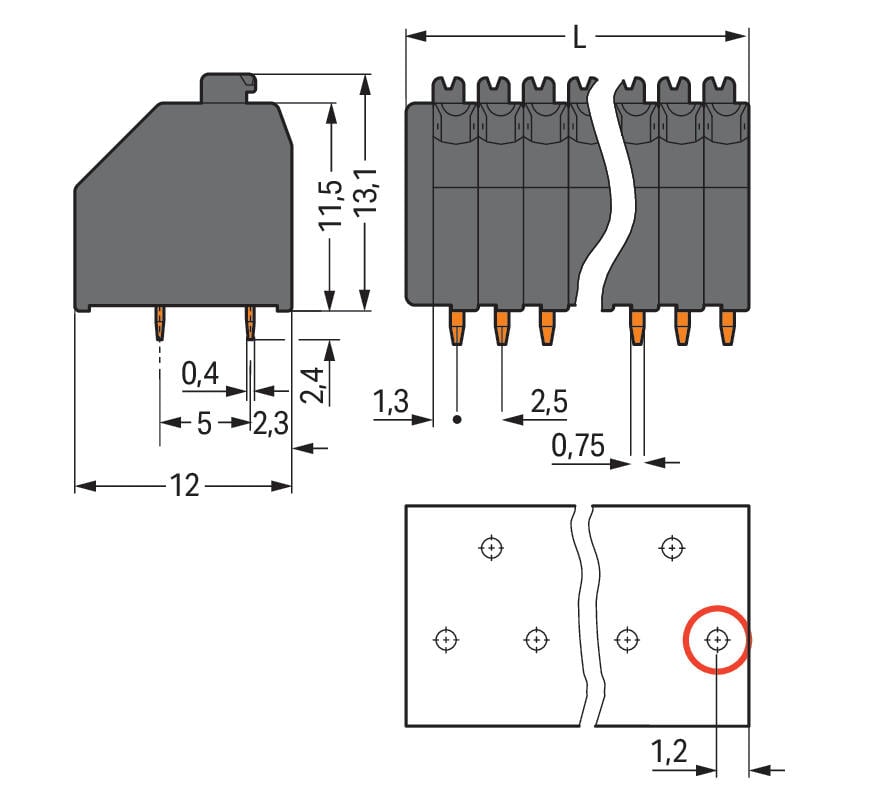

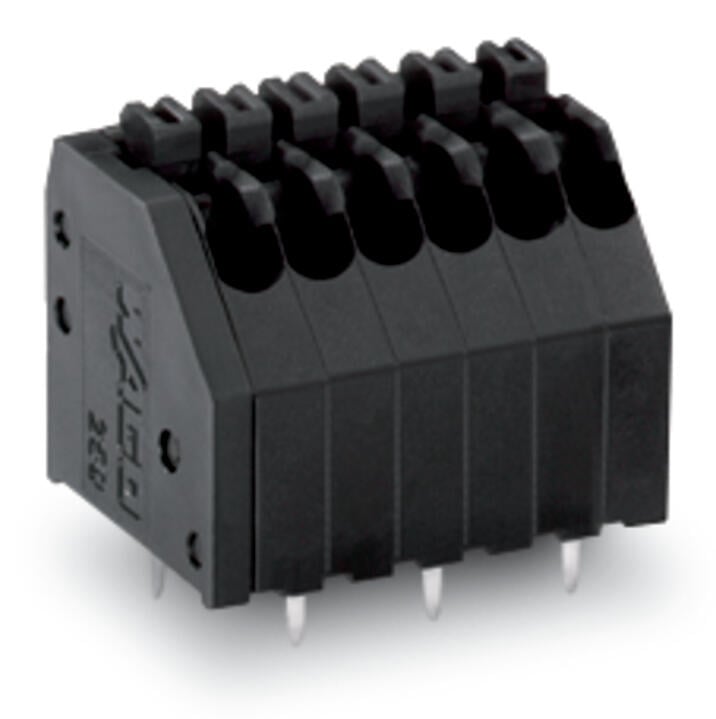

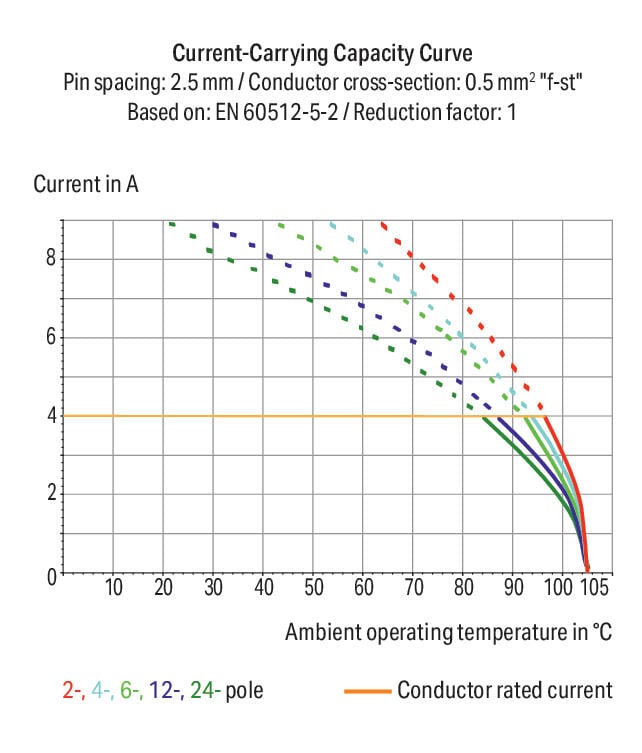

PCB terminal block, 250 Series, blackThis PCB terminal block (item number 250-407/353-604) is designed to connect conductors quickly and easily. You can rely on proven safety with these PCB terminal blocks, perfect for a wide variety of applications when designing your devices. This PCB terminal block has a rated voltage of 160 V and can handle currents up to 4 A. Strip lengths must be between 8.5 mm and 9.5 mm when connecting conductors to this PCB terminal block. This product features one conductor terminal and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® technology provides a universal connection solution for all conductor types. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. The dimensions are 19 x 16.7 x 12 mm (width x height x depth). Depending on the conductor type, this PCB terminal block is designed for conductor cross sections ranging from 0.14 mm² to 0.5 mm². It comes with one level and seven clamping points for connecting 7 poles. The clamping spring is made of a Copper alloy and the black housing is made of polyamide (PA46) for insulation. Tin is used for coating the contact surfaces. A push-button is used to operate this PCB terminal block. The PCB terminal block is designed for THR soldering. The conductor is designed to be inserted at a 45° angle.. The solder pins are organized over the entire terminal strip (staggered). They are 0.4 x 0.75 mm cross-section and 2.4 mm in length. Each potential has one solder pin.
