Wago 250-405/353-604

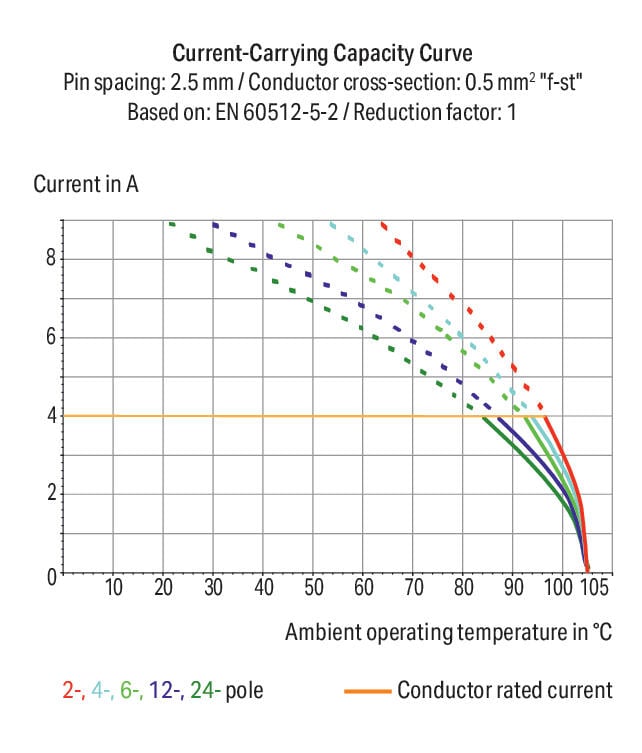

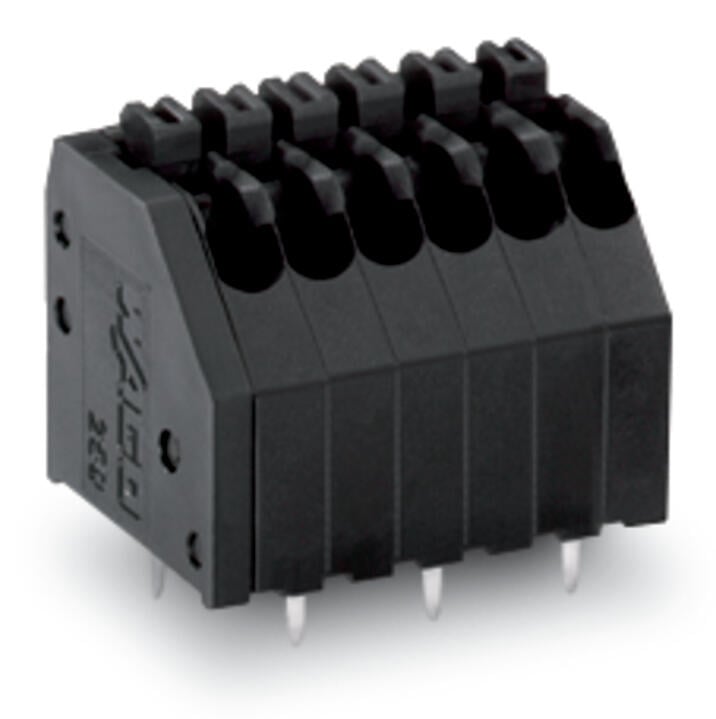

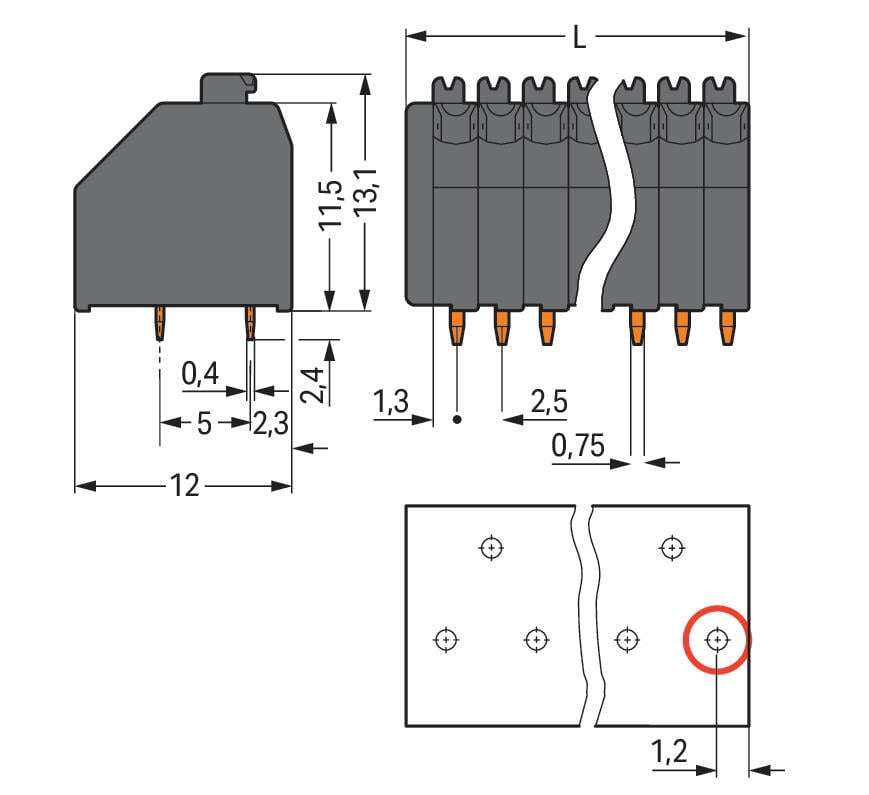

PCB terminal block, 250 Series, with 2.5 mm pin spacingEasily, quickly and safely connect conductors with this PCB terminal block (item number 250-405/353-604). You can count on tried and tested safety with these PCB terminal blocks, perfect for a host of applications when designing your devices. Rated current and voltage are important parameters when choosing a PCB terminal block, as they indicate how the product can be used. This product has a rated voltage of 160 V and a rated current of 4 A. Strip lengths must be between 8.5 mm and 9.5 mm when connecting conductors to this PCB terminal block. Featuring one conductor terminal along with Push-in CAGE CLAMP®, this connector delivers reliable performance. Push-in CAGE CLAMP® technology provides a universal connection solution for all conductor types. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. The item’s dimensions are 14 x 16.7 x 12 mm (width x height x depth). Depending on the type of conductor, this PCB terminal block is suitable for conductor cross sections ranging from 0.14 mm² to 0.5 mm². It comes with one level and five clamping points that you can use to connect 5 poles. The black housing is made of polyamide (PA46) for insulation and the clamping spring is made of a Copper alloy. Tin is used for coating the contact surfaces. This PCB terminal block is operated with a push-button. The PCB terminal block is designed for THR soldering. Insert the conductor at a 45° angle.. The solder pins are organized over the entire terminal strip (staggered). They are 0.4 x 0.75 mm and 2.4 mm in length. Each potential has one solder pin.
