Wago 250-404/353-604

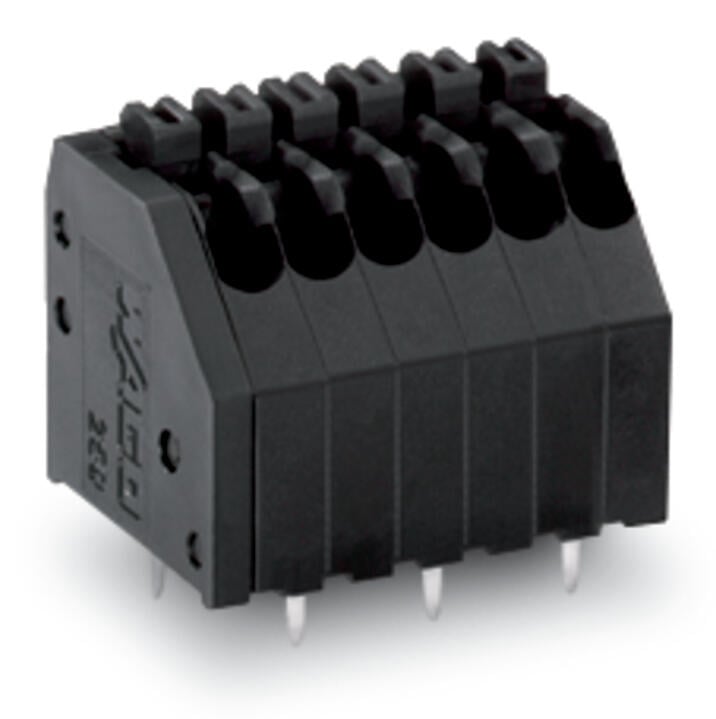

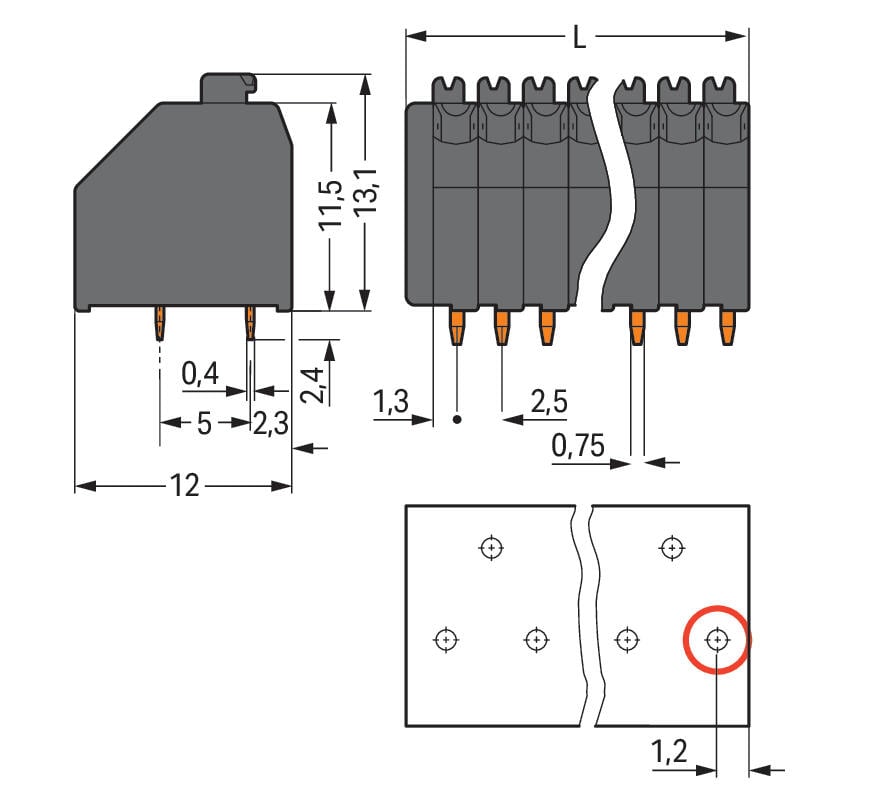

PCB terminal block, 250 Series, push-buttonThis PCB terminal block (item number 250-404/353-604) streamlines wire connections, making them both quick and easy. It offers the flexibility needed for different mounting types. Our PCB terminal block is rated for 160 V and is designed for use with a rated current of up to 4 A. Ensure that the strip lengths are between 8.5 mm and 9.5 mm when connecting conductors to this PCB terminal block. This product features one conductor terminal and utilizes Push-in CAGE CLAMP®. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, featuring a winning design: It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing tools. No preparation is required; for example, crimping the conductor’s ferrule is not necessary. Dimensions: 11.5 x 16.7 x 12 mm (width x height x depth). Depending on the type of conductor, this PCB terminal block is designed for conductor cross sections ranging from 0.14 mm² to 0.5 mm². It features one level and four clamping points for connecting 4 poles. The clamping spring is made of a Copper alloy and the black housing is made of polyamide (PA46) for insulation. The contact surface is coated with tin. This PCB terminal block is operated with a push-button. The PCB terminal block is designed for THR soldering. Insert the conductor at an angle of 45°.. The solder pins measure 0.4 x 0.75 mm in cross-section and 2.4 mm in length and are laid out over the entire terminal strip (staggered). There are one solder pin per potential.
