Wago 250-316

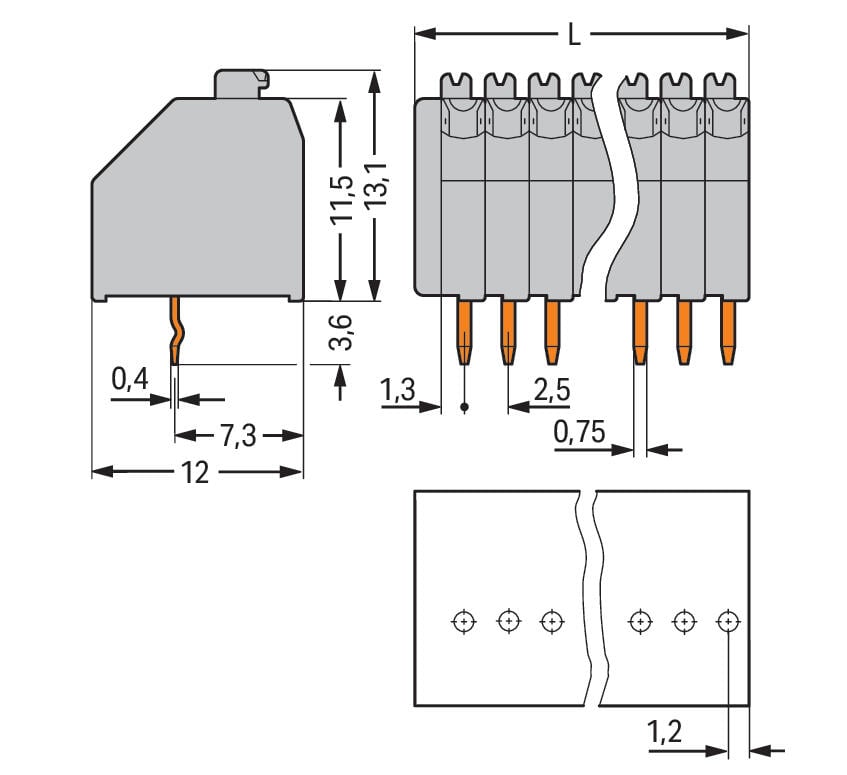

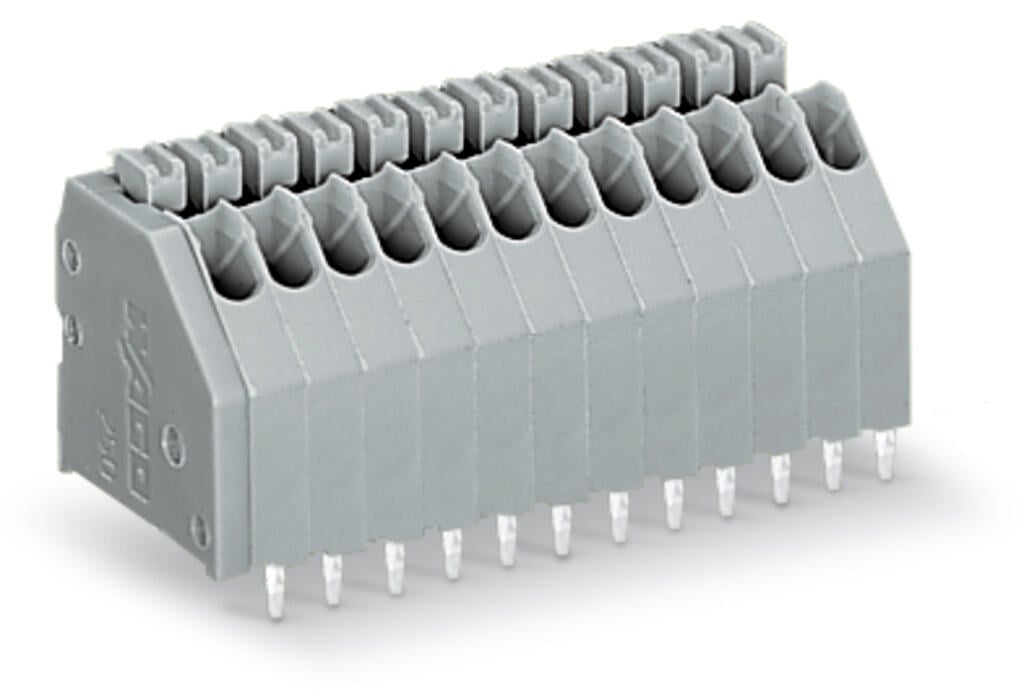

PCB terminal block, 250 Series, Push-in CAGE CLAMP®This PCB terminal block (item number 250-316) is designed for quick and simple connections. You can rely on proven safety with these PCB terminal blocks, perfect for a host of applications when designing your devices. Our PCB terminal block is rated for 160 V and is designed for use with a rated current of up to 4 A. Strip lengths must be between 8.5 mm and 9.5 mm when connecting conductors to this PCB terminal block. This product features one conductor terminal and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® technology provides a universal connection solution for all conductor types. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. The dimensions are 41.5 x 16.7 x 12 mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.14 mm² to 0.5 mm². Up to sixteen potentials / sixteen poles can be connected to this terminal strip using sixteen clamping points on one level. The gray housing is made of polyamide (PA66) for insulation and the clamping spring is made of a Copper alloy. The contact surface is coated with tin. A push-button is used to operate this PCB terminal block. THT is used to assemble the PCB terminal block. Insert the conductor into the board at a 45° angle.. The solder pins, which are 0.4 x 0.75 mm in cross-section and 3.6 mm long, are arranged over the entire terminal strip (in-line). There are one solder pin per potential.
