Wago 250-205/353-604

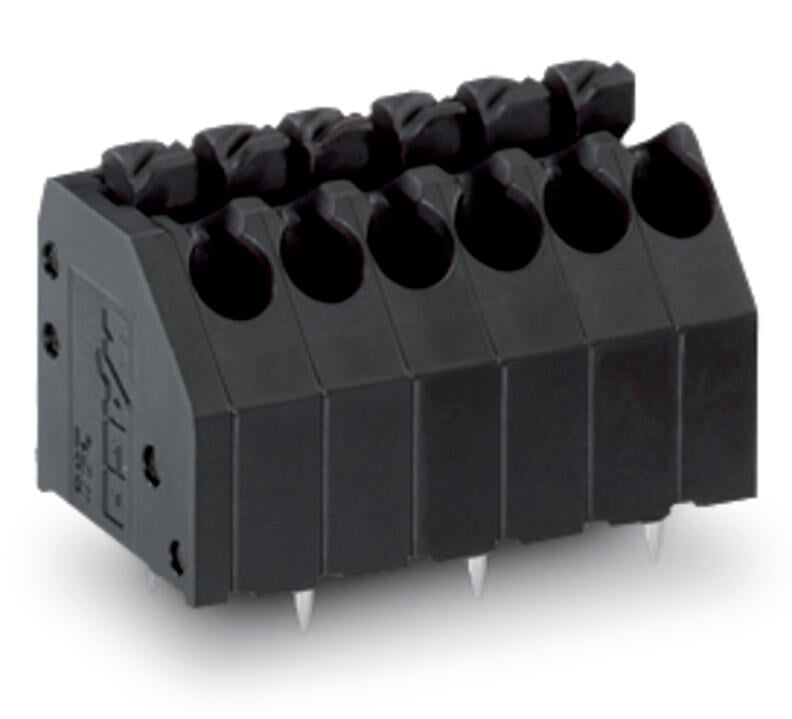

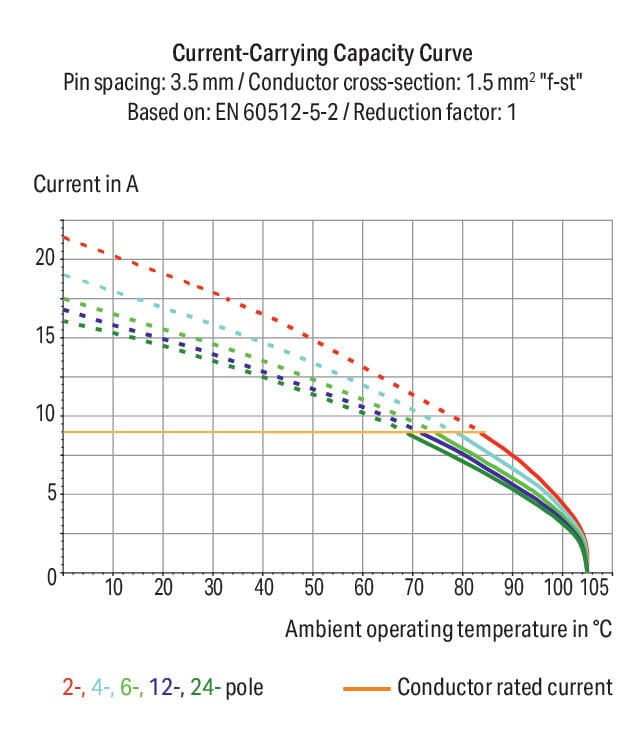

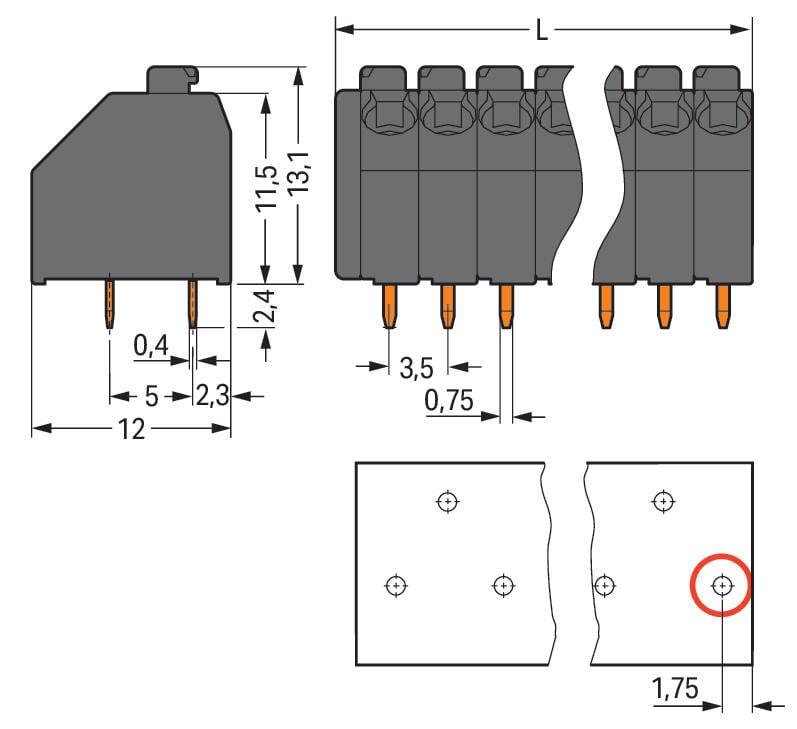

PCB terminal block, 250 Series, blackOur PCB terminal block (item number 250-205/353-604) is the ideal way to connect conductors quickly and securely. It is perfect for custom installations with different mounting types. This PCB terminal block has a rated voltage of 320 V and can handle currents up to 8 A. Conductors can only be connected to this PCB terminal block if their strip length is between 8.5 mm and 9.5 mm. This product features one conductor terminal and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. It allows direct insertion of both solid and fine-stranded conductors with ferrules without the need for tools—all thanks to its pluggable design. The item’s dimensions are 19 x 15.5 x 12 mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.2 mm² to 1.5 mm². It has one level. You can connect five potentials / five poles using the five clamping points. The black housing is made of polyamide (PA46) for insulation and the clamping spring is made of a Copper alloy. The contact surface is coated with tin. This PCB terminal block is operated with a push-button. The PCB terminal block is designed for THR soldering. Insert the conductor into the board at an angle of 45°.. The solder pins measure 0.4 x 0.75 mm in cross-section and 2.4 mm in length and are laid out over the entire terminal strip (staggered). There are one solder pin per potential.
