Wago 250-202/353-604/997-404

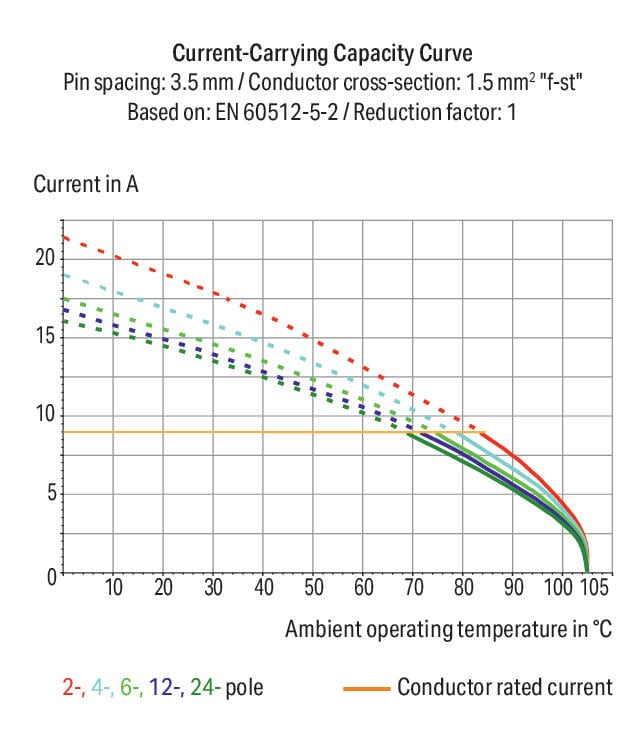

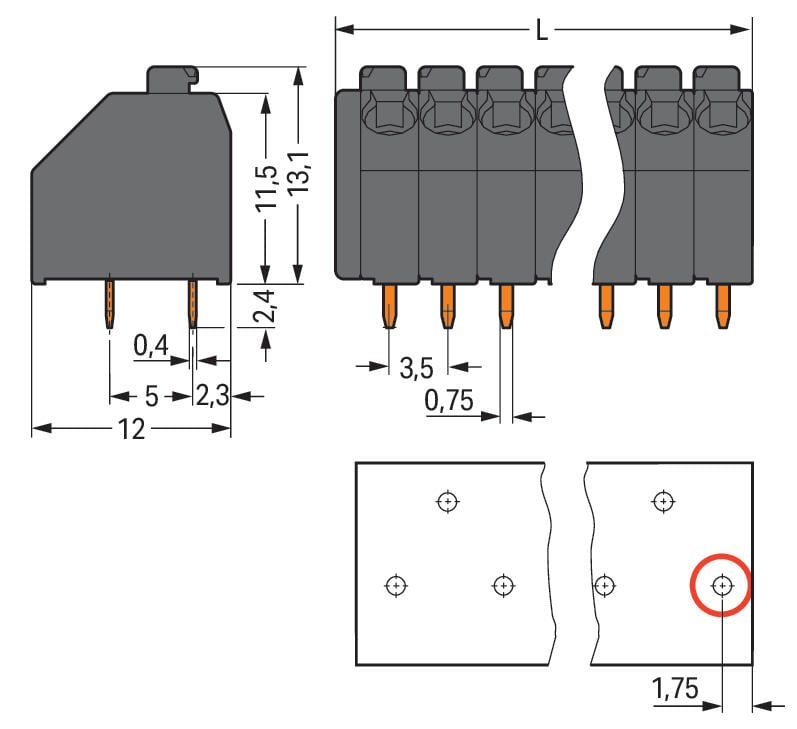

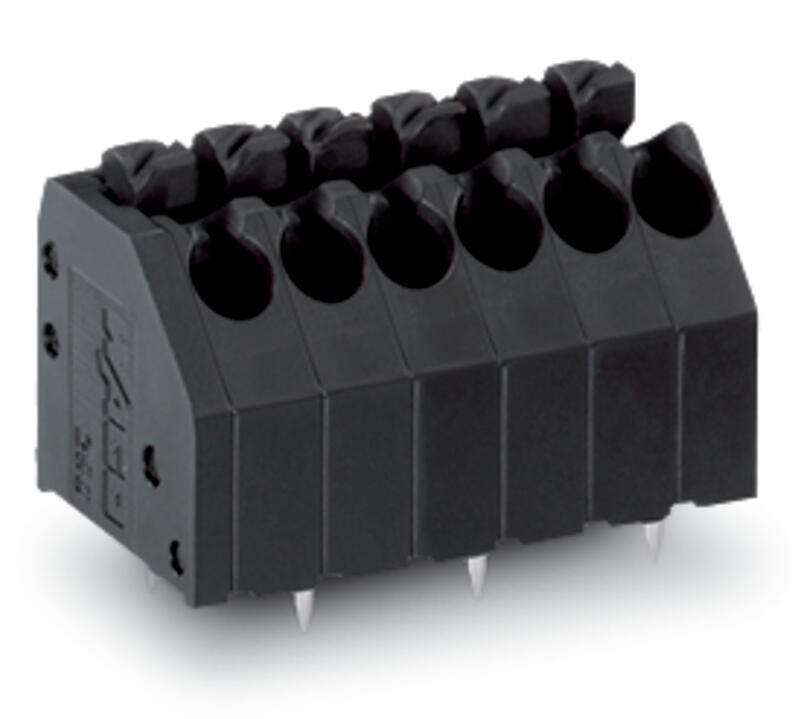

PCB terminal block, 250 Series, Push-in CAGE CLAMP®Easily, quickly and safely connect conductors with this PCB terminal block (item number 250-202/353-604/997-404). It is perfect for custom installations with different mounting types. Rated current and voltage are key factors to consider when selecting a PCB terminal block, as they indicate possible applications and uses. This product has a rated voltage of 320 V and a rated current of 8 A. Ensure that the strip lengths are between 8.5 mm and 9.5 mm when connecting conductors to this PCB terminal block. This product incorporates one conductor terminal and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. It allows direct insertion of both solid and fine-stranded conductors with ferrules without the need for tools—all thanks to its pluggable design. The item’s dimensions are 8.5 x 15.5 x 12 mm (width x height x depth). Depending on the type of conductor, this PCB terminal block is designed for conductor cross sections ranging from 0.2 mm² to 1.5 mm². Up to two potentials / two poles can be connected to this terminal strip using two clamping points on one level. The black housing is made of polyamide (PA46) for insulation and the clamping spring is made of a Copper alloy. Tin is used for coating the contact surfaces. This PCB terminal block is operated with a push-button. The PCB terminal block is designed for THR soldering. Insert the conductor into the board at a 45° angle.. The solder pins measure 0.4 x 0.75 mm in cross-section and 2.4 mm in length and are arranged over the entire terminal strip (staggered). There are one solder pin per potential.
