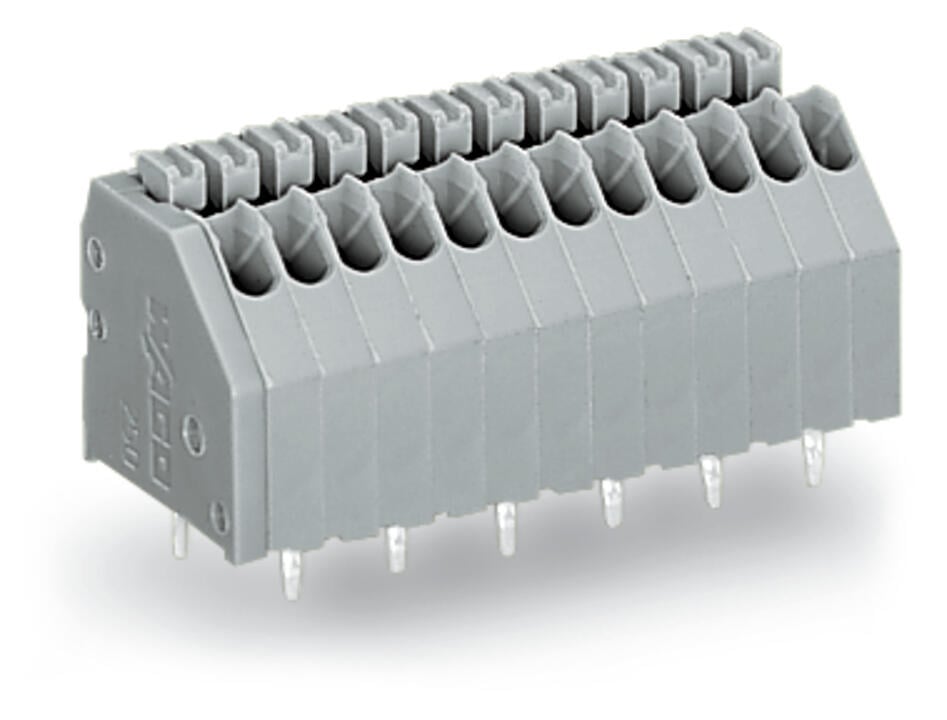

Wago 250-1410/000-012

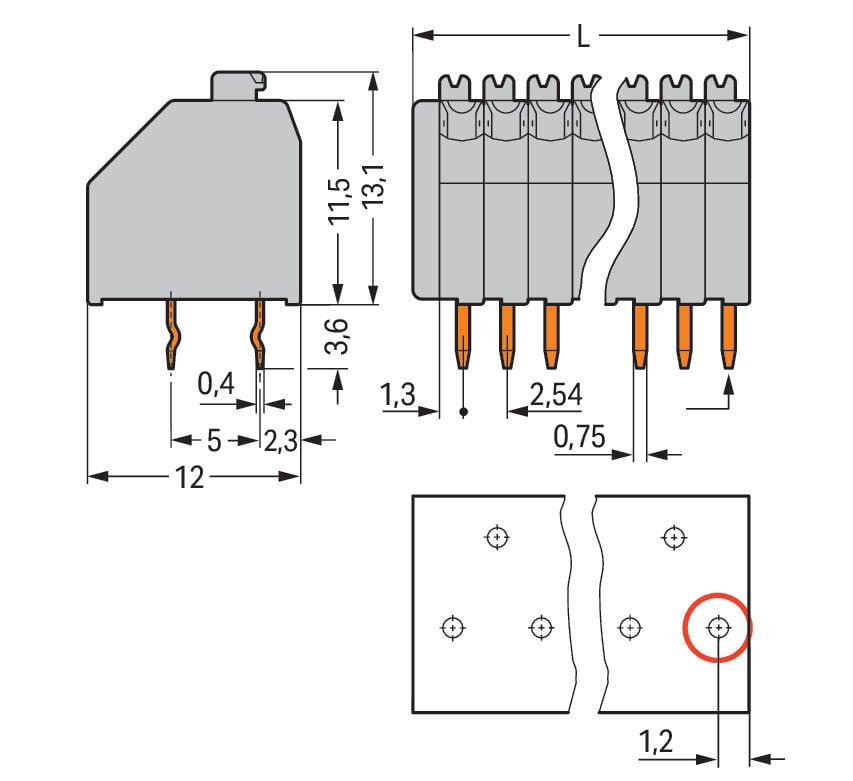

PCB terminal block, 250 Series, 45 °conductor entry to boardOur PCB terminal block (item number 250-1410/000-012) simplifies electrical installations. It is ideal for custom installations with different mounting types. Rated current and voltage are key factors to consider when selecting a PCB terminal block, as they determine the product’s suitability for different applications. This product has a rated voltage of 160 V and a rated current of 4 A. Ensure that the strip lengths are between 8.5 mm and 9.5 mm when connecting conductors to this PCB terminal block. This product incorporates one conductor terminal and utilizes Push-in CAGE CLAMP®. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, featuring a winning design: It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing tools. No preparation is required; for example, crimping the conductor’s ferrule is not necessary. The item’s dimensions are 26.9 x 16.7 x 12 mm (width x height x depth). Depending on the conductor type, this PCB terminal block is ideal for conductor cross sections ranging from 0.14 mm² to 0.5 mm². Up to ten potentials / ten poles can be connected to this terminal strip using ten clamping points on one level. The orange housing is made of polyamide (PA66) for insulation and the clamping spring is made of a Copper alloy. The contact surface is coated with tin. A push-button is used to operate this PCB terminal block. The PCB terminal block is designed for THT soldering. The conductor is designed to be inserted into the board at a 45° angle.. The solder pins, which are 0.4 x 0.75 mm in cross-section and 3.6 mm long, are set out over the entire terminal strip (staggered). There are one solder pin per potential.
