Wago 249-144

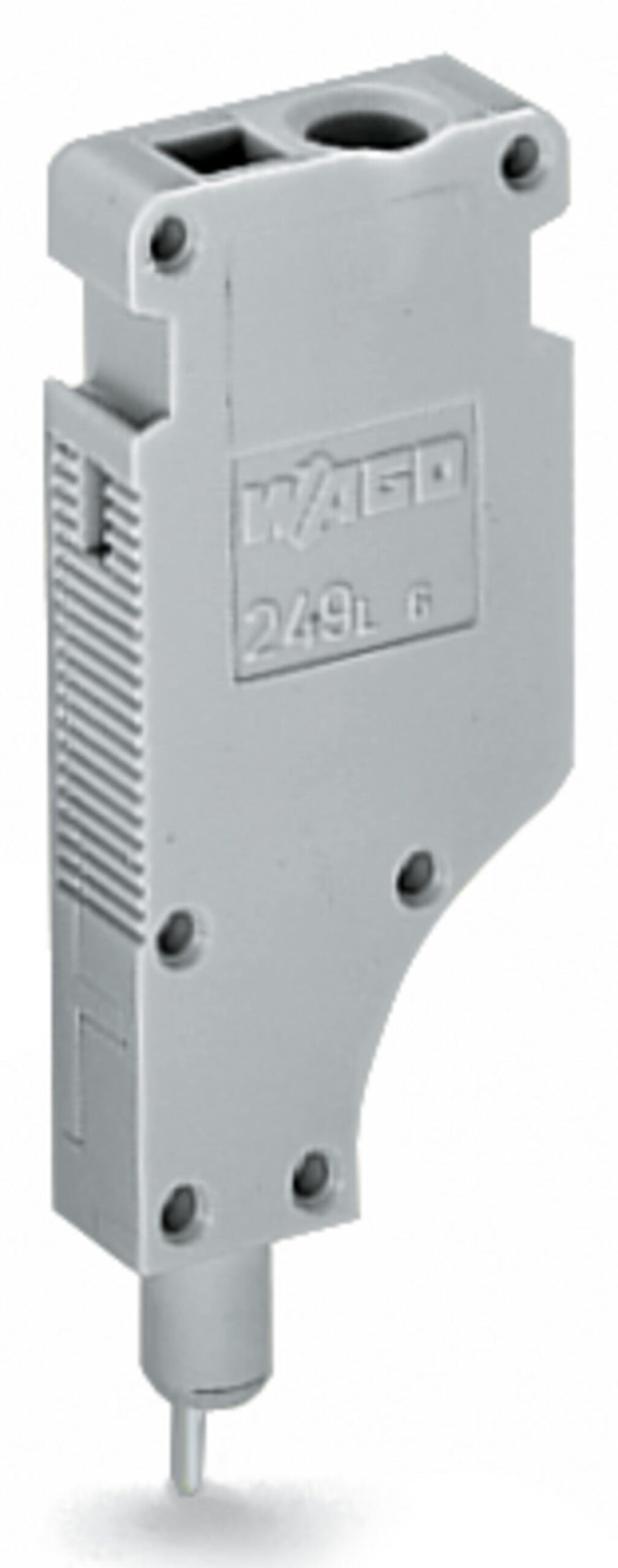

L-type test plug module; modular; with spring-loaded contact pin; Center module; 2,50 mm²; gray 249-144
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
L-type test plug module; modular; with spring-loaded contact pin; Center module; 2,50 mm²; gray 249-144
Specification
Notes
| Safety Information | These test plugs are not suitable for Ex e applications. |
|---|
Electrical data - Ratings per IEC/EN
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
|---|
Electrical data - General information
| Test voltage | 630 V |
|---|---|
| Test current | 6 A |
| Wiring direction | Front-entry wiring |
Connection data
| Clamping units | 1 |
|---|---|
| Total number of potentials | 1 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
| Pole number | 1 |
| Wiring direction | Front-entry wiring |
Physical data
| Width | 6 mm / 0.236 inches |
|---|---|
| Height | 18 mm / 0.709 inches |
| Depth | 46.5 mm / 1.831 inches |
| Module width | 6 mm / 0.236 inches |
Mechanical data
| Marking level | Side marking |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.081 MJ |
| Weight | 4.9 g |
Commercial data
| Product Group | 2 (Terminal Block Accessories) |
|---|---|
| PU (SPU) | 100 (25) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454193720 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121402 |
|---|---|
| eCl@ss 10.0 | 27-14-11-48 |
| eCl@ss 9.0 | 27-14-11-48 |
| ETIM 9.0 | EC002555 |
| ETIM 10.0 | EC002555 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
