Wago 249-127

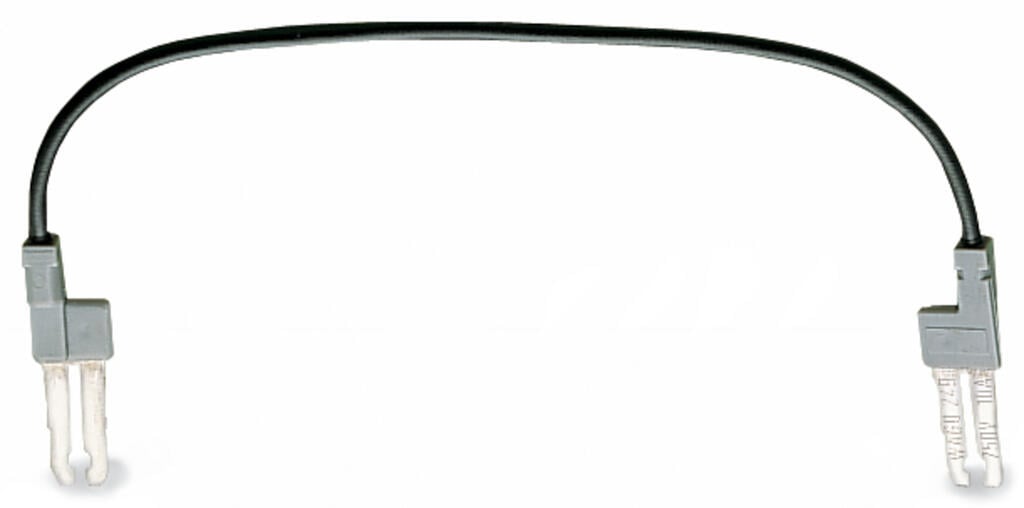

Push-in type wire jumper; 0.75 mm²; insulated; 250 mm long; black 249-127
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Push-in type wire jumper; 0.75 mm²; insulated; 250 mm long; black 249-127
Specification
Notes
| Safety Information | Push down the wire jumper until fully inserted! |
|---|
Electrical data - Ratings per IEC/EN
| Nominal voltage (III/3) | 800 V |
|---|---|
| Rated impulse withstand voltage (III / 3) | 8 kV |
| Rated current | 9 A |
Mechanical data
| Cable length of push-in type wire jumpers | 250 mm |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | black |
| Fire load | 0.039 MJ |
| Weight | 3.9 g |
Commercial data
| PU (SPU) | 100 (10) pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4044918787017 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| eCl@ss 10.0 | 27-14-11-40 |
| eCl@ss 9.0 | 27-14-11-40 |
| ETIM 9.0 | EC000489 |
| ETIM 10.0 | EC000489 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
