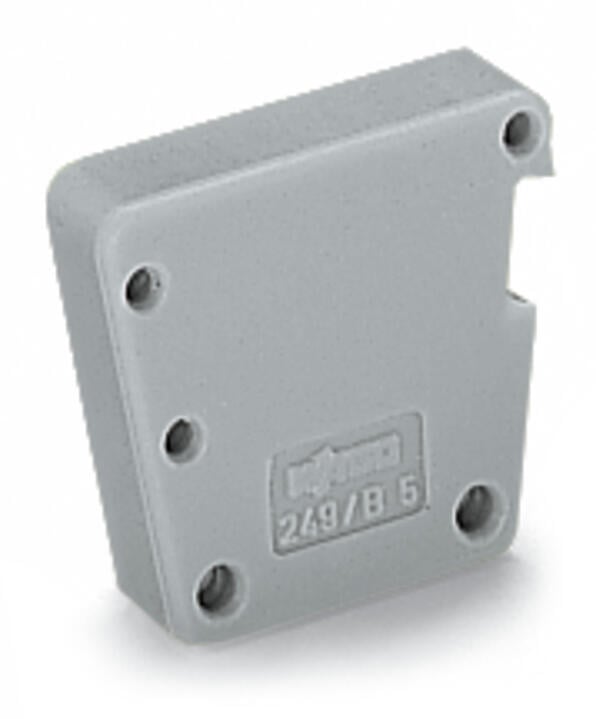

Wago 249-107
B-type spacer module; modular; e.g., for bridging commoned terminal blocks; gray 249-107
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
B-type spacer module; modular; e.g., for bridging commoned terminal blocks; gray 249-107
Specification
Notes
| Safety Information | These spacer modules are not suitable for Ex e applications. |
|---|
Physical data
| Width | 5 mm / 0.197 inches |
|---|---|
| Height | 19 mm / 0.748 inches |
| Depth | 16 mm / 0.63 inches |
| Module width | 5 mm / 0.197 inches |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V2 |
| Fire load | 0.021 MJ |
| Weight | 0.7 g |
Commercial data
| Product Group | 2 (Terminal Block Accessories) |
|---|---|
| PU (SPU) | 100 (25) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4017332295963 |
| Customs tariff number | 39269097900 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-92 |
| eCl@ss 9.0 | 27-14-11-92 |
| ETIM 9.0 | EC002848 |
| ETIM 10.0 | EC002848 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
