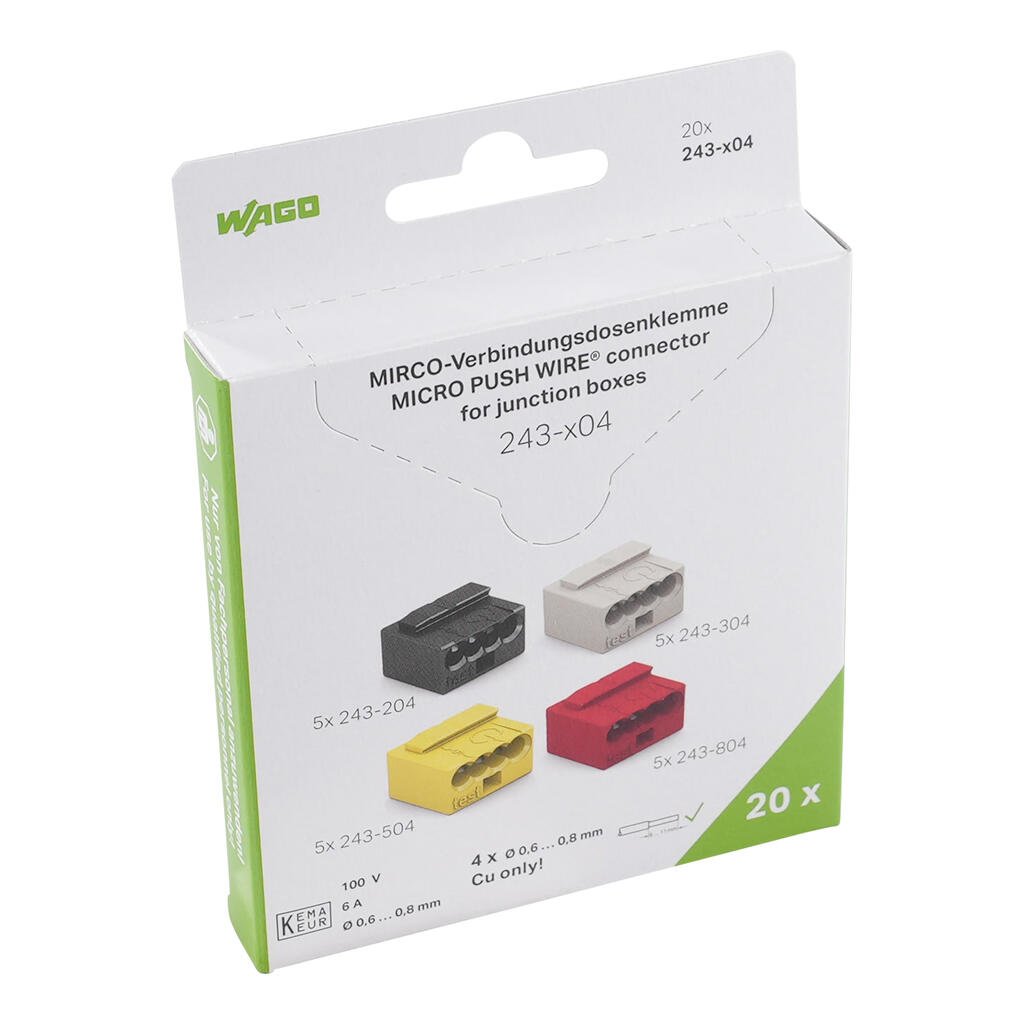

Wago 243-9294/995-020
Push wire® connector for junction boxes, 243 Series, PUSH WIRE®Our push wire® connector for junction boxes (item number 243-9294/995-020) simplifies electrical installations. Our 243 Series MICRO PUSH…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Push wire® connector for junction boxes, 243 Series, PUSH WIRE®Our push wire® connector for junction boxes (item number 243-9294/995-020) simplifies electrical installations. Our 243 Series MICRO PUSH WIRE® connectors for junction boxes are ideal for low-voltage installations in buildings. Whether you’re wiring doorbell or intercom systems, our MICRO junction box connectors impress with their compact and space-saving design. Ensure that the strip lengths are between 5 and 6 mm when connecting conductors to push wire® connector for junction boxes. This splicing connector has a rated voltage of 100 V and can handle currents up to 6 A. Featuring one conductor terminal along with PUSH WIRE®, this product delivers reliable performance. Our PUSH WIRE® connection is the simple and reliable method for connecting solid conductors. Dimensions: (10 x 6.8 x 10) mm (width x height x depth).
Specification
Notes
| General safety information | NOTICE: Observe installation and safety instructions!Only to be used by electricians!Do not work under voltage/load!Use only for proper use!Observe national regulations/standards/guidelines!Observe technical specifications for the products!Observe the number of permissible potentials!Do not use damaged/dirty components!Observe conductor types, cross-sections and strip lengths!Insert conductor until it hits the product‘s backstop!Use original accessories!To be sold only with installation instructions! |
|---|
Electrical data - Ratings per IEC/EN
| Ratings per | EN 60664 |
|---|---|
| Nominal voltage (II/2) | 100 V |
| Rated impulse withstand voltage (II/2) | 1.5 kV |
| Rated current | 6 A |
| Legend (ratings) | (II / 2) ≙ Overvoltage category II / Pollution degree 2 |
| Ratings per | EN 60664 / EN 60664 / EN 60664 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 100 V |
| Rated impulse withstand voltage | 1.5 kV |
| Rated current | 6 A |
Electrical data - General information
| Wiring direction | Side-entry wiring |
|---|
Connection data
| Clamping units | 4 |
|---|---|
| Total number of potentials | 1 |
| Number of connection types | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | PUSH WIRE® |
|---|---|
| Actuation type | Push-in |
| Connectable conductor materials | Copper |
| Solid conductor | 22 … 20 AWG |
| Conductor diameter | 0.6 … 0.8 mm / 22 … 20 AWG |
| Conductor diameter (note) | When using conductors of the same diameter, 0.5 mm (24 AWG) or 1 mm (18 AWG) diameters are also possible. |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
| Wiring direction | Side-entry wiring |
Physical data
| Width | 10 mm / 0.394 inches |
|---|---|
| Height | 6.8 mm / 0.268 inches |
| Depth | 10 mm / 0.394 inches |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | dark gray |
| Fire load | 0.012 MJ |
| Weight | 0.8 g |
Environmental requirements
| Ambient temperature (operation) | +60 °C |
|---|
Commercial data
| PU (SPU) | 360 (20) pcs |
|---|---|
| Packaging type | Blister foil |
| Country of origin | DE |
| GTIN | 4066966002003 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121409 |
|---|---|
| ETIM 9.0 | EC000446 |
| ETIM 10.0 | EC000446 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
