Wago 243-212
Push wire® splicing connector, 243 Series, PUSH WIRE®Enjoy seamless electrical installations with push wire® splicing connector (item number 243-212). Ensure that the strip lengths are between 5 and 6…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

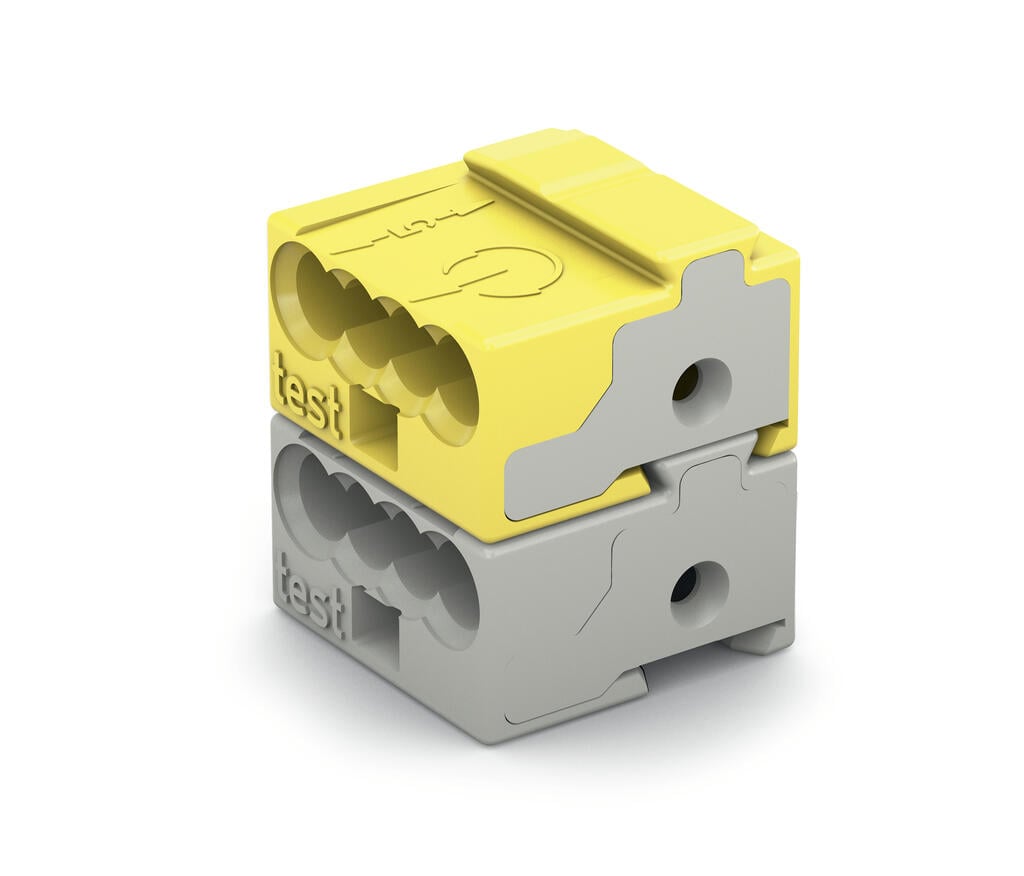

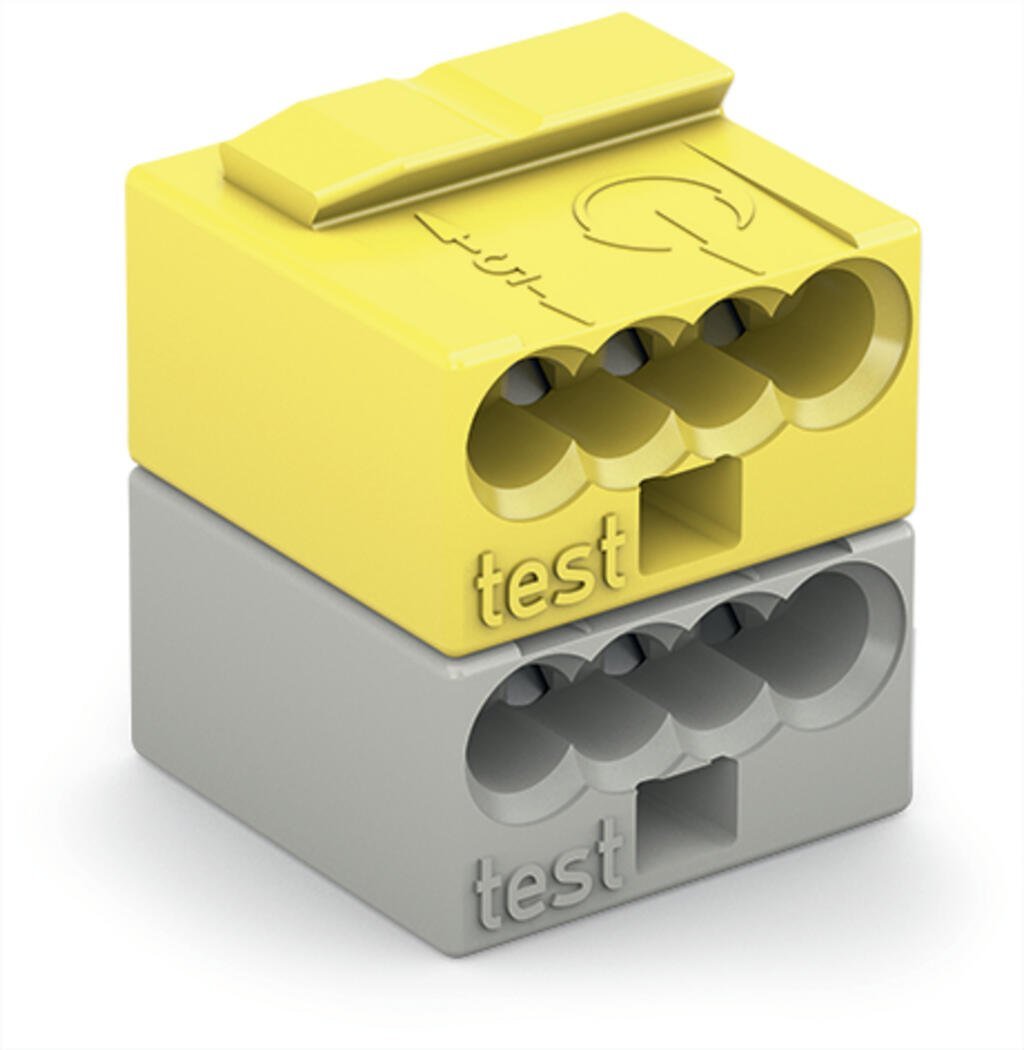

Push wire® splicing connector, 243 Series, PUSH WIRE®Enjoy seamless electrical installations with push wire® splicing connector (item number 243-212). Ensure that the strip lengths are between 5 and 6 mm when connecting conductors to push wire® splicing connector. This product features one conductor terminal and utilizes PUSH WIRE®. Our PUSH WIRE® connection offers a quick and simple solution for connecting solid conductors. The item’s dimensions are (10 x 11.5 x 10) mm (width x height x depth).The contact surface is coated with tin.
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 250 V |
| Rated impulse withstand voltage (III / 3) | 4 kV |
| Rated voltage (III/2) | 320 V |
| Rated impulse withstand voltage (III/2) | 4 kV |
| Nominal voltage (II/2) | 630 V |
| Rated impulse withstand voltage (II/2) | 4 kV |
| Rated current | 6 A |
| Legend (ratings) | (III / 2) ≙ Overvoltage category III / Pollution degree 2 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 250 V / 320 V / 630 V |
| Rated impulse withstand voltage | 4 kV / 4 kV / 4 kV |
| Rated current | 6 A / 6 A / 6 A |
Connection data
| Clamping units | 8 |
|---|---|
| Total number of potentials | 2 |
| Number of connection types | 1 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | PUSH WIRE® |
|---|---|
| Solid conductor | 22 … 20 AWG |
| Conductor diameter | 0.6 … 0.8 mm / 22 … 20 AWG |
| Conductor diameter (note) | When using different conductor diameters |
| Strip length | 5 … 6 mm / 0.2 … 0.24 inches |
| Pole number | 2 |
Connection data - Connection 2
| Solid conductor | 18 AWG |
|---|---|
| Conductor diameter | 1 mm / 18 AWG |
| Conductor diameter (note) | When using identical conductor diameters |

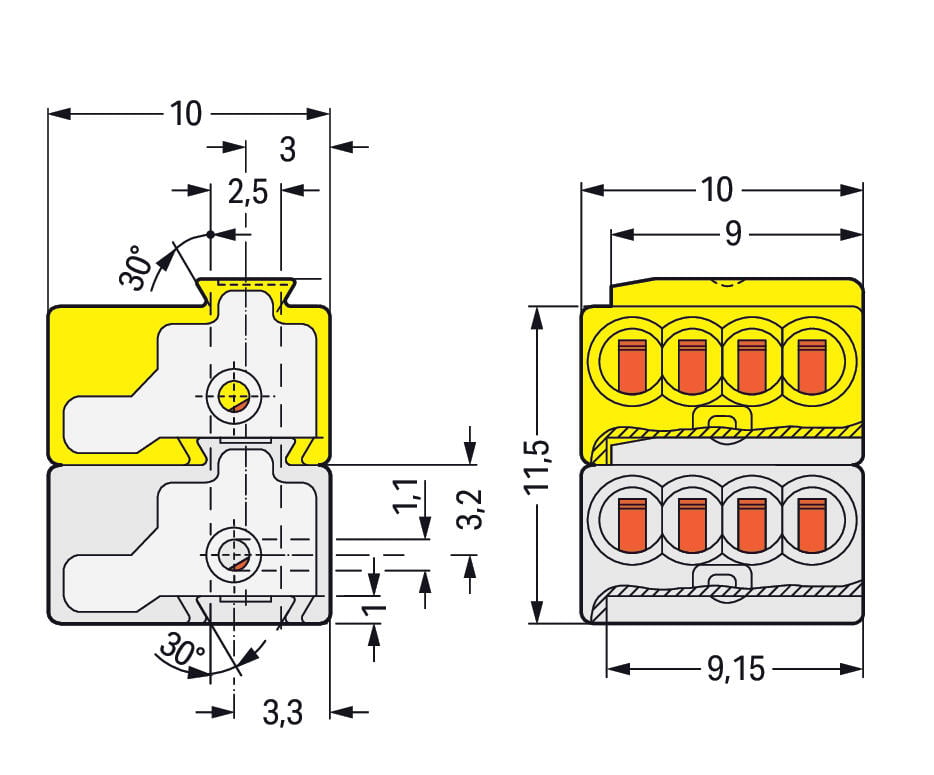

Physical data
| Width | 10 mm / 0.394 inches |
|---|---|
| Height | 11.5 mm / 0.453 inches |
| Depth | 10 mm / 0.394 inches |
Plug-in connection
| Contact type (pluggable connector) | Female connector/socket |
|---|---|
| Connector (connection type) | for conductor |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | light gray/yellow |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Contact material | Electrolytic copper (ECu) |
| Contact plating | Tin |
| Fire load | 0.024 MJ |
| Weight | 1.5 g |
Environmental requirements
| Limit temperature range | -60 … +105 °C |
|---|---|
| Continuous operating temperature | -60 °C |
Commercial data
| PU (SPU) | 500 (50) pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4044918441407 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121409 |
|---|---|
| eCl@ss 10.0 | 27-14-11-04 |
| eCl@ss 9.0 | 27-14-11-04 |
| ETIM 9.0 | EC000446 |
| ETIM 10.0 | EC000446 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
