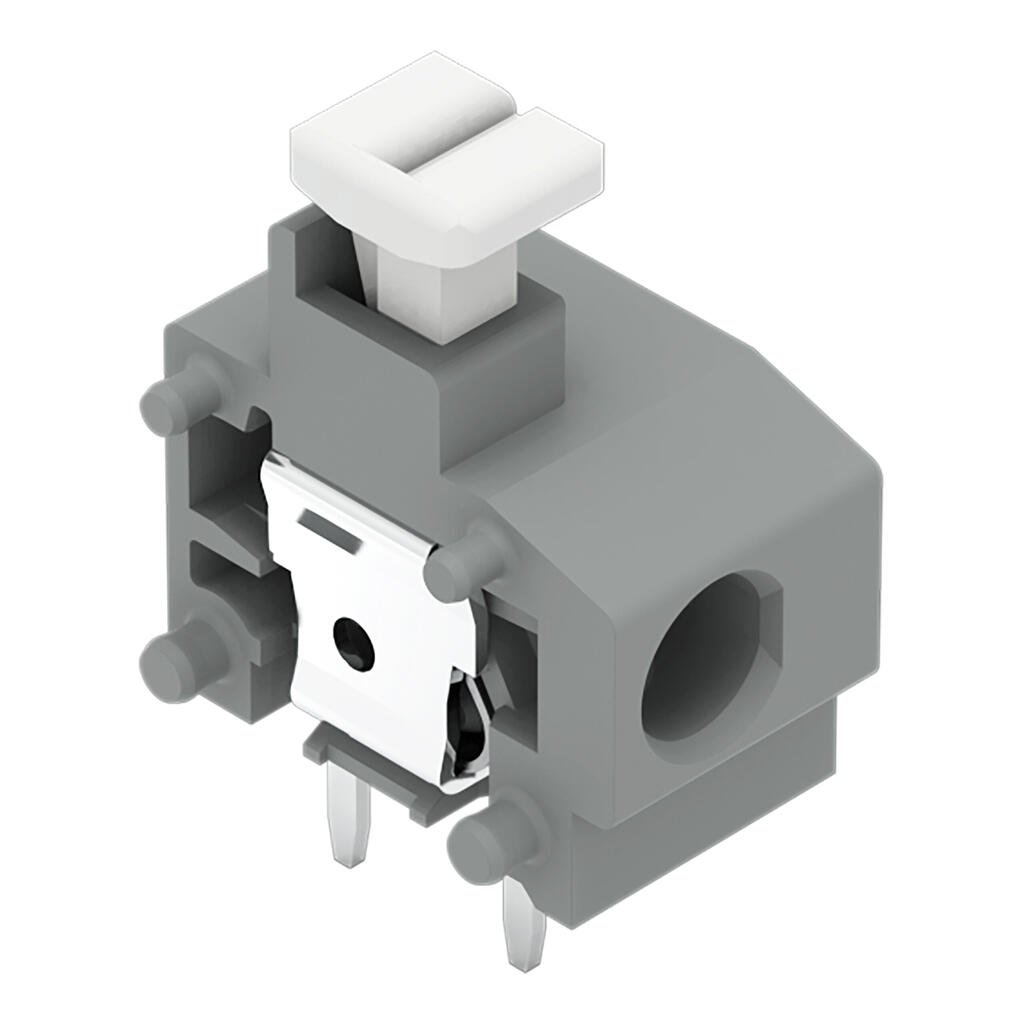

Wago 235-756/331-000

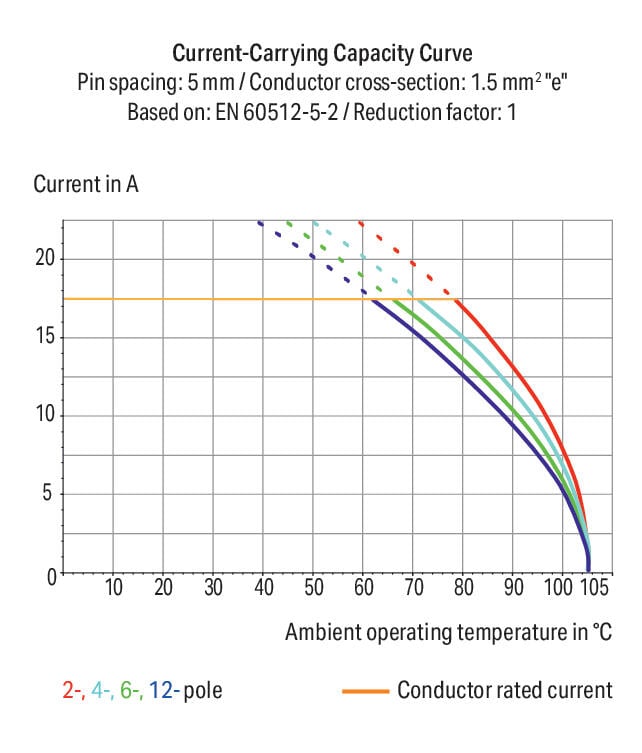

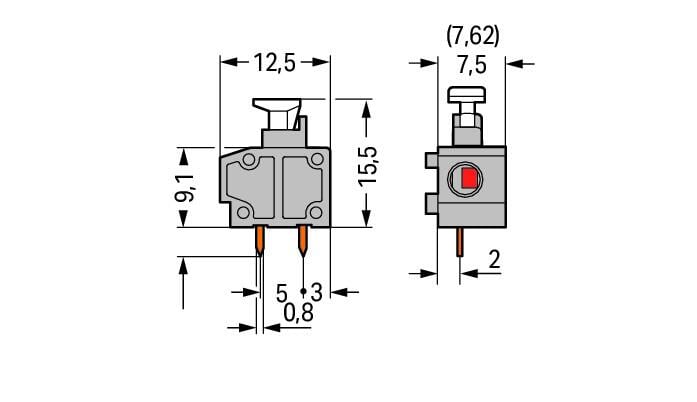

PCB terminal block, 235 Series, push-buttonThis PCB terminal block (item number 235-756/331-000) is designed for easy and secure connections. It is ideal for custom installations with different mounting types. Rated current and voltage are important parameters when choosing a PCB terminal block, as they determine the product’s suitability for different applications. This product has a rated voltage of 630 V and a rated current of 17.5 A, making it suitable for high-load applications. Ensure that the strip lengths are between 9 mm and 10 mm when connecting conductors to this PCB terminal block. Featuring one conductor terminal along with Push-in CAGE CLAMP®, this product delivers reliable performance. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. Solid and fine-stranded conductors with ferrules can be pushed in without the need for tools—all thanks to its pluggable design. The item’s dimensions are 9 x 19.1 x 12.5 mm (width x height x depth). Depending on the conductor type, this PCB terminal block is suitable for conductor cross sections ranging from 0.2 mm² to 1.5 mm². Up to one potential / one pole can be connected to this terminal block using one clamping point on one level. The contacts are made of electrolytic copper (ECu), the clamping spring is made of chrome-nickel spring steel (CrNi), and the orange housing is made of polyamide (PA66) for insulation. The contact surface is coated with tin. This PCB terminal block is operated with a push-button. THT is used to solder the PCB terminal block. The conductor is designed to be inserted at a 0° angle.. The solder pins, which are 0.4 x 0.8 mm in cross-section and 3.6 mm long, are arranged within the terminal block (in-line). There are two solder pins per potential.
