Wago 235-744

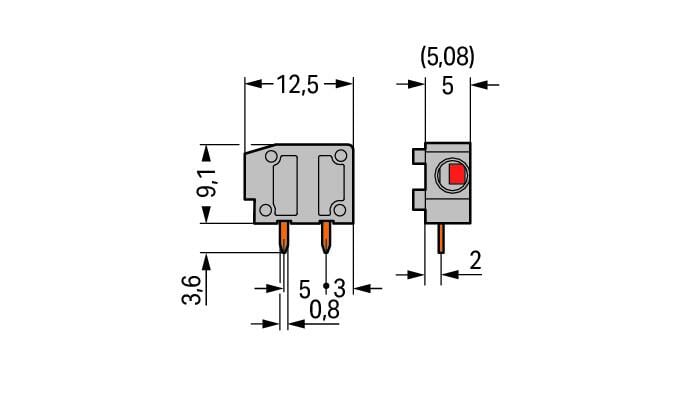

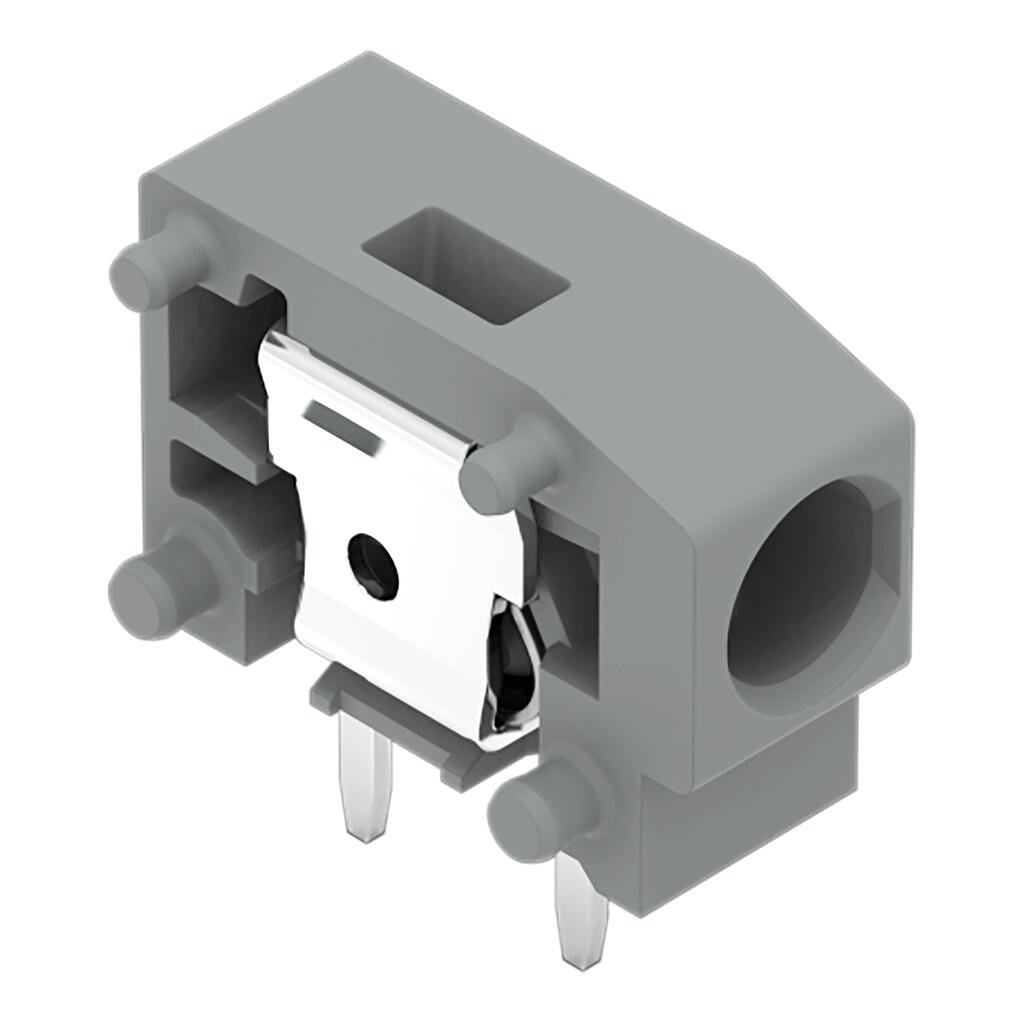

PCB terminal block, 235 Series, PUSH WIRE®Our PCB terminal block (item number 235-744) simplifies electrical installations. It offers the flexibility needed for different mounting types. Rated current and voltage are important parameters when choosing a PCB terminal block, as they indicate possible applications and uses. This product has a rated voltage of 320 V and a rated current of 24 A, making it suitable for high-load applications. Ensure that the strip lengths are between 9 mm and 10 mm when connecting conductors to this PCB terminal block. This product features one conductor terminal and utilizes PUSH WIRE®. Our PUSH WIRE® connection is the quick and easy method for connecting solid conductors. The item’s dimensions are 6.5 x 12.8 x 12.5 mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.5 mm² to 2.5 mm². It has one level. The single potential can connect one pole using one clamping point The clamping spring is made of chrome-nickel spring steel (CrNi), the blue housing is made of polyamide (PA66) for insulation, and the contacts are made of electrolytic copper (ECu). The contact surface is coated with tin. An operating tool is used to operate this PCB terminal block. The PCB terminal block is designed for THT soldering. The conductor is designed to be inserted into the board at a 0° angle.. The solder pins measure 0.8 x 0.4 mm in cross-section and 3.6 mm in length and are organized within the terminal block (in-line). There are two solder pins per potential.
