Wago 235-726/331-000

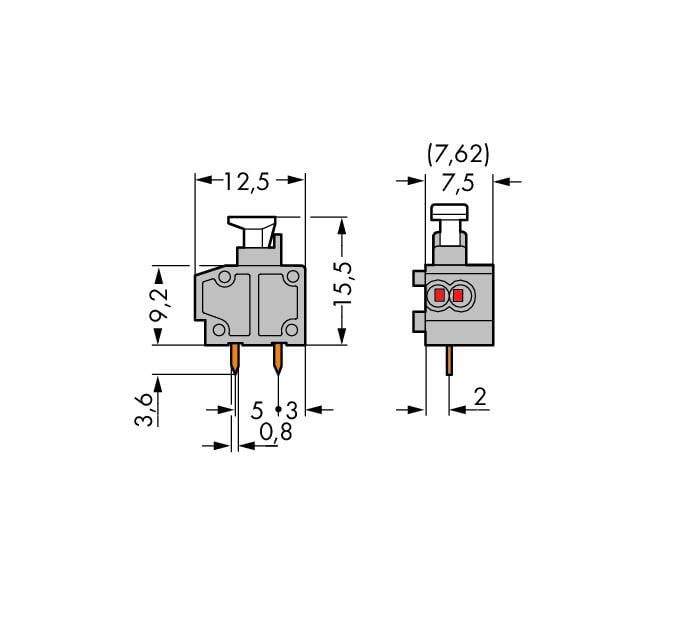

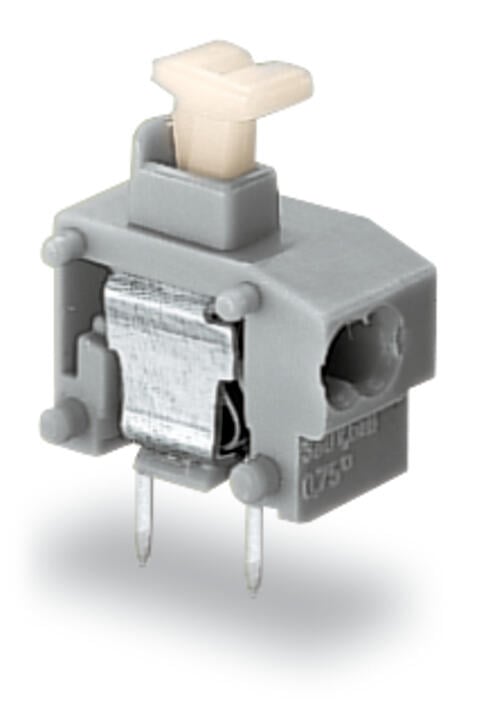

PCB terminal block, 235 Series, with 7.5 mm pin spacingQuick and easy connections are guaranteed with this PCB terminal block (item number 235-726/331-000). It is ideal for custom installations with different mounting types. Rated current and voltage are important parameters when choosing a PCB terminal block, as they indicate possible applications and uses. This product has a rated voltage of 630 V and a rated current of 10 A. Ensure that the strip lengths are between 9 mm and 10 mm when connecting conductors to this PCB terminal block. Featuring one conductor terminal along with PUSH WIRE®, this product outperforms the competition. Our PUSH WIRE® connection uses the stiffness of the conductor to overcome the clamping spring’s contact force, allowing faster and easier conductor clamping. Dimensions: 9 x 19.1 x 12.5 mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.2 mm² to 0.75 mm². It has one level. You can connect a single potential / one pole using the two clamping points. The contacts are made of electrolytic copper (ECu), the orange housing is made of polyamide (PA66) for insulation, and the clamping spring is made of chrome-nickel spring steel (CrNi). The contact surface is coated with tin. A push-button is used to operate this PCB terminal block. THT is used to solder the PCB terminal block. The conductor is designed to be inserted at an angle of 0°.. The solder pins, which are 0.8 x 0.4 mm in cross-section and 3.6 mm long, are laid out within the terminal block (in-line). There are two solder pins per potential.
