Wago 235-722/331-000

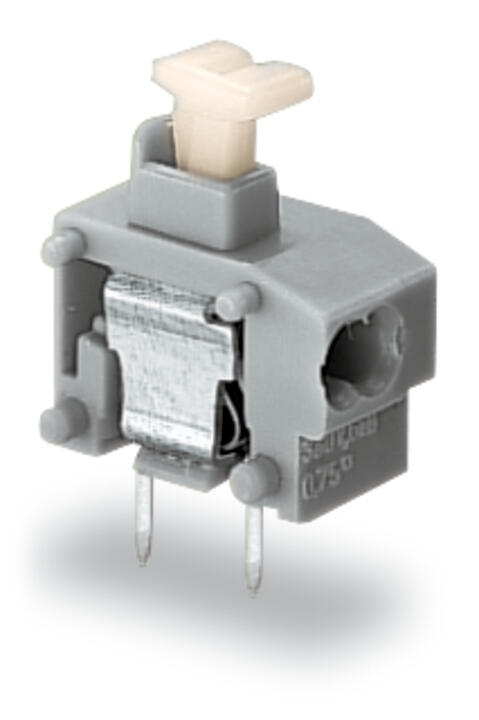

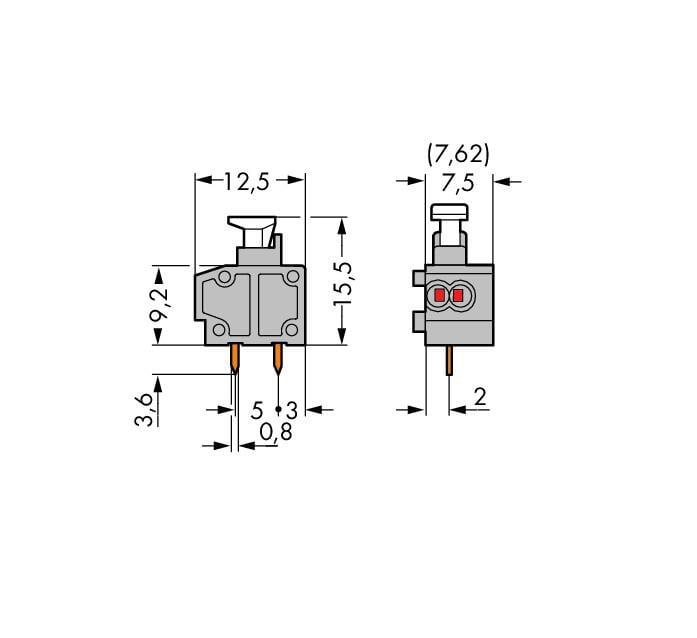

PCB terminal block, 235 Series, solder pin dimensions 0.4 x 0.4 mmOur PCB terminal block (item number 235-722/331-000) makes connections quick and easy. You can rely on trusted safety with these PCB terminal blocks, perfect for a wide range of applications when designing your devices. Rated current and voltage are important parameters when choosing a PCB terminal block, as they indicate possible applications and uses. This product has a rated voltage of 630 V and a rated current of 10 A. Strip lengths must be between 9 mm and 10 mm when connecting conductors to this PCB terminal block. This product incorporates one conductor terminal and utilizes PUSH WIRE®. Our PUSH WIRE® connection is the quick and simple method for connecting solid conductors. The item’s dimensions are 9 x 19.1 x 12.5 mm (width x height x depth). Depending on the conductor type, this PCB terminal block is designed for conductor cross sections ranging from 0.2 mm² to 0.75 mm². It has one level. You can connect a single potential / one pole using the two clamping points. The contacts are made of electrolytic copper (ECu), the clamping spring is made of chrome-nickel spring steel (CrNi), and the dark gray housing is made of polyamide (PA66) for insulation. The contact surface is coated with tin. This PCB terminal block is operated with a push-button. The PCB terminal block is designed for THT soldering. Insert the conductor at a 0° angle.. The solder pins, which are 0.4 x 0.4 mm in cross-section and 3.6 mm long, are arranged within the terminal block (in-line). There are two solder pins per potential.
