Wago 235-712

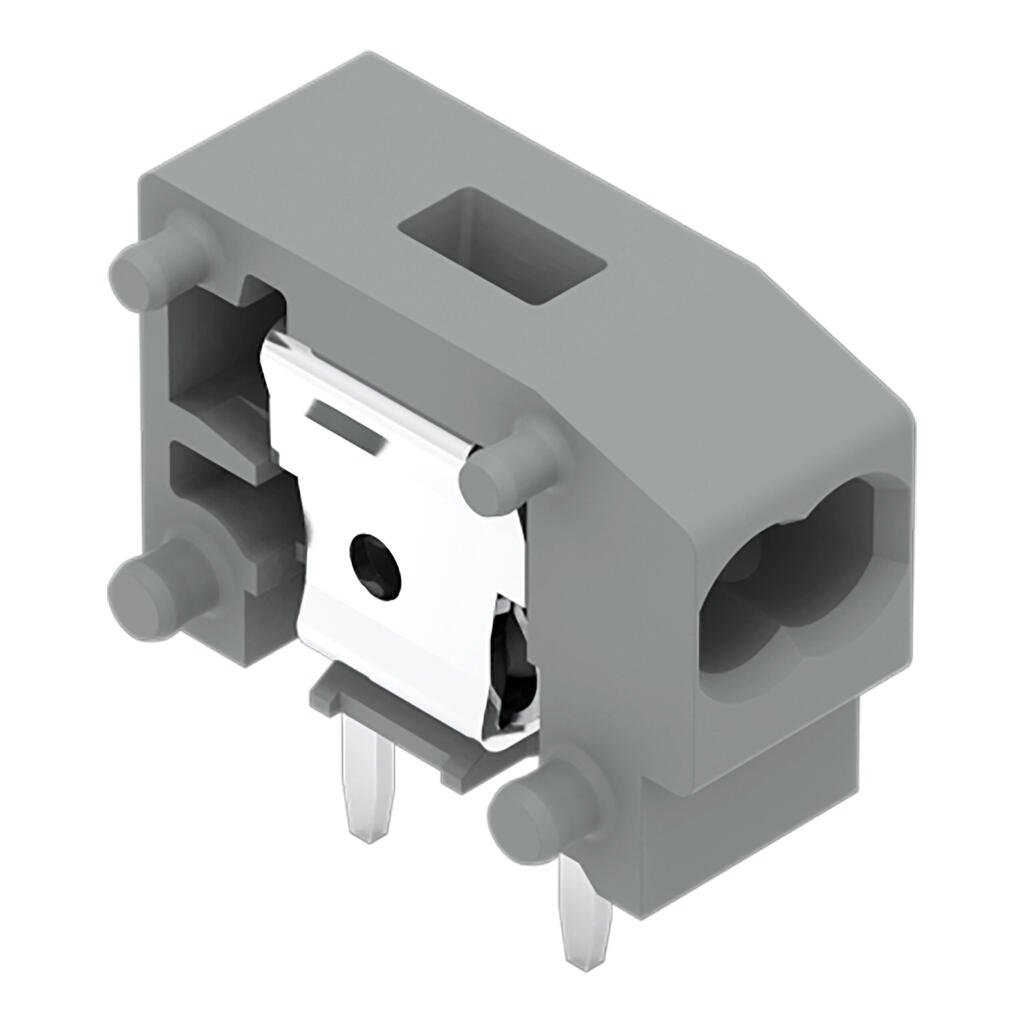

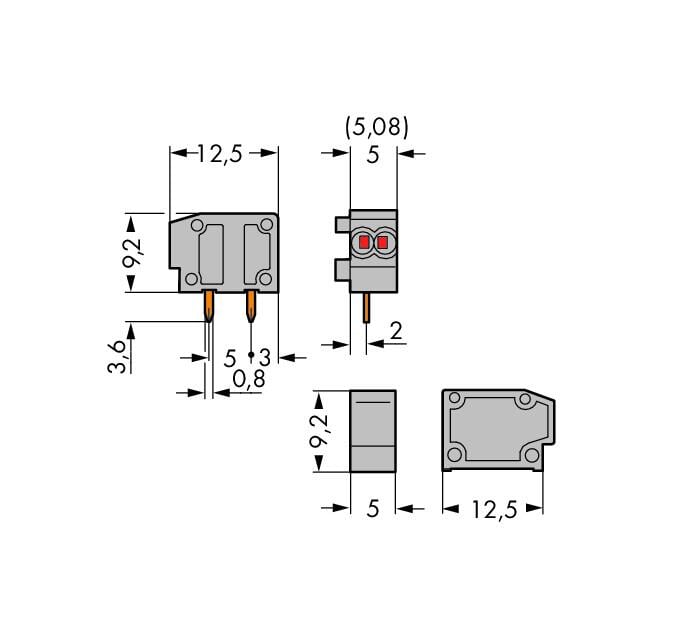

PCB terminal block, 235 Series, 0 °conductor entry to boardConnecting conductors is quick and easy with this PCB terminal block (item number 235-712). You can count on proven safety with these PCB terminal blocks, perfect for a wide variety of applications when designing your devices. Our PCB terminal block is rated for 320 V and is designed to handle a rated current of up to 10 A. Conductors can only be connected to this PCB terminal block if their strip length is between 9 mm and 10 mm. This product features one conductor terminal and utilizes PUSH WIRE®. Our PUSH WIRE® connection uses the stiffness of the conductor to overcome the clamping spring’s contact force, allowing faster and easier conductor clamping. The item’s dimensions are 6.5 x 12.8 x 12.5 mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.25 mm² to 0.75 mm². Up to one potential / one pole can be connected to this terminal block using two clamping points on one level. The clamping spring is made of chrome-nickel spring steel (CrNi), the dark gray housing is made of polyamide (PA66) for insulation, and the contacts are made of electrolytic copper (ECu). Tin is used for coating the contact surfaces. This PCB terminal block is operated with an operating tool. The PCB terminal block is designed for THT soldering. Insert the conductor at a 0° angle.. The solder pins are organized within the terminal block (in-line) and are 0.8 x 0.4 mm cross-section and 3.6 mm in length. Each potential has two solder pins.
