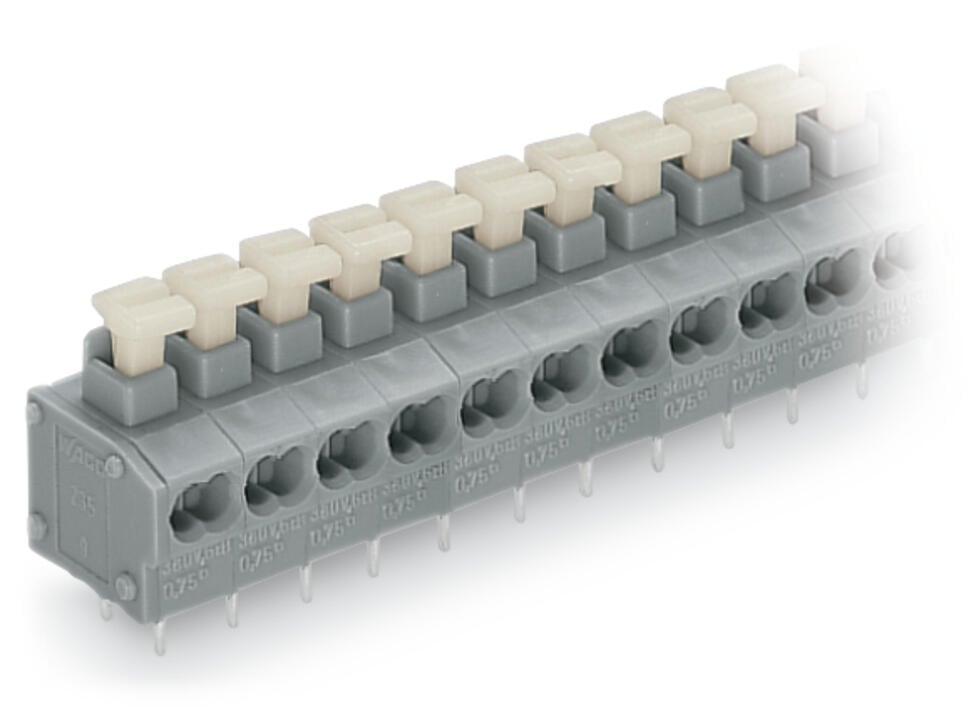

Wago 235-460/331-000

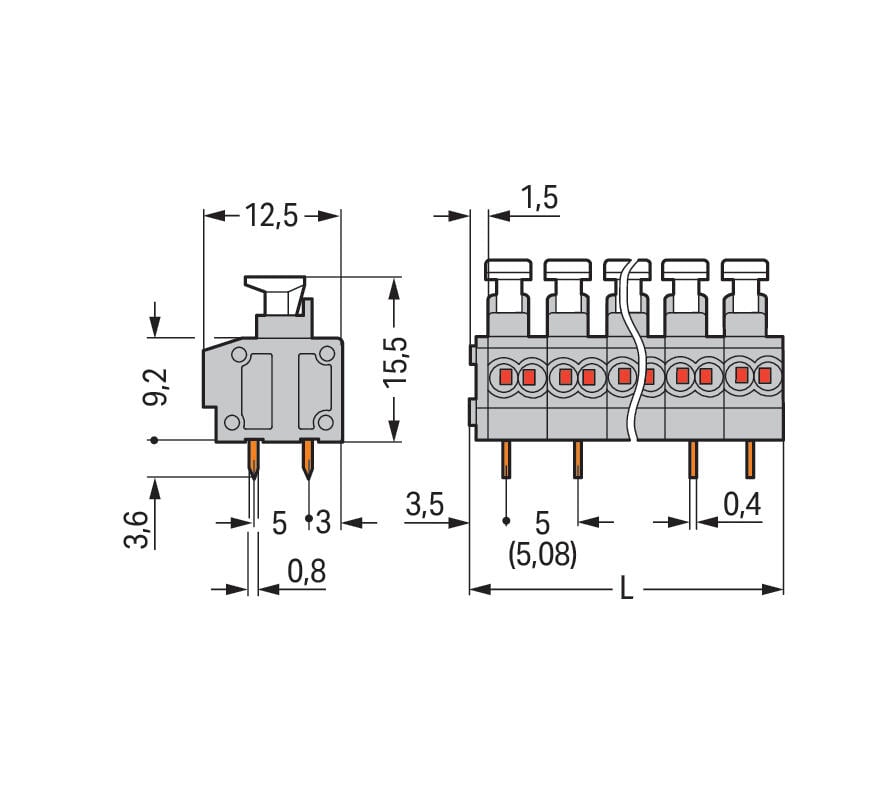

PCB terminal block, 235 Series, with 5 mm pin spacingConnecting conductors is quick and easy with this PCB terminal block (item number 235-460/331-000). It offers the flexibility needed for different mounting types. Rated current and voltage are key factors to consider when selecting a PCB terminal block, as they determine the product’s suitability for different applications. This product has a rated voltage of 320 V and a rated current of 10 A. Ensure that the strip lengths are between 9 mm and 10 mm when connecting conductors to this PCB terminal block. Featuring one conductor terminal along with PUSH WIRE®, this product delivers reliable performance. Our PUSH WIRE® connection is the simple and reliable method for connecting solid conductors. Dimensions: 51.5 x 19.1 x 12.5 mm (width x height x depth). Depending on the type of conductor, this PCB terminal block is designed for conductor cross sections ranging from 0.2 mm² to 0.75 mm². It comes with one level and ten clamping points for connecting ten potentials / 10 poles. The clamping spring is made of chrome-nickel spring steel (CrNi), the contacts are made of electrolytic copper (ECu), and the gray housing is made of polyamide (PA66) for insulation. The contact surface is coated with tin. A push-button is used to operate this PCB terminal block. The PCB terminal block is designed for THT soldering. The conductor is designed to be inserted into the board at a 0° angle.. The solder pins, which are 0.8 x 0.4 mm in cross-section and 3.6 mm long, are arranged over the entire terminal strip (in-line). There are two solder pins per potential.
