Wago 235-116

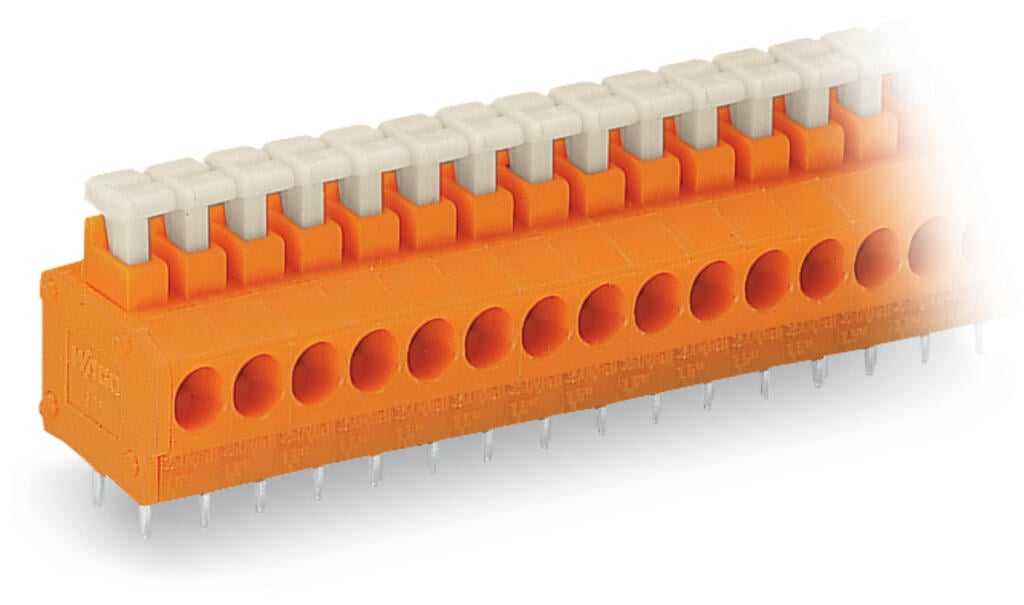

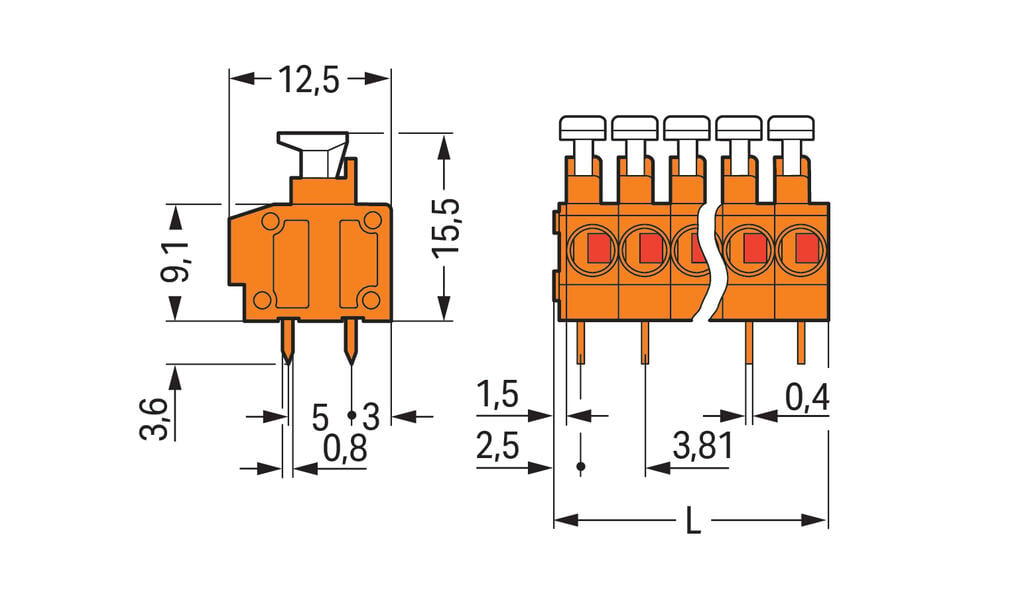

PCB terminal block, 235 Series, Push-in CAGE CLAMP®Easily, quickly and safely connect conductors with this PCB terminal block (item number 235-116). You can count on trusted safety with these PCB terminal blocks, perfect for a wide variety of applications when designing your devices. Our PCB terminal block is rated for 320 V and is designed to handle a rated current of up to 17.5 A. It can therefore be used in high-load applications. Strip lengths must be between 9 mm and 10 mm when connecting conductors to this PCB terminal block. Featuring one conductor terminal along with Push-in CAGE CLAMP®, this connector is highly versatile. Push-in CAGE CLAMP® technology provides a universal connection solution for all conductor types. It allows both solid and fine-stranded conductors with ferrules to be inserted directly into the clamping point without the need for tools. Dimensions: 62.46 x 19.1 x 12.5 mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.5 mm² to 1.5 mm². It has one level. Sixteen potentials can connect sixteen poles using the sixteen clamping points The clamping spring is made of chrome-nickel spring steel (CrNi), the contacts are made of electrolytic copper (ECu), and the orange housing is made of polyamide (PA66) for insulation. Tin is used for coating the contact surfaces. A push-button is used to operate this PCB terminal block. THT is used to assemble the PCB terminal block. The conductor is designed to be inserted at a 0° angle.. The solder pins are organized over the entire terminal strip (in-line). They are 0.4 x 0.8 mm cross-section and 3.6 mm in length. Each potential has two solder pins.
