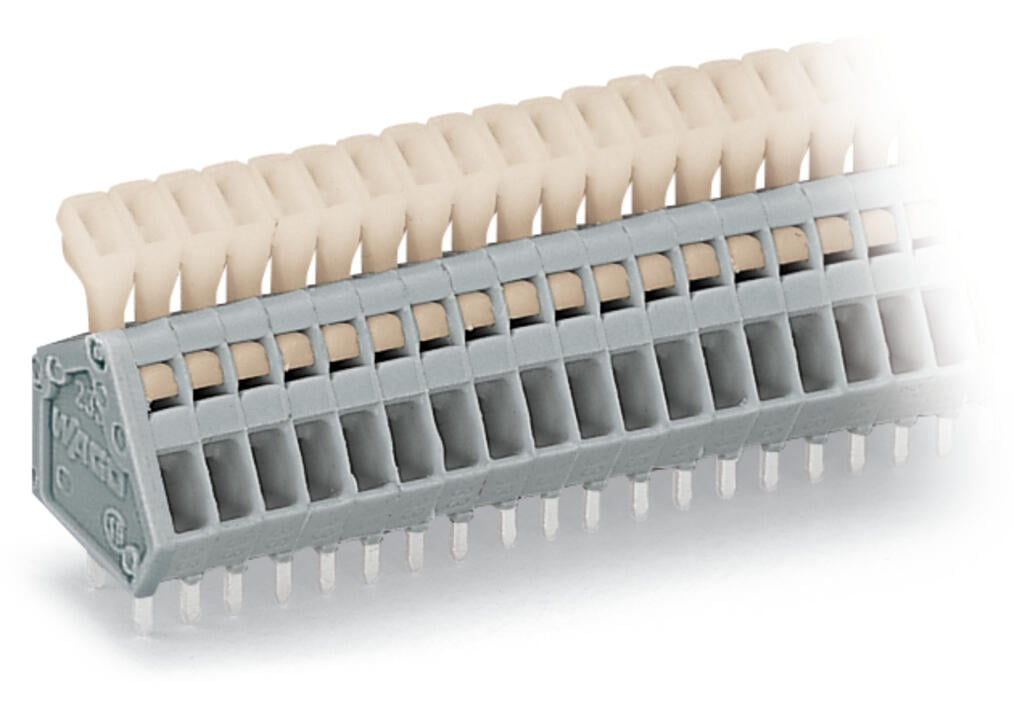

Wago 233-216

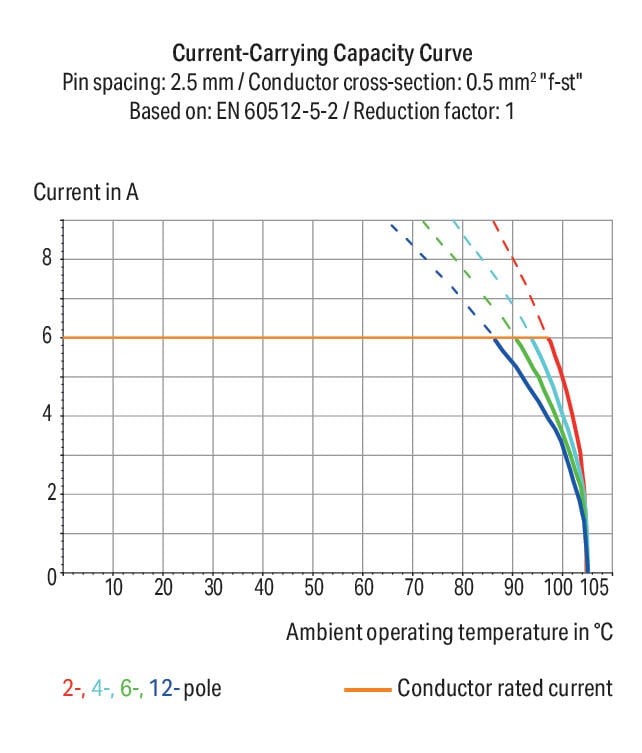

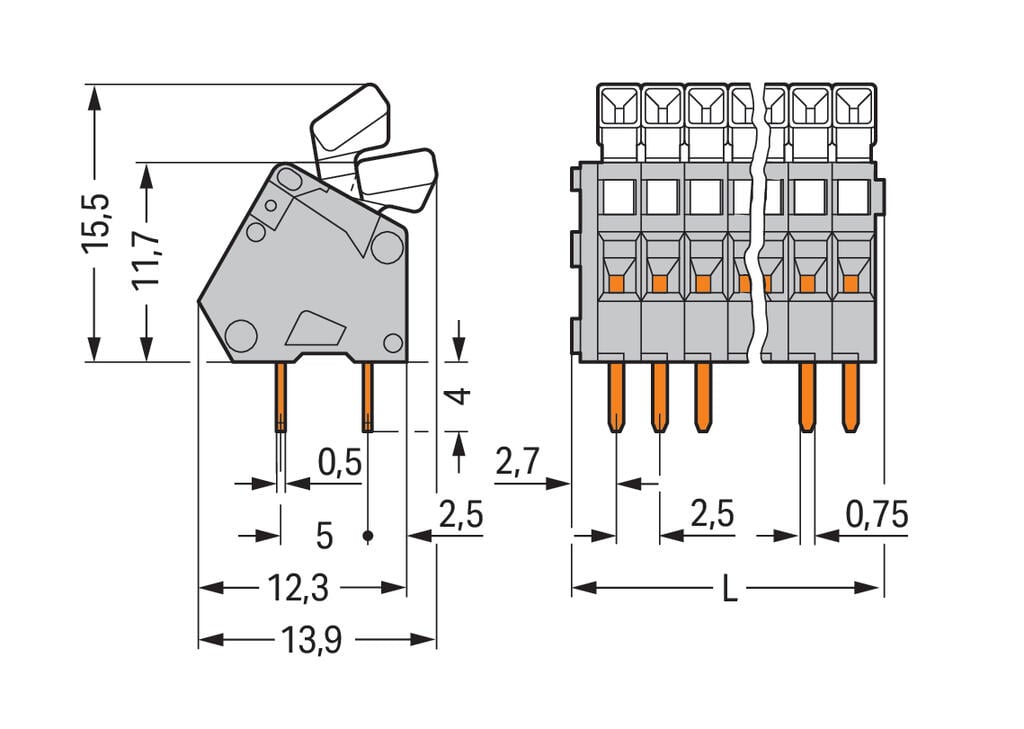

PCB terminal block, 233 Series, with 2.5 mm pin spacingOur PCB terminal block (item number 233-216) makes connecting wires quick and easy. It is ideal for custom installations with different mounting types. Our PCB terminal block is rated for 160 V and is designed to handle a rated current of up to 6 A. Strip lengths must be between 5 mm and 6 mm when connecting conductors to this PCB terminal block. This product features one conductor terminal and utilizes CAGE CLAMP®. Our highly-rated and maintenance-free CAGE CLAMP® connection makes it easy to connect all types of conductors without having to prepare the conductor. For example, you don’t need to crimp ferrules. Dimensions: 42.3 x 19.5 x 13.9 mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 0.5 mm². It has one level. You can connect sixteen potentials / sixteen poles using the sixteen clamping points. The gray housing is made of polyamide (PA66) for insulation, the contacts are made of electrolytic copper (ECu), and the clamping spring is made of chrome-nickel spring steel (CrNi). The contact surface is coated with tin. This PCB terminal block is operated with a push-button. THT is used to solder the PCB terminal block. The conductor is designed to be inserted into the board at an angle of 30°.. The solder pins, which are 0.5 x 0.75 mm in cross-section and 4 mm long, are arranged over the entire terminal strip (in-line). There are two solder pins per potential.
