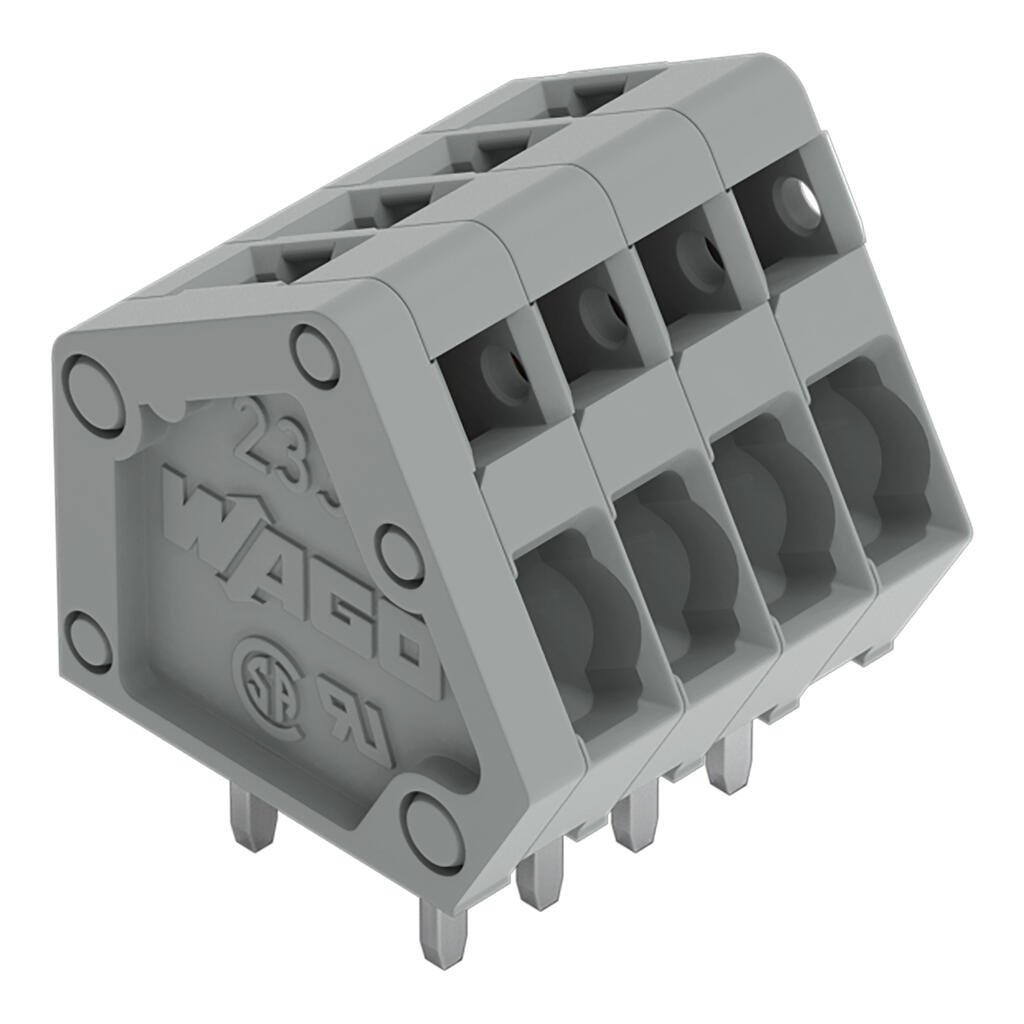

Wago 233-109

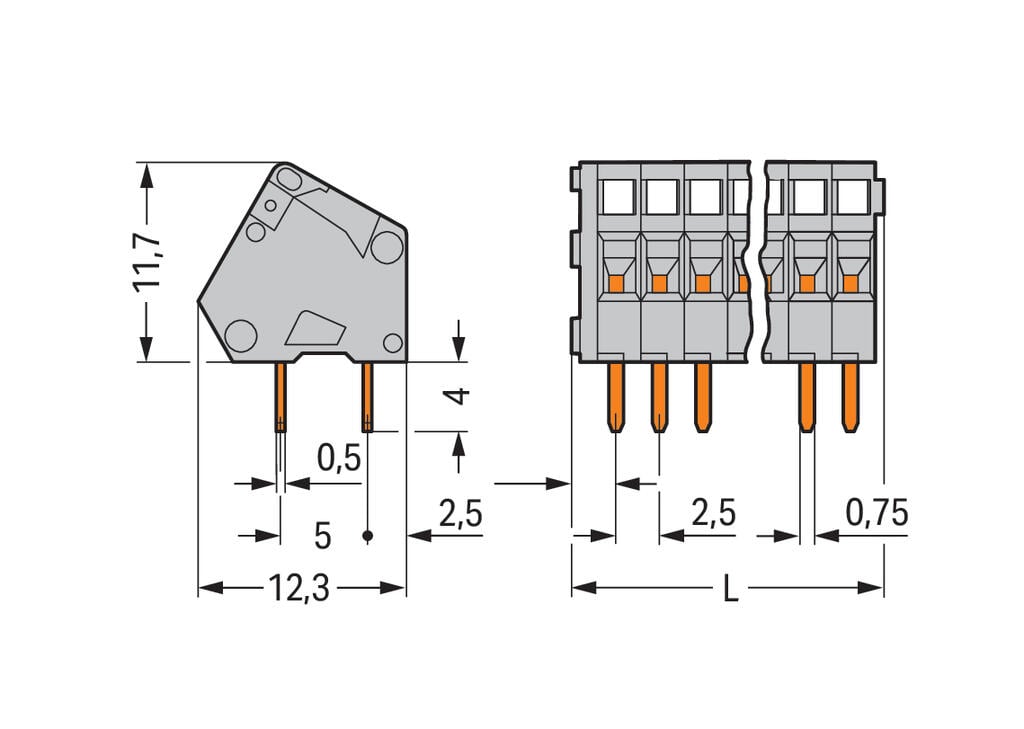

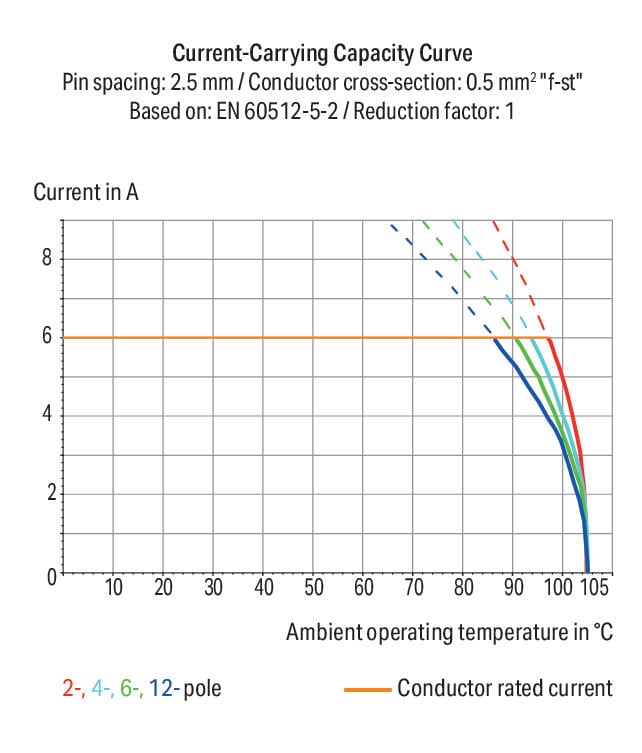

PCB terminal block, 233 Series, operating toolQuick and easy connections are guaranteed with this PCB terminal block (item number 233-109). You can count on trusted safety with these PCB terminal blocks, perfect for a host of applications when designing your devices. Our PCB terminal block is rated for 160 V and is designed for use with a rated current of up to 6 A. Conductors can only be connected to this PCB terminal block if their strip length is between 5 mm and 6 mm. Featuring one conductor terminal along with CAGE CLAMP®, this connector delivers reliable performance. Our CAGE CLAMP® connection provides a safe and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. The dimensions are 24.8 x 15.7 x 12.1 mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.08 mm² to 0.5 mm². It features one level and nine clamping points for connecting nine potentials / 9 poles. The gray housing is made of polyamide (PA66) for insulation, the contacts are made of electrolytic copper (ECu), and the clamping spring is made of chrome-nickel spring steel (CrNi). Tin is used for coating the contact surfaces. An operating tool is used to operate this PCB terminal block. The PCB terminal block is designed for THT soldering. The conductor is designed to be inserted into the board at an angle of 30°.. The solder pins are organized over the entire terminal strip (in-line) and are 0.5 x 0.75 mm cross-section and 4 mm in length. Each potential has two solder pins.
