Wago 232-633

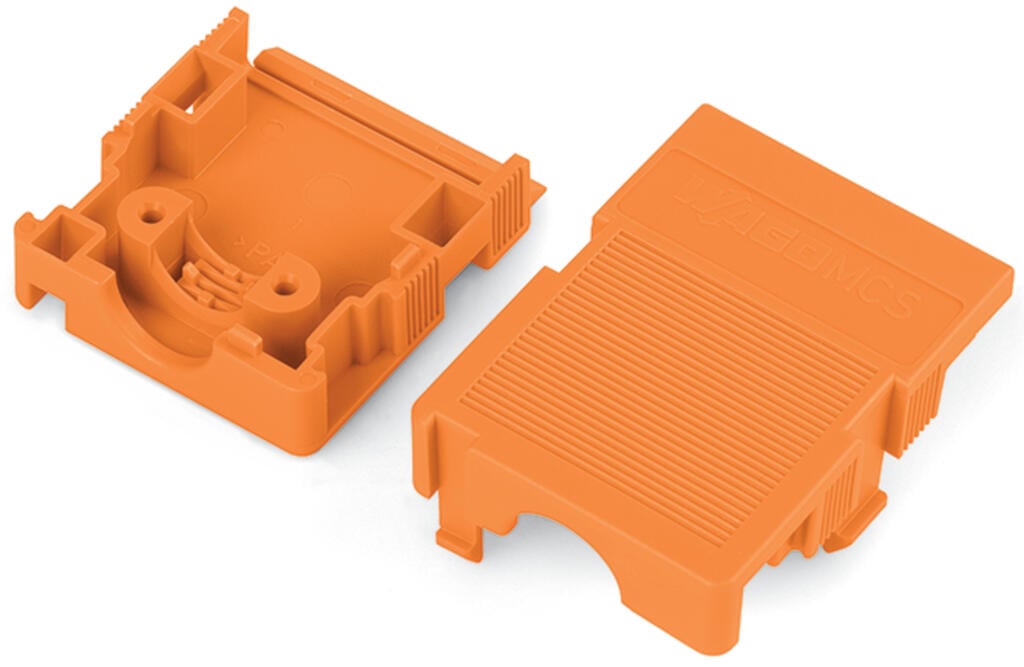

Only for use with cable bindersCable binder width: max. 3.6 mm1 x cable outlet, rear
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Only for use with cable bindersCable binder width: max. 3.6 mm1 x cable outlet, rear
Specification
Connection data - Connection 1
| Pole number | 3 |
|---|
Physical data

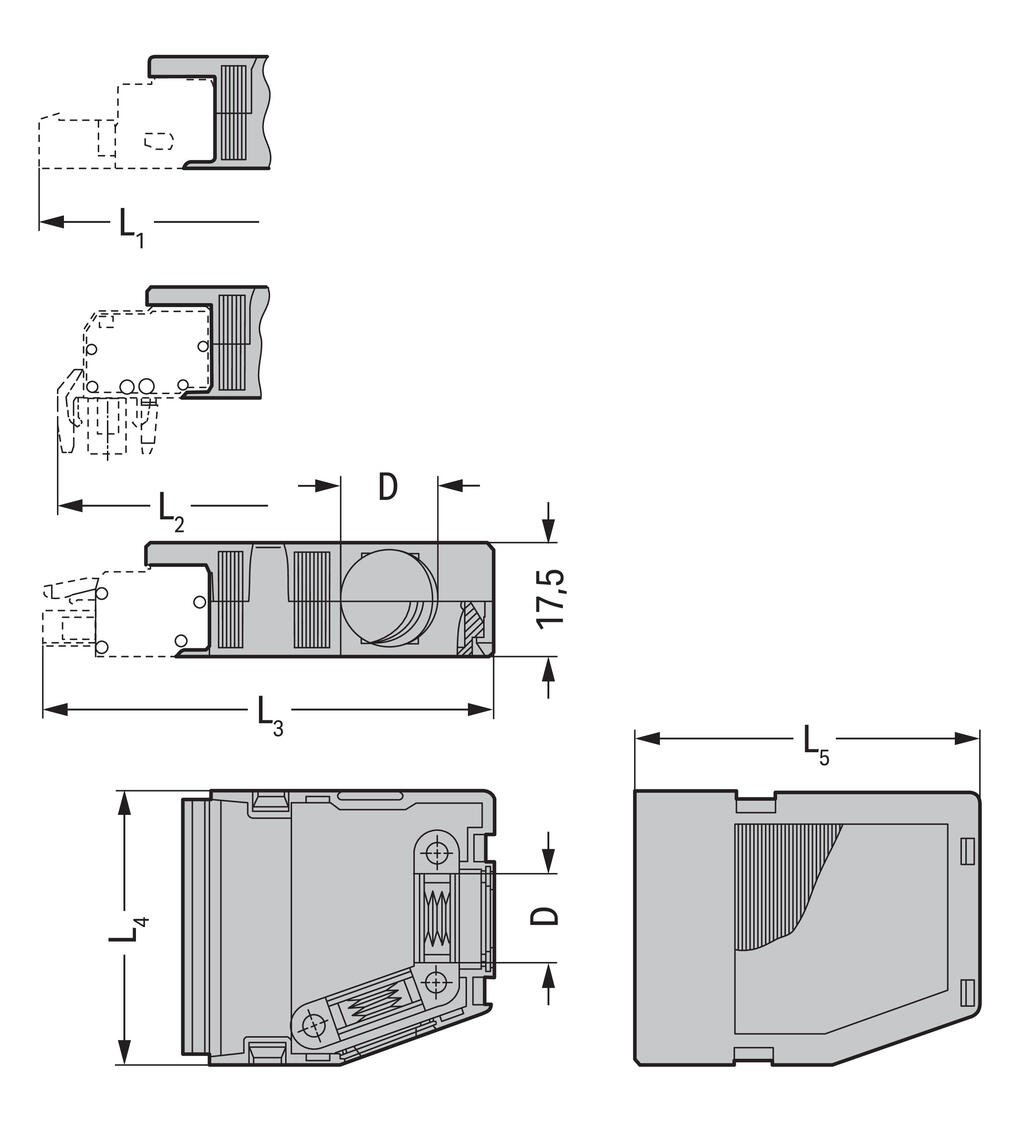

| Pin spacing | 5.08 mm / 0.2 inches |
|---|---|
| Width | 18 mm / 0.709 inches |
| Height | 17.5 mm / 0.689 inches |
| Depth | 41.5 mm / 1.634 inches |
Mechanical data
| Suitable | for standard male and female connectors |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | orange |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.138 MJ |
| Weight | 4.6 g |
Commercial data
| Product Group | 3 (Multi Conn. System) |
|---|---|
| PU (SPU) | 25 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4017332283090 |
| Customs tariff number | 39269097900 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| eCl@ss 10.0 | 27-14-11-92 |
| eCl@ss 9.0 | 27-44-04-92 |
| ETIM 9.0 | EC002848 |
| ETIM 10.0 | EC002848 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
