Wago 231-633/129-000

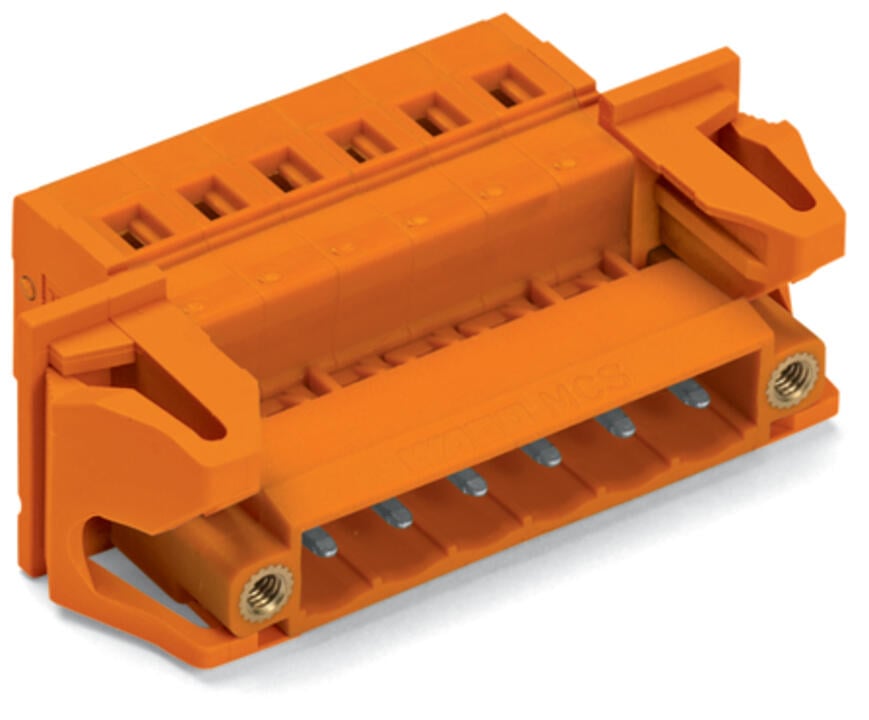

Male connector, 231 Series, with 5.08 mm pin spacingThis male connector (item number 231-633/129-000) simplifies electrical installations. Ensure that the strip lengths are between 8 and 9 mm  when co…

Request for Quote

Compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Male connector, 231 Series, with 5.08 mm pin spacingThis male connector (item number 231-633/129-000) simplifies electrical installations. Ensure that the strip lengths are between 8 and 9 mm  when connecting conductors to this male connector. This product incorporates one conductor terminal and utilizes CAGE CLAMP®. Our CAGE CLAMP® connection provides a reliable and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. The dimensions are (36.24 x 17.5 x 27.5) mm (width x height x depth). Depending on the type of conductor, this male connector is designed for conductor cross sections ranging from 0.08 mm² to 2.5 mm².The contact surface is coated with tin.

Specification

Notes

Safety InformationThe MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Variants:Other pole numbers, Gold-plated or partially gold-plated contact surfaces, Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

Electrical data - Ratings per IEC/EN

Ratings perIEC/EN 60664-1
Nominal voltage (III/3)320 V
Rated impulse withstand voltage (III / 3)4 kV
Rated voltage (III/2)320 V
Rated impulse withstand voltage (III/2)4 kV
Nominal voltage (II/2)630 V
Rated impulse withstand voltage (II/2)4 kV
Rated current12 A
Legend (ratings)(III / 2) ≙ Overvoltage category III / Pollution degree 2
Ratings perIEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage320 V / 320 V / 630 V
Rated impulse withstand voltage4 kV / 4 kV / 4 kV
Rated current12 A / 12 A / 12 A

Electrical data - Ratings per UL

Approvals perUL 1059
Rated voltage UL (Use Group B)300 V
Rated current UL (Use Group B)15 A
Rated voltage UL (Use Group D)300 V
Rated current UL (Use Group D)10 A
Approvals perUL 1059 / UL 1059 / UL 1059
Use groupB / C / D
Rated voltage300 V / 300 V
Rated current15 A / 10 A

Electrical data - Ratings per UL 1977

Rated voltage (UL 1977)600 V
Rated current UL 197715 A
Approvals perUL 1977
Rated voltage600 V
Rated current15 A

Electrical data - Ratings per CSA

Approvals perCSA
Rated voltage CSA (Use Group B)300 V
Rated current CSA (Use Group B)15 A
Rated voltage CSA (Use Group D)300 V
Rated current CSA (Use Group D)10 A
Approvals perCSA / CSA / CSA
Use groupB / C / D
Rated voltage300 V / 300 V
Rated current15 A / 10 A

Connection data

Clamping units3
Total number of potentials3
Number of connection types1
Number of levels1

Connection data - Connection 1

Connection technologyCAGE CLAMP®
Actuation typeOperating tool
Actuation direction 1Operation parallel to conductor entry
Actuation direction 2Operation perpendicular to conductor entry
Solid conductor0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor; with insulated ferrule0.25 … 1.5 mm²
Fine-stranded conductor; with uninsulated ferrule0.25 … 2.5 mm²
Strip length8 … 9 mm / 0.31 … 0.35 inches
Pole number3
Conductor entry direction to mating direction0 °

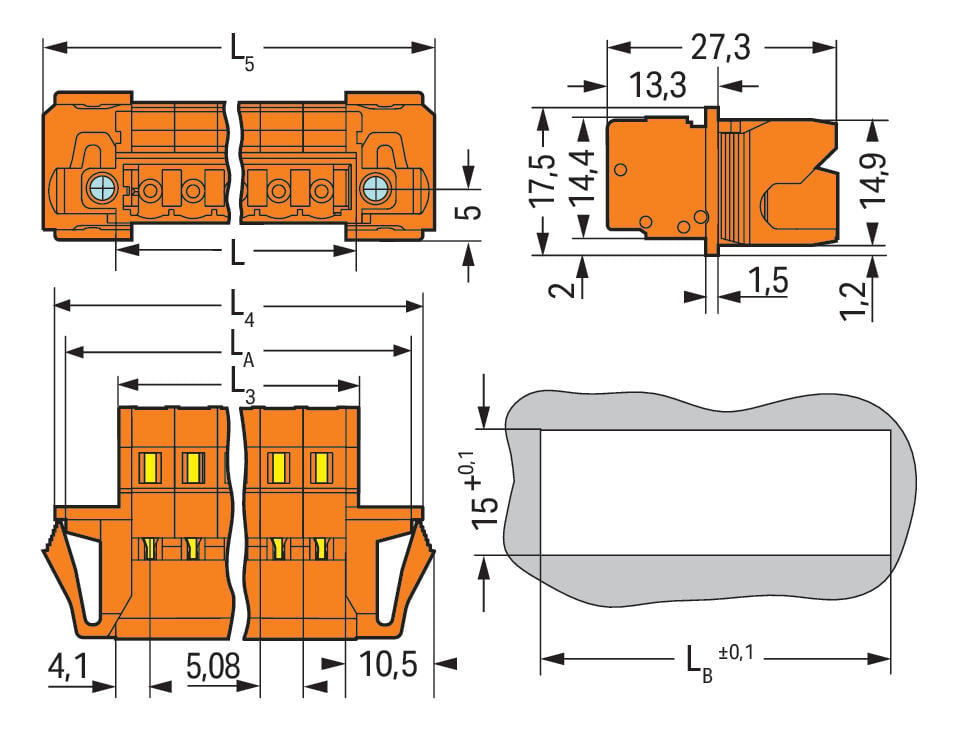

Physical data

Pin spacing5.08 mm / 0.2 inches
Width36.24 mm / 1.427 inches
Height17.5 mm / 0.689 inches
Depth27.5 mm / 1.083 inches

Mechanical data

Variable codingYes
Housing sheet thickness0.5 … 2.5 mm / 0.02 … 0.098 inches
Mounting typeSnap-in flange
Mounting typeFeed-through mounting
Anti-rotation protectionYes

Plug-in connection

Contact type (pluggable connector)Male connector/plug
Connector (connection type)for conductor
Mismating protectionNo
Plugging without loss of pin spacingNo
Locking of plug-in connectionThreaded flange

Material data

Note (material data)Information on material specifications can be found here
Colororange
Material groupI
Insulation material (main housing)Polyamide (PA66)
Flammability class per UL94V0
Clamping spring materialChrome-nickel spring steel (CrNi)
Contact materialElectrolytic copper (ECu)
Contact platingTin
Fire load0.158 MJ
Weight7.8 g

Environmental requirements

Limit temperature range-60 … +100 °C
Processing temperature-35 … +60 °C

Commercial data

Product Group3 (Multi Conn. System)
PU (SPU)50 pcs
Packaging typebox
Country of originDE
GTIN4050821279983
Customs tariff number85366930000

Product Classification

UNSPSC39121409
eCl@ss 10.027-44-03-09
eCl@ss 9.027-44-03-09
ETIM 9.0EC002638
ETIM 10.0EC002638
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,With Exemption
RoHS Exemption6(c)
SCIP notification number (Austria)2adc3521-047e-42c1-9069-7afa5c2d1dd0
SCIP notification number (Belgium)aca2d6a6-0609-473b-a514-317e8dedc744
