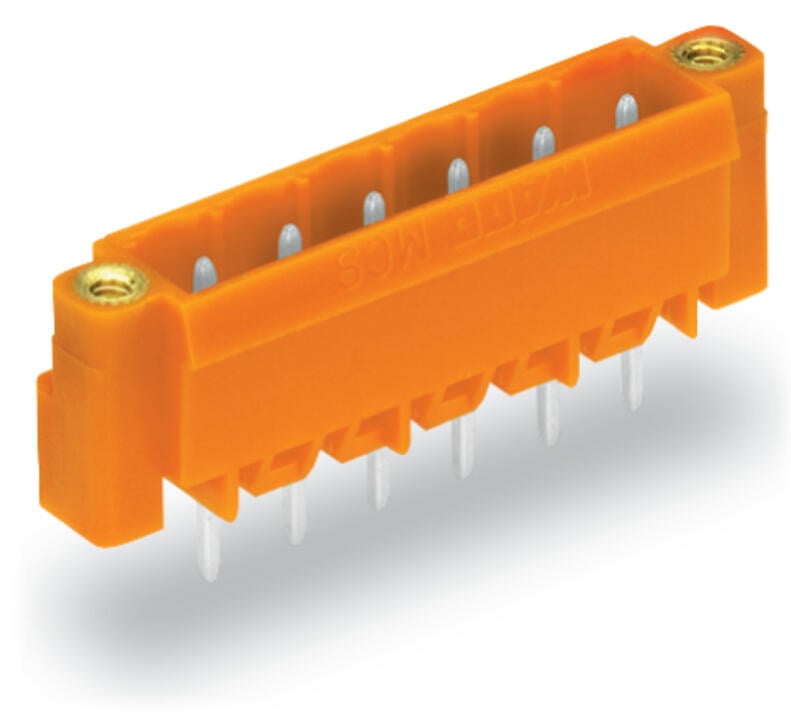

Male connector, 231 Series, solder pin dimensions 1.2 x 1.2 mmOur male connector (item number 231-375/108-000) simplifies electrical installations. The item’s dimensions are (86.2 x 17 x 8.4) mm (width x height x depth).Tin is used for coating the contact surfaces. The pcb connector is designed for THT soldering.

Specification

Notes

Safety InformationThe MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Variants:Other pole numbers, 3.8 mm pin projection for male headers with straight solder pins, Gold-plated or partially gold-plated contact surfaces, Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

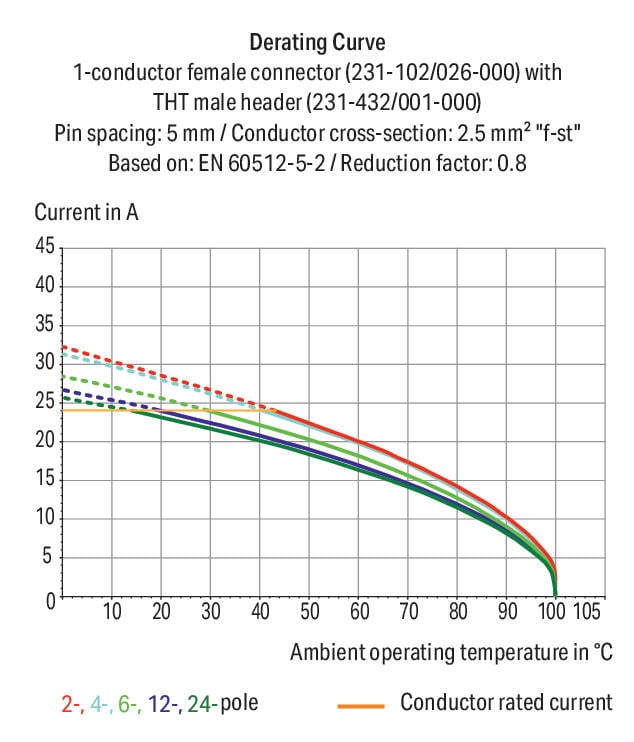

Electrical data - Ratings per IEC/EN

Ratings perIEC/EN 60664-1
Nominal voltage (III/3)250 V
Rated impulse withstand voltage (III / 3)4 kV
Rated voltage (III/2)320 V
Rated impulse withstand voltage (III/2)4 kV
Nominal voltage (II/2)630 V
Rated impulse withstand voltage (II/2)4 kV
Rated current16 A
Legend (ratings)(III / 2) ≙ Overvoltage category III / Pollution degree 2
Ratings perIEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage250 V / 320 V / 630 V
Rated impulse withstand voltage4 kV / 4 kV / 4 kV
Rated current16 A / 16 A / 16 A

Electrical data - Ratings per UL

Approvals perUL 1059
Rated voltage UL (Use Group B)300 V
Rated current UL (Use Group B)15 A
Rated voltage UL (Use Group D)300 V
Rated current UL (Use Group D)10 A
Approvals perUL 1059 / UL 1059 / UL 1059
Use groupB / C / D
Rated voltage300 V / 300 V
Rated current15 A / 10 A

Electrical data - Ratings per UL 1977

Rated voltage (UL 1977)600 V
Rated current UL 197715 A
Approvals perUL 1977
Rated voltage600 V
Rated current15 A

Electrical data - Ratings per CSA

Approvals perCSA
Rated voltage CSA (Use Group B)300 V
Rated current CSA (Use Group B)15 A
Rated voltage CSA (Use Group D)300 V
Rated current CSA (Use Group D)10 A
Approvals perCSA / CSA / CSA
Use groupB / C / D
Rated voltage300 V / 300 V
Rated current15 A / 10 A

Connection data

Total number of potentials15
Number of connection types1
Number of levels1

Connection data - Connection 1

Pole number15

Physical data

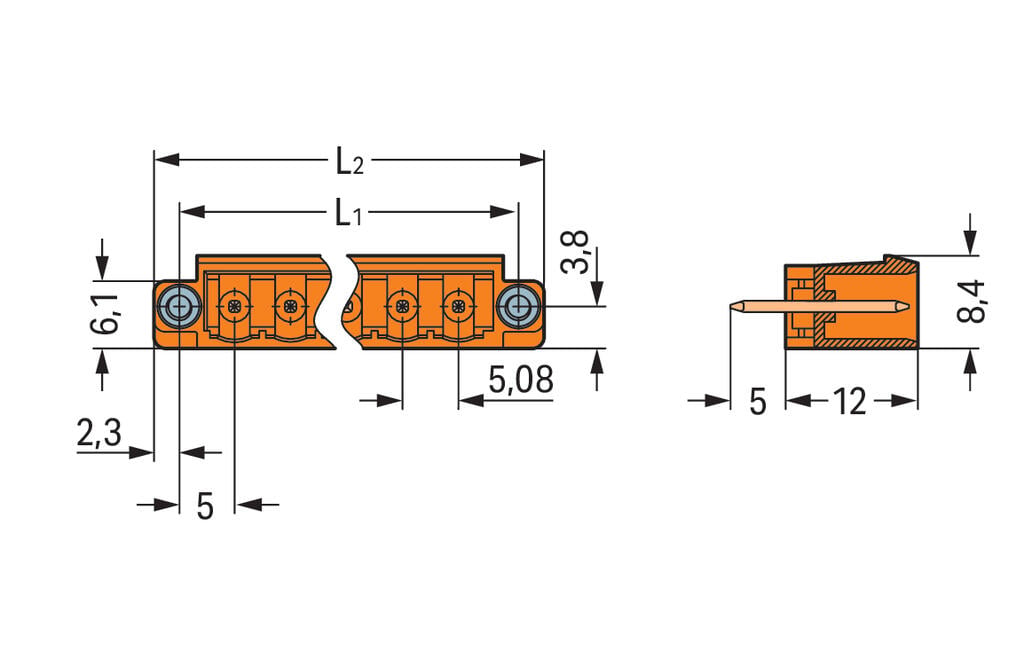

Pin spacing5.08 mm / 0.2 inches
Width86.2 mm / 3.394 inches
Height17 mm / 0.669 inches
Height from the surface12 mm / 0.472 inches
Depth8.4 mm / 0.331 inches
Solder pin length5 mm
Solder pin dimensions1.2 x 1.2 mm
Drilled hole diameter with tolerance1.7 (+0.1) mm

Mechanical data

Variable codingYes
Anti-rotation protectionYes

Plug-in connection

Contact type (pluggable connector)Male connector/plug
Connector (connection type)for PCB
Mismating protectionNo
Plugging without loss of pin spacingNo
Mating direction to the PCB90 °
Locking of plug-in connectionThreaded flange

PCB contact

PCB contactTHT
Solder pin arrangementover the entire male connector (in-line)
Number of solder pins per potential1

Material data

Note (material data)Information on material specifications can be found here
Colororange
Material groupI
Insulation material (main housing)Polyamide (PA66)
Flammability class per UL94V0
Contact materialElectrolytic copper (ECu)
Contact platingTin
Fire load0.099 MJ
Weight6.5 g

Environmental requirements

Limit temperature range-60 … +100 °C
Processing temperature-35 … +60 °C

Commercial data

Product Group3 (Multi Conn. System)
PU (SPU)50 pcs
Packaging typebox
Country of originPL
GTIN4045454845803
Customs tariff number85366930000

Product Classification

UNSPSC39121409
eCl@ss 10.027-44-04-02
eCl@ss 9.027-44-04-02
ETIM 9.0EC002637
ETIM 10.0EC002637
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,With Exemption
RoHS Exemption6(c)
