Federleiste/Buchse Serie 231, grauBei dieser Federleiste/Buchse mit der Artikelnummer 231-208/037-000 ist eine saubere Elektroinstallation der Fokus. Unsere Leiterplatten-Steckverbinder geben Ihnen di…

Request for Quote

Compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

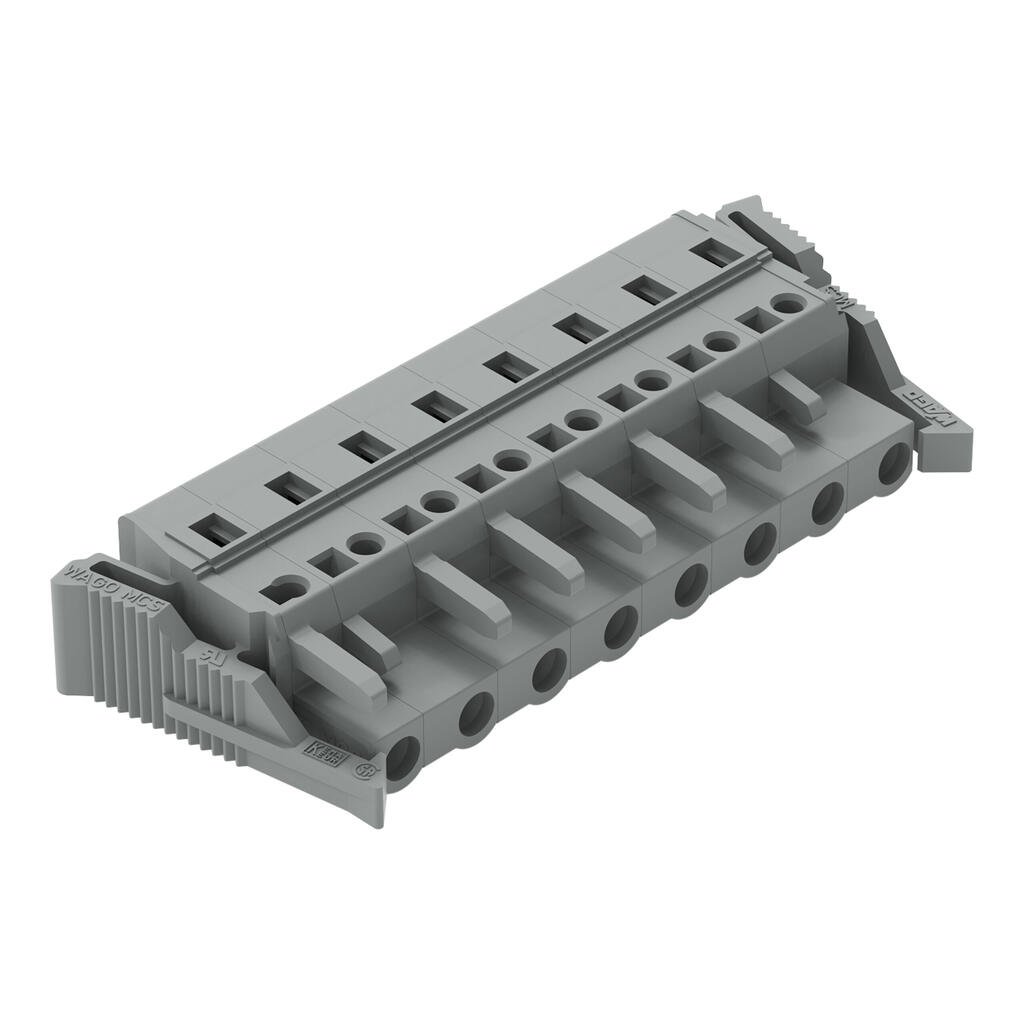

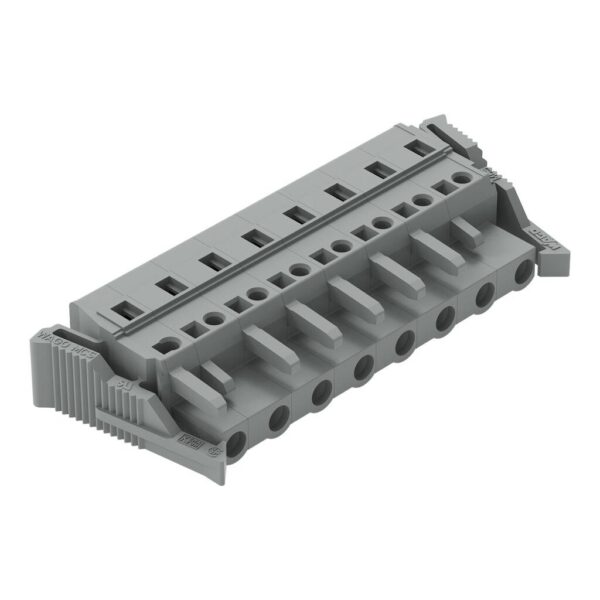

Federleiste/Buchse Serie 231, grauBei dieser Federleiste/Buchse mit der Artikelnummer 231-208/037-000 ist eine saubere Elektroinstallation der Fokus. Unsere Leiterplatten-Steckverbinder geben Ihnen die größtmögliche Flexibilität bei unterschiedlichen Montagearten. Bei dieser Federleiste/Buchse ist für den Leiteranschluss eine Abisolierlänge im Bereich von 8 bis 9 mm  nötig. Dieses Produkt ist mit der CAGE CLAMP®-Technologie ausgerüstet. Der zuverlässige und wartungsfreie CAGE CLAMP® Universalanschluss bietet die Möglichkeit, alle Arten von Leitern mit einer Käfigzugfeder anzuschließen, ohne, dass eine Vorbehandlung der Leiter erforderlich ist. Das Aufcrimpen von Aderendhülsen kann somit entfallen. Die Maße sind in Breite x Höhe x Tiefe (74,1 x 14,3 x 29,6) mm. Diese Federleiste/Buchse ist in Abhängigkeit von der Leiterart für Leiterquerschnitte von 0,08 mm² bis 2,5 mm² geeignet.CAGE CLAMP® – der Industriestandard für Anschluss- und VerbindungstechnikFür die Oberfläche der Kontakte wurde Zinn verwendet. Für diese Federleiste/Buchse erfolgt die Betätigung per Betätigungswerkzeug. Das MCS – “Multi Connection System” von WAGO umfasst insgesamt 7 Familien in den Rastermaßen 2,5 mm bis 10,16 mm und bietet mit dem Leiterquerschnittsbereich von 0,08 bis 25 mm2 ein großes Portfolio an Einsatzmöglichkeiten. Betätigung über BetätigungswerkzeugRastermaß: 7,5 mmLeiteranschlussrichtung zur Leiterplatte: 0 °dauerhaft sichere VerbindungenKompakte Baugrößen

Specification

Notes

Safety InformationThe MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
Variants:Gold-plated or partially gold-plated contact surfaces, Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

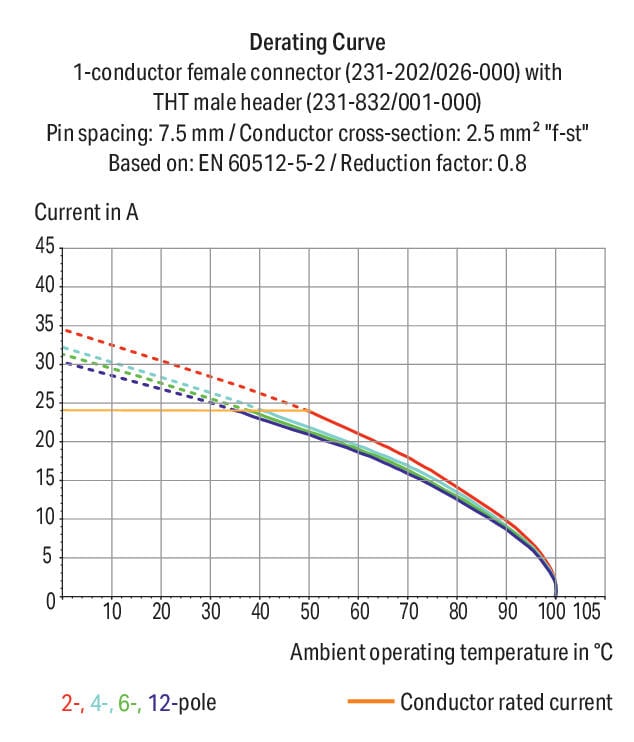

Electrical data - Ratings per IEC/EN

Ratings perIEC/EN 60664-1
Nominal voltage (III/3)500 V
Rated impulse withstand voltage (III / 3)6 kV
Rated voltage (III/2)630 V
Rated impulse withstand voltage (III/2)6 kV
Nominal voltage (II/2)1000 V
Rated impulse withstand voltage (II/2)6 kV
Rated current16 A
Legend (ratings)(III / 2) ≙ Overvoltage category III / Pollution degree 2
Ratings perIEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage500 V / 630 V / 1000 V
Rated impulse withstand voltage6 kV / 6 kV / 6 kV
Rated current16 A / 16 A / 16 A

Electrical data - Ratings per UL

Approvals perUL 1059
Rated voltage UL (Use Group B)300 V
Rated current UL (Use Group B)15 A
Rated voltage UL (Use Group D)300 V
Rated current UL (Use Group D)10 A
Approvals perUL 1059 / UL 1059 / UL 1059
Use groupB / C / D
Rated voltage300 V / 300 V
Rated current15 A / 10 A

Electrical data - Ratings per UL 1977

Rated voltage (UL 1977)600 V
Rated current UL 197715 A
Approvals perUL 1977
Rated voltage600 V
Rated current15 A

Electrical data - Ratings per CSA

Approvals perCSA
Rated voltage CSA (Use Group B)300 V
Rated current CSA (Use Group B)15 A
Rated voltage CSA (Use Group D)300 V
Rated current CSA (Use Group D)10 A
Approvals perCSA / CSA / CSA
Use groupB / C / D
Rated voltage300 V / 300 V
Rated current15 A / 10 A

Connection data

Clamping units8
Total number of potentials8
Number of connection types1
Number of levels1

Connection data - Connection 1

Connection technologyCAGE CLAMP®
Actuation typeOperating tool
Actuation direction 1Operation parallel to conductor entry
Actuation direction 2Operation perpendicular to conductor entry
Solid conductor0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor; with insulated ferrule0.25 … 1.5 mm²
Fine-stranded conductor; with uninsulated ferrule0.25 … 2.5 mm²
Strip length8 … 9 mm / 0.31 … 0.35 inches
Pole number8
Conductor entry direction to mating direction0 °

Physical data

Pin spacing7.5 mm / 0.295 inches

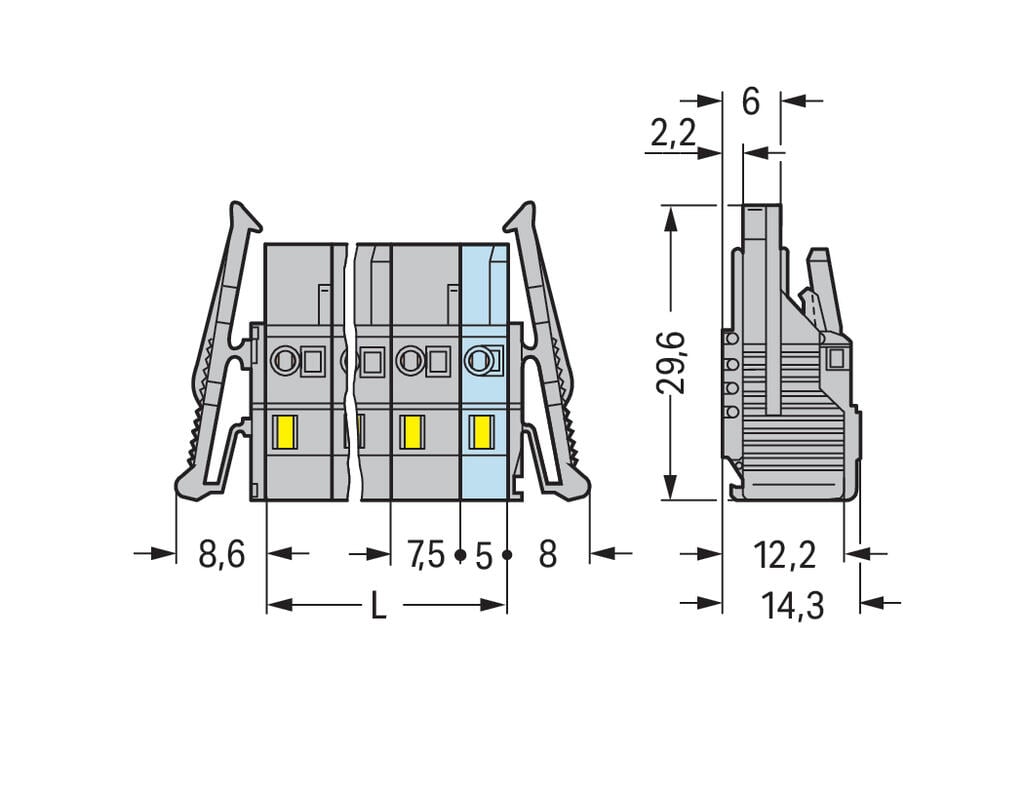

Width74.1 mm / 2.917 inches
Height14.3 mm / 0.563 inches
Depth29.6 mm / 1.165 inches

Mechanical data

Variable codingYes
Anti-rotation protectionYes

Plug-in connection

Contact type (pluggable connector)Female connector/socket
Connector (connection type)for conductor
Mismating protectionNo
Plugging without loss of pin spacingNo
Locking of plug-in connectionlocking lever

Material data

Note (material data)Information on material specifications can be found here
Colorgray
Material groupI
Insulation material (main housing)Polyamide (PA66)
Flammability class per UL94V0
Clamping spring materialChrome-nickel spring steel (CrNi)
Contact materialCopper alloy
Contact platingTin
Fire load0.315 MJ
Weight18 g

Environmental requirements

Limit temperature range-60 … +100 °C
Processing temperature-35 … +60 °C

Environmental requirements - Environmental Testing

Test specification: <br/>Railway applications –<br/>Rolling stock –<br/>Electronic equipmentDIN EN 50155 (VDE 0115-200):2022-06
Test procedure: <br/>Railway applications – <br/>Rolling stock equipment – <br/>Vibration and shock testsDIN EN 61373 (VDE 0115-0106):2011-04
Spectrum/Mounting locationService life test, Category 1, Class A/B
Functional test with noise-like oscillationsTest passed according to Section 8 of the standard
Frequencyf1 = 5 Hz to f2 = 150 Hz
Acceleration0.101g (highest test level used for all axes)
Test duration per axis10 min.
Test directionsX, Y and Z axes
Monitoring of contact faults and interruptionsPassed
Voltage drop measurement before and after each axisPassed
Simulated service life test through increased levels of noise-like oscillationsTest passed according to Section 9 of the standard
Frequencyf1 = 5 Hz to f2 = 150 Hz
Acceleration0.572g (highest test level used for all axes)
Test duration per axis5 h
Test directionsX, Y and Z axes
Extended testing: Monitoring of contact faults and interruptionsPassed
Extended testing: Voltage drop measurement before and after each axisPassed
Shock testTest passed according to Section 10 of the standard
Shock pulse formHalf sine
Acceleration5g (highest test level used for all axes)
Shock duration30 ms
Number of shocks (per axis)3 pos. und 3 neg.
Test directionsX, Y and Z axes
Extended testing: Monitoring of contact faults and interruptionsPassed
Extended testing: Voltage drop measurement before and after each axisPassed
Vibration and shock stress for rolling stock equipmentPassed

Commercial data

Product Group3 (Multi Conn. System)
PU (SPU)25 pcs
Packaging typebox
Country of originDE
GTIN4044918367295
Customs tariff number85366990990

Product Classification

UNSPSC39121409
eCl@ss 10.027-44-03-09
eCl@ss 9.027-44-03-09
ETIM 9.0EC002638
ETIM 10.0EC002638
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,No Exemption
