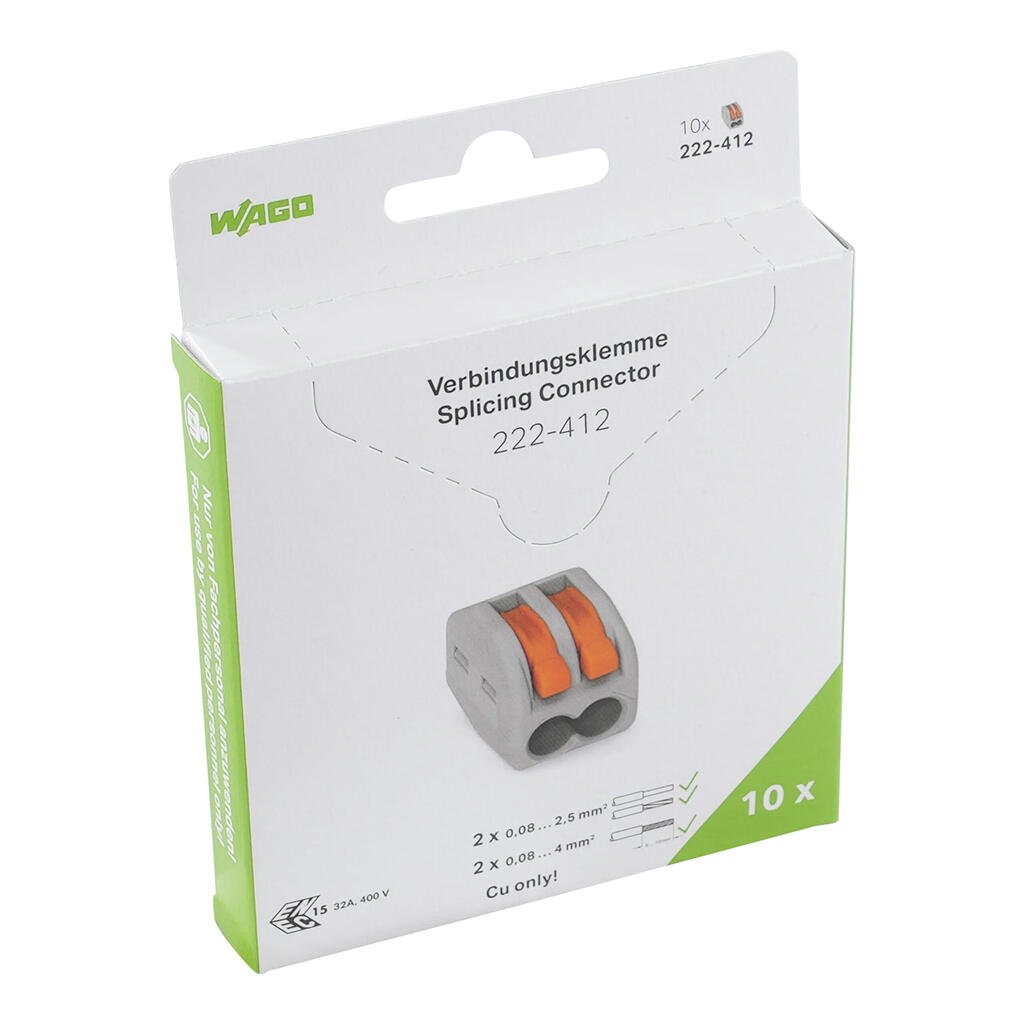

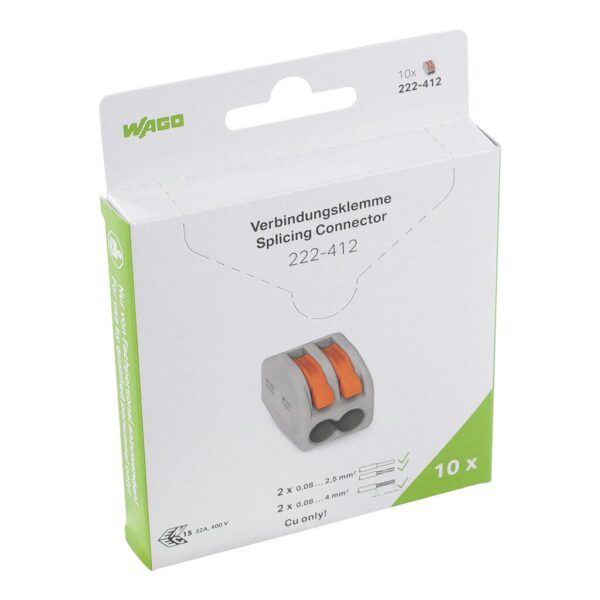

Wago 222-412/995-010

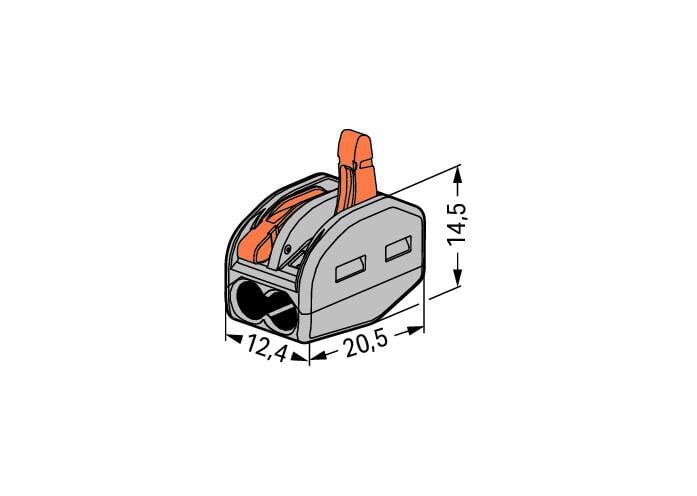

Splicing connector with levers, 222 Series, CAGE CLAMP®Our splicing connector with levers (item number 222-412/995-010) simplifies electrical installations. From intercom system wiring to electric ovens—connecting various conductor types is quick and hassle-free with WAGO’s compact 222 Series splicing connector. Conductors can only be connected to splicing connector with levers if their strip length is between 9 and 10 mm . Our splicing connector is rated for 400 V and is designed for use with a rated current of up to 32 A. It can therefore be used in high-load applications. Featuring conductor terminals along with CAGE CLAMP®, this connector outperforms the competition. Our CAGE CLAMP® connection provides a secure and maintenance-free way to connect all types of conductors. You do not need to prepare the conductor in any way, such as crimping ferrules. Dimensions: (12.4 x 14.5 x 20.5) mm (width x height x depth). Splicing connector with levers is suitable for conductor cross sections ranging from 0.08 mm² to 2.5 mm².WAGO’s 221 Series Splicing Connector with levers impresses with its innovative design for different conductor cross-sections. That’s why WAGO’s lever-equipped splicing connector holds a unique trademark within electrical interconnection technology. The flat levers, which fit seamlessly into the 221’s base, act like a cast when closed and can be positioned neatly in any housing without disturbing edges. Due to the wide design of each leaver, they can all be operated perfectly without tools for convenient conductor terminations. The transparent housing displays robust technology and enables immediate visual inspection for the correct contact of solid, stranded and fine-stranded conductors. Resembling piano keys, the levers’ design perfectly combines the functional and aesthetic connection technology “Made by WAGO.”
